Belden 85168 368, Multi Pair Cable 8 Pair 20 AWG ETFE Jacket
SKU:Belden 85168 368
● In stock
Description

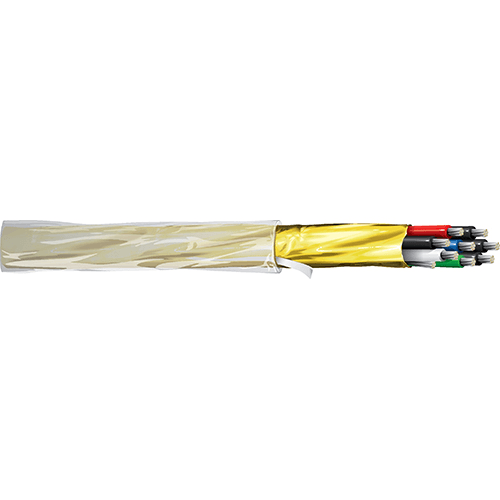

Belden 85168 368 is a high temperature electronic multi pair cable designed for extreme high/low temperature environments where chemical resistance and reliable signal integrity are required. It is an 8 pair 20 AWG (7x28) tinned copper cable with ETFE insulation, an overall Beldfoil® shield, and an ETFE outer jacket. Designed for low voltage analog signals (4-20ma, 0-10v, ...) and low voltage control (24v, …), it supports instrumentation applications. It has a 300 V RMS voltage rating.
Belden 85168 368 Key Features
- 8 pair 20 AWG (7x28) tinned copper stranded conductors support multi-pair signal and control wiring.
- ETFE insulation and an ETFE outer jacket support use in extreme high/low temperature environments and chemical resistant installations.
- Overall Beldfoil® shield with 100% coverage and drain supports noise rejection and signal integrity.
- 300 V RMS voltage rating supports low voltage analog signals (4-20ma, 0-10v, ...) and low voltage control (24v, …).
Belden 85168 368 Applications
- Use it in extreme high/low temperature environments where stable operation is required.
- Choose it for chemical resistant installations where exposure to chemicals is a concern.
- Apply it to low voltage analog signals (4-20ma, 0-10v, ...) in signal transmission and monitoring circuits.
- Rely on it for low voltage control (24v, …) in control wiring for industrial systems.
- Specify it for instrumentation applications where reliable signal integrity is required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor count | 8 PAIRS |
| Conductor size | 20 AWG (American Wire Gauge) |
| Stranding | 7x28 |
| Conductor Material | TC - Tinned Copper |
| Conductor Type | Stranded Conductor |
| Insulation Material | ETFE - Ethylene Tetrafluoroethylene |
| Insulation nominal thickness | 0.015 in (0.38 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White |
| Outer jacket material | ETFE - Ethylene Tetrafluoroethylene |
| Outer jacket nominal thickness | 0.025 in (0.64 mm) |
| Outer jacket nominal diameter | 0.439 in |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Kapton®) |
| Shield construction | Overall Shield & drain |
| Nom. conductor DCR | 9.3 Ohm/1000ft (31 Ohm/km) |
| Nom. capacitance cond-to-cond | 23 pF/ft (75 pF/m) |
| Nom. capacitance (Cond-to-other) | 40 pF/ft (130 pF/m) |
| Nom. characteristic impedence | 73 Ohm |
| Nom. inductance | 0.186 µH/ft (0.610 µH/m) |
| Max. current | 4 Amps per Conductor at 25ºC |
| UL temperature | 150°C |
| Operating temperature | -60°C To +150°C |
| Max Pull Tension | 224 lbs (102 kg) |
| Bulk cable weight | 115 lbs/1000ft (171 kg/km) |
| Fire rating | General Purpose |
| NEC rating | Not listed by UL under NEC |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 85168 368, 85168 368100, 85168 368250, 85168 368500, 85168 3681000, UPC 612825210641 |
| Priced Per | FT |
