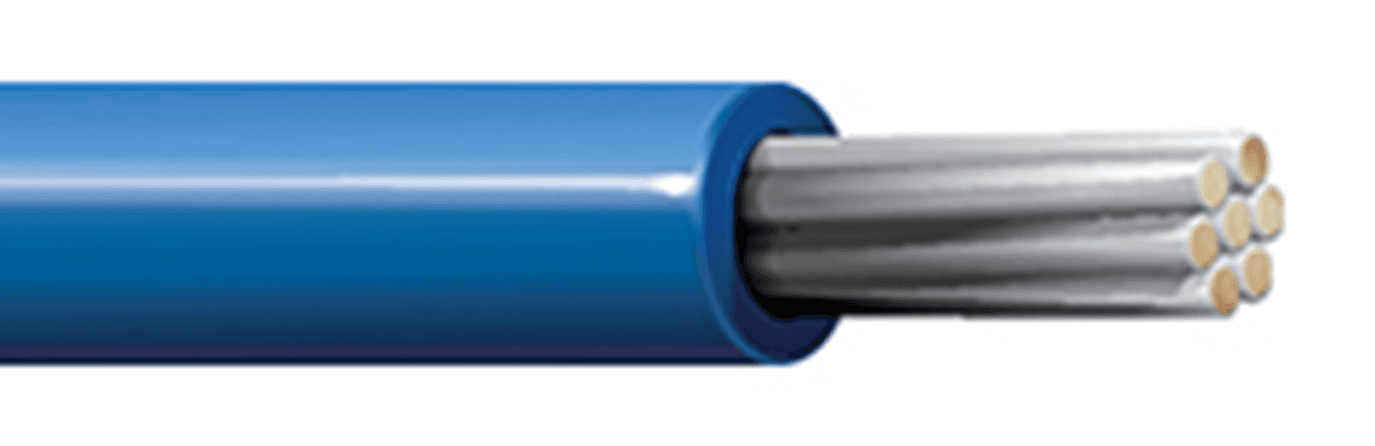

Belden 8520 006, Hook Up Wire 1C 14 AWG Tinned Copper PVC, Blue Jacket
Description
Belden 8520 006 is a low temp plastic lead wire for inter-connection circuits and internal wiring of computer and electronic equipments, including (Type MW) MIL-W-76C-Low Temp applications. It features a 14 AWG (41x30) TC - Tinned Copper conductor with medium wall PVC - Polyvinyl Chloride insulation in Blue. This wire is rated 1000 V RMS and 80 Degrees Centigrade (176 F). The extruded PVC insulation is flame and ozone resistant and is inert to most chemicals, oils, and solvents.
Belden 8520 006 Applications
- Supports inter-connection circuits where a low temp plastic lead wire is needed to link internal electrical points.
- Used for internal wiring of computer and electronic equipments to route connections within equipment assemblies.
- Meets (Type MW) MIL-W-76C-Low Temp applications where this type designation is required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Wire type | low temp plastic lead wire |
| Product type | MW-76 |
| Conductor size | 14 AWG (American Wire Gauge) |
| Stranding | 41x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation wall | Medium wall PVC insulation |
| Color | Blue |
| Shielded | Not Shielded |
| Nom. thickness | 0.019 in (0.48 mm) |
| Nom. insulation diameter | 0.111 in (2.82 mm) |
| Overall cable diameter (nominal) | 0.111 in (2.82 mm) |
| Bulk cable weight | 16 lbs/1000ft (24 kg/km) |
| UL Voltage Rating | 1000 V RMS |
| Temperature rating | 80 Degrees Centigrade (176 F) |
| Type | TYPE MW MIL-W-76C-PVC 1000V 80C |
| Military compliance | MIL-W-76C Type MWP |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| Sustainability | CA Prop 65 |
| RoHS Compliant | Yes |
| Item Type | Belden Lead Wire & Hook-Up Wire |
| Other Part Numbers | 8520 006, 8520 006100, 8520 006250, 8520 006500, 8520 0061000, UPC 612825210733, UPC 612825210740 |
| Priced Per | FT |
