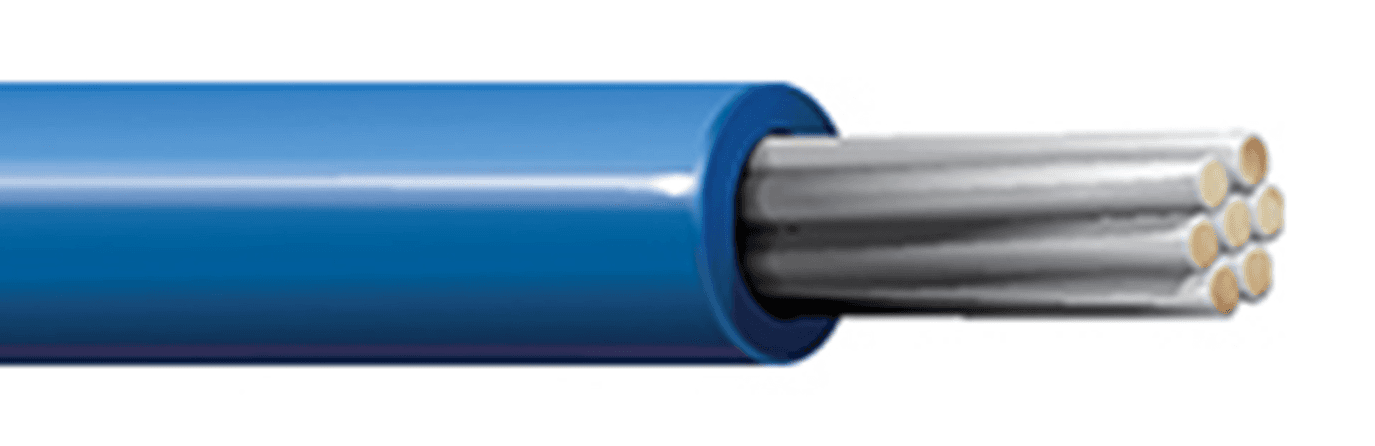

Belden 8520 009, Hook Up Wire 1C 14 AWG Tinned Copper PVC, White Jacket
Description
Belden 8520 009 is a low temp plastic lead wire for inter-connection circuits and internal wiring of computer and electronic equipment. It features a 14 AWG (41x30) TC - Tinned Copper conductor with PVC - Polyvinyl Chloride insulation in White. This wire is rated 1000 V RMS and 80C and is identified as TYPE MW MIL-W-76C-PVC 1000V 80C.
Belden 8520 009 Applications
- Use it for inter-connection circuits where reliable internal wiring is required.
- Support internal wiring of computer and electronic equipment in controlled, equipment-level environments.
- Specify it for (Type MW) MIL-W-76C-Low Temp applications where this designation is required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor size | 14 |
| Stranding | 41x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Color | White |
| Material properties | Extruded PVC insulation is flame and ozone resistant; inert to most chemicals, oils, and solvents |
| Type | TYPE MW MIL-W-76C-PVC 1000V 80C |
| Nom. thickness | 0.019 in (0.48 mm) |
| Nom. insulation diameter | 0.111 in (2.82 mm) |
| Overall cable diameter (nominal) | 0.111 in (2.82 mm) |
| Bulk cable weight | 16 lbs/1000ft (24 kg/km) |
| UL Voltage Rating | 1000 V RMS |
| Temperature rating | 80C |
| Military compliance | MIL-W-76C Type MWP |
| Sustainability | CA Prop 65 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| Item Type | Belden Lead Wire & Hook-Up Wire |
| Other Part Numbers | 8520 009, 8520 009100, 8520 009250, 8520 009500, 8520 0091000, UPC 612825210764, UPC 612825210771 |
| Priced Per | FT |
