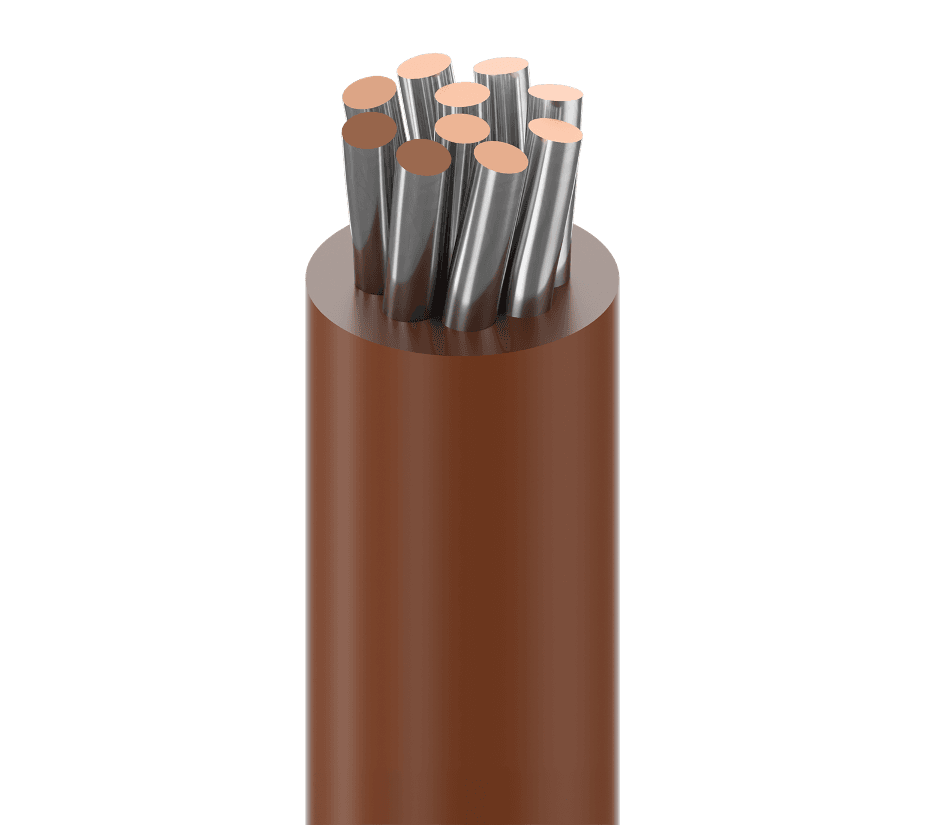

Belden 8523 001, Hook Up Wire 1C 20 AWG Tinned Copper PVC
Description
Belden 8523 001 is a low temp plastic lead wire for inter-connection circuits and the internal wiring of computer and electronic equipments. It is a 1-conductor 20 AWG (10x30) TC - Tinned Copper conductor with medium wall PVC - Polyvinyl Chloride insulation in Brown. This wire is rated TYPE MW MIL-W-76C-PVC 1000V 80C with a voltage rating of 1000 V RMS. It is not shielded and uses extruded PVC insulation that is flame and ozone resistant and inert to most chemicals, oils, and solvents.
Belden 8523 001 Key Features
- 1-conductor 20 AWG (10x30) TC - Tinned Copper construction for internal wiring and inter-connection circuits.
- Medium wall PVC - Polyvinyl Chloride insulation in Brown for durable, flexible routing.
- Rated TYPE MW MIL-W-76C-PVC 1000V 80C with a voltage rating of 1000 V RMS.
- Not shielded design for single conductor hook-up wire applications.
- PVC insulation is flame and ozone resistant and inert to most chemicals, oils, and solvents.
Applications
- Supports inter-connection circuits requiring a low temp plastic lead wire.
- Used for the internal wiring of computer and electronic equipments.
- Meets (Type MW) MIL-W-76C-Low Temp applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | MW-76 |
| Military compliance | MIL-W-76C Type MWP |
| Insulation thickness (nom.) | 0.017 in (0.43 mm) |
| Insulation diameter (nom.) | 0.07 in (1.8 mm) |
| Overall cable diameter (nom.) | 0.070 in (1.8 mm) |
| Bulk cable weight | 5 lbs/1000ft |
| Nom. conductor DCR | 9.85 Ohm/1000ft |
| Max. current | Single conductor in free air @ 30ºC: 12.0 A |
| UL temperature | 80°C |
| Operating temperature | -40°C To +80°C |
| Bend radius (stationary min.) | 0.07 in (1.8 mm) |
| Bend radius (installation min.) | 0.07 in (1.8 mm) |
| Max Pull Tension | 13 lbs (5.9 kg) |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| Sustainability | CA Prop 65 |
| Environmental suitability | Outdoor |
| RoHS Compliant | Yes |
| Priced Per | FT |
