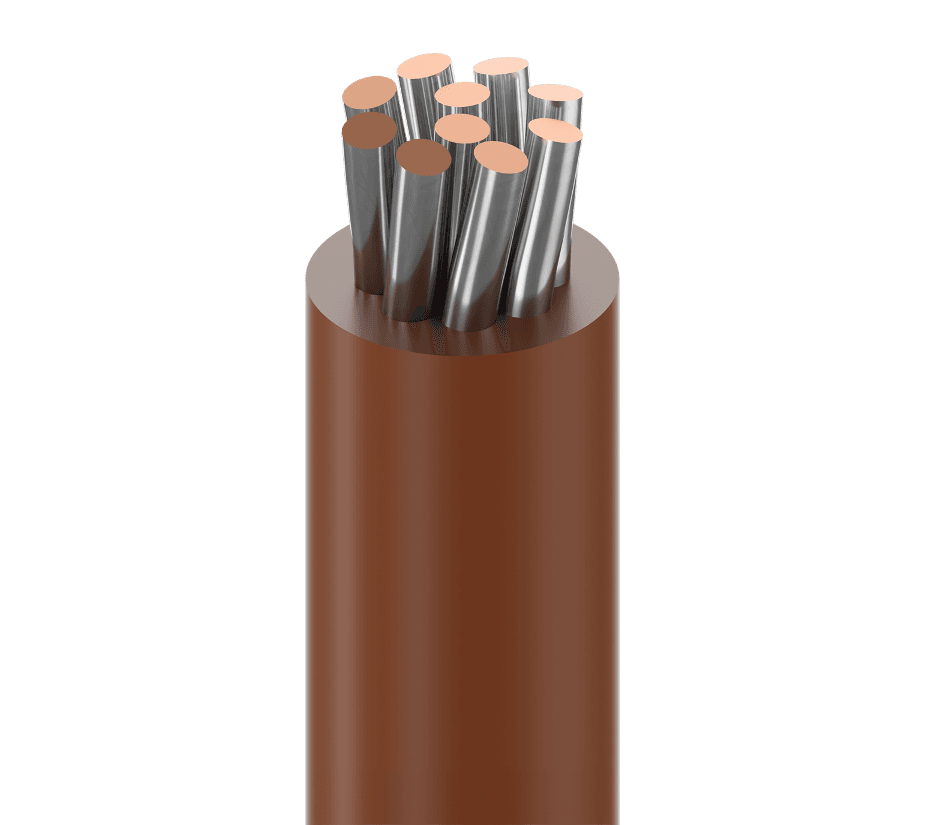

Belden 8523 003, Hook Up Wire 1C 20 AWG Tinned Copper PVC

Belden 8523 003 is a low temp plastic lead wire for inter-connection circuits and internal wiring of computer and electronic equipments, including (Type MW) MIL-W-76C-Low Temp applications. It is a 1-conductor 20 AWG (10x30) TC - Tinned Copper wire with PVC - Polyvinyl Chloride insulation. This wire is rated 1000 V RMS and 80°C, and supports Single Conductor in free air @ 30ºC: 12.0 A. The extruded PVC insulation is flame and ozone resistant and is inert to most chemicals, oils, and solvents.

Belden 8523 003 Key Features

• 1-conductor 20 AWG (10x30) TC - Tinned Copper construction for inter-connection circuits and internal wiring.
• 1000 V RMS voltage rating for electrical performance requirements.
• UL temperature: 80°C, with Operating: -40°C To +80°C.
• Extruded PVC insulation is flame and ozone resistant and is inert to most chemicals, oils, and solvents.
• Compliance and directives listed: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE); RoHS compliant: Yes; Sustainability: CA Prop 65.

Belden 8523 003 Applications

• Use in inter-connection circuits where a low temp plastic lead wire is specified.
• Support internal wiring of computer and electronic equipments.
• Meet (Type MW) MIL-W-76C-Low Temp applications.
