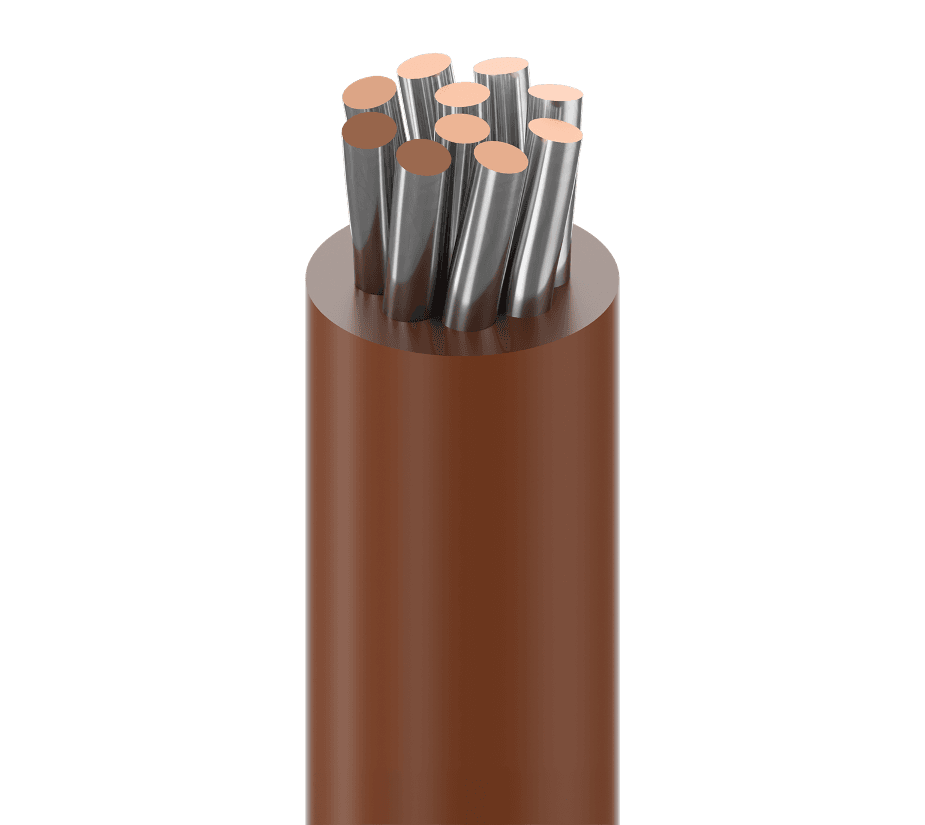

Belden 8523 007, Hook Up Wire 1C 20 AWG Tinned Copper PVC
Description
Belden 8523 007 is a low temp plastic lead wire designed for dependable internal wiring in electrical and electronic equipment. It is a 1-conductor 20 AWG (10x30) TC - Tinned Copper wire with PVC - Polyvinyl Chloride insulation in Violet (Purple). This wire is rated 1000 V RMS and 80°C, and supports Single Conductor in free air @ 30ºC up to 12.0 A. It is Not Shielded and is specified as TYPE MW MIL-W-76C-PVC 1000V 80C.
Belden 8523 007 Key Features
- 1-conductor 20 AWG (10x30) TC - Tinned Copper construction for internal wiring and inter-connection circuits.
- PVC - Polyvinyl Chloride insulation with Violet (Purple) color identification.
- Electrical ratings include 1000 V RMS and UL temperature: 80°C.
- Current capability listed as Single Conductor in free air @ 30ºC: 12.0 A.
- PVC insulation is flame and ozone resistant and is inert to most chemicals, oils, and solvents.
- Compliance and markings include TYPE MW MIL-W-76C-PVC 1000V 80C and MIL-W-76C Type MWP.
Applications
- Use it in inter-connection circuits where dependable internal wiring is required.
- It supports internal wiring of computer and electronic equipments in electrical and electronic equipment.
- Specify it for (Type MW) MIL-W-76C-Low Temp applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | MW-76 |
| Shielding | Not Shielded |
| Number of Conductors | 1 |
| Conductor size | 20 AWG |
| Stranding | 10x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Color | Violet (Purple) |
| Nom. thickness | 0.017 in (0.43 mm) |
| Nom. insulation diameter | 0.07 in (1.8 mm) |
| Overall cable diameter (nominal) | 0.070 in (1.8 mm) |
| Bulk cable weight | 5 lbs/1000ft |
| Nom. conductor DCR | 9.85 Ohm/1000ft |
| Operating | -40°C To +80°C |
| Bend radius (stationary min.) | 0.07 in (1.8 mm) |
| Bend radius (installation min.) | 0.07 in (1.8 mm) |
| Max Pull Tension | 13 lbs (5.9 kg) |
| Environmental suitability | Outdoor |
| Military compliance | MIL-W-76C Type MWP |
| Mil spec | MIL-W-76 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| RoHS Compliant | Yes |
| Sustainability | CA Prop 65 |
| Priced Per | FT |
