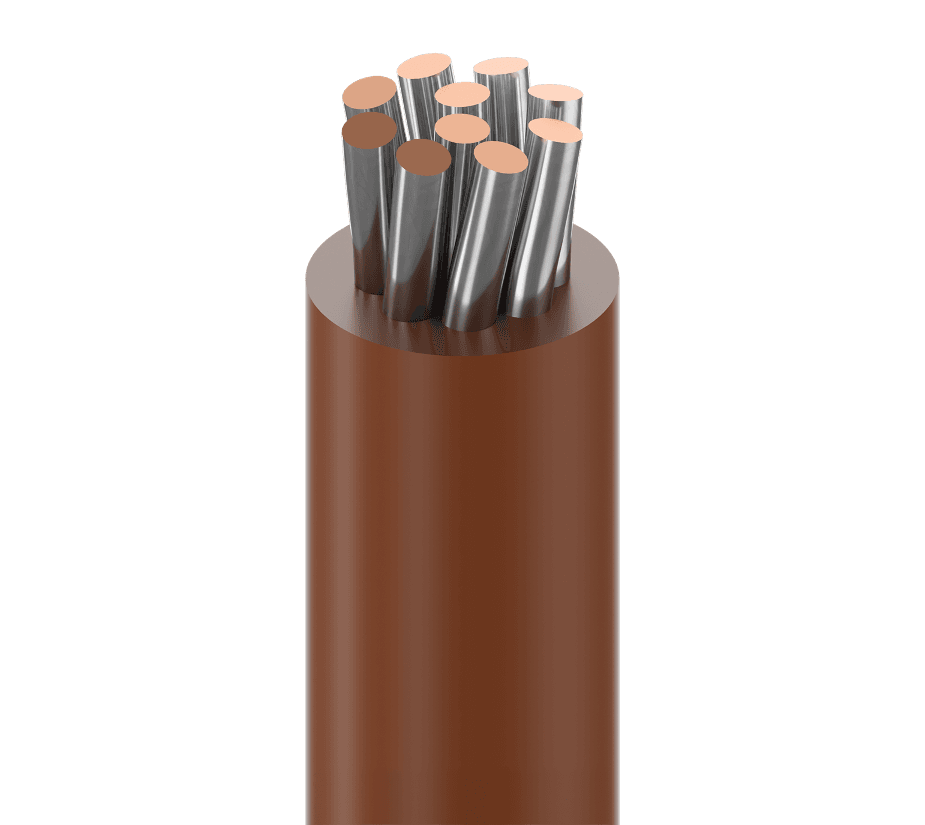

Belden 8523 008, Hook Up Wire 1C 20 AWG Tinned Copper PVC

Belden 8523 008 is a low temp plastic lead wire for inter-connection circuits and internal wiring of computer and electronic equipments, including (Type MW) MIL-W-76C-Low Temp applications. It is a 1-conductor 20 AWG (10x30) TC - Tinned Copper wire with PVC - Polyvinyl Chloride insulation. This wire is rated 1000 V RMS and 80°C, with max. current listed as Single Conductor in free air @ 30ºC: 12.0 A. The extruded PVC insulation is flame and ozone resistant and inert to most chemicals, oils, and solvents.

Belden 8523 008 Key Features

• 1-conductor 20 AWG (10x30) TC - Tinned Copper construction for internal wiring and inter-connection circuits.
• PVC - Polyvinyl Chloride insulation with medium wall construction.
• Voltage rating: 1000 V RMS.
• UL temperature: 80°C; operating: -40°C to +80°C.
• Extruded PVC insulation is flame and ozone resistant and inert to most chemicals, oils, and solvents.
• Military compliance: MIL-W-76C Type MWP; product type: MW-76.
• European directive compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE); RoHS compliant: Yes.
• Shielded: Not Shielded.

Applications

• Use in inter-connection circuits where a low temp plastic lead wire is specified.
• Support internal wiring of computer and electronic equipments.
• Meet (Type MW) MIL-W-76C-Low Temp applications.
• Cover single cond., PVC insulated hook-up wire for internal wiring of electrical and electronic equipment.
