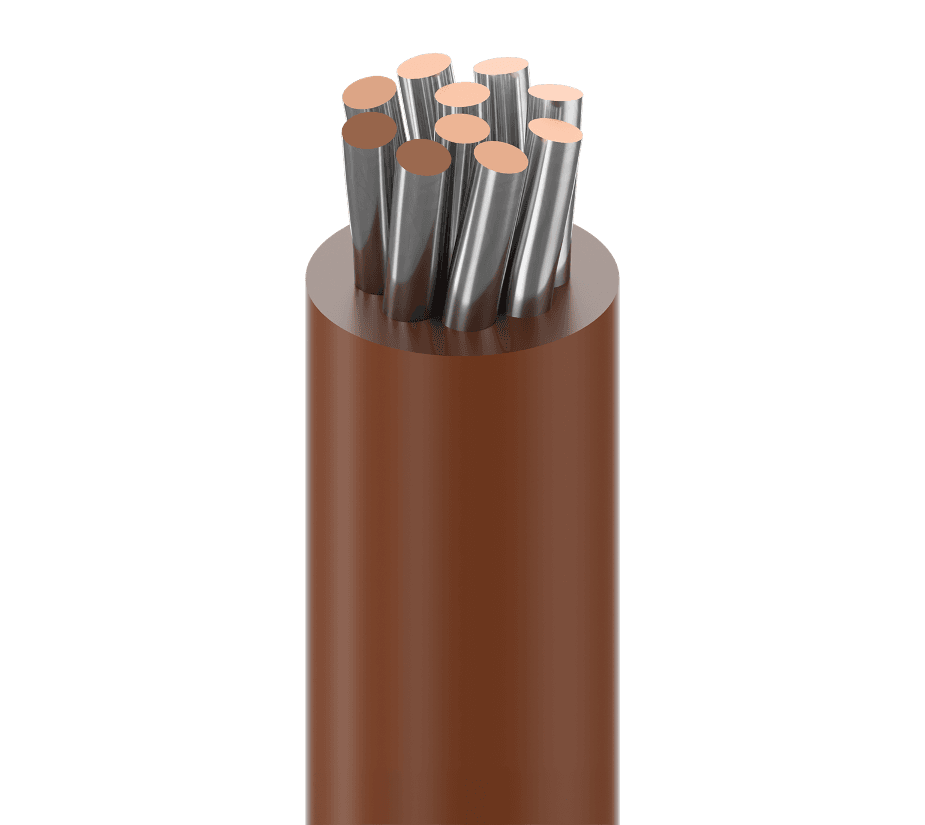

Belden 8523 010, Hook Up Wire 1C 20 AWG Tinned Copper PVC
SKU:Belden 8523 010
● In stock
Description
Belden 8523 010 is a low temp plastic lead wire designed for inter-connection circuits and internal wiring of computer and electronic equipments, including (Type MW) MIL-W-76C-Low Temp applications. It features 1 conductor, 20 AWG (10x30) TC - Tinned Copper with medium wall PVC - Polyvinyl Chloride insulation in Black. This wire is rated 1000 V RMS and 80°C, with max. current of single conductor in free air @ 30ºC: 12.0 A and a nom. conductor DCR of 9.85 Ohm/1000ft.
Belden 8523 010 Applications
- Use it for inter-connection circuits where a low temp plastic lead wire is specified for circuit-to-circuit wiring.
- Support internal wiring of computer and electronic equipments for organized point-to-point connections inside equipment.
- Meet (Type MW) MIL-W-76C-Low Temp applications when that specification is required for the wiring design.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Product type | MW-76 |
| Number of Conductors | 1 |
| Conductor size | 20 AWG |
| Conductor stranding | 10x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Color | Black |
| Shielding | Not Shielded |
| Nom. insulation thickness | 0.017 in (0.43 mm) |
| Nom. insulation diameter | 0.07 in (1.8 mm) |
| Overall cable diameter (nominal) | 0.070 in (1.8 mm) |
| Bulk cable weight | 5 lbs/1000ft |
| Voltage Rating | 1000 V RMS |
| Nom. conductor DCR | 9.85 Ohm/1000ft |
| Max. current | Single Conductor in free air @ 30ºC: 12.0 A |
| UL temperature | 80°C |
| Operating temperature | -40°C To +80°C |
| Bend radius (stationary min.) | 0.07 in (1.8 mm) |
| Bend radius (installation min.) | 0.07 in (1.8 mm) |
| Max Pull Tension | 13 lbs (5.9 kg) |
| Environmental suitability | Outdoor |
| Military compliance | MIL-W-76C Type MWP |
| Mil spec | MIL-W-76 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| RoHS Compliant | Yes |
| Sustainability | CA Prop 65 |
| Priced Per | FT |
