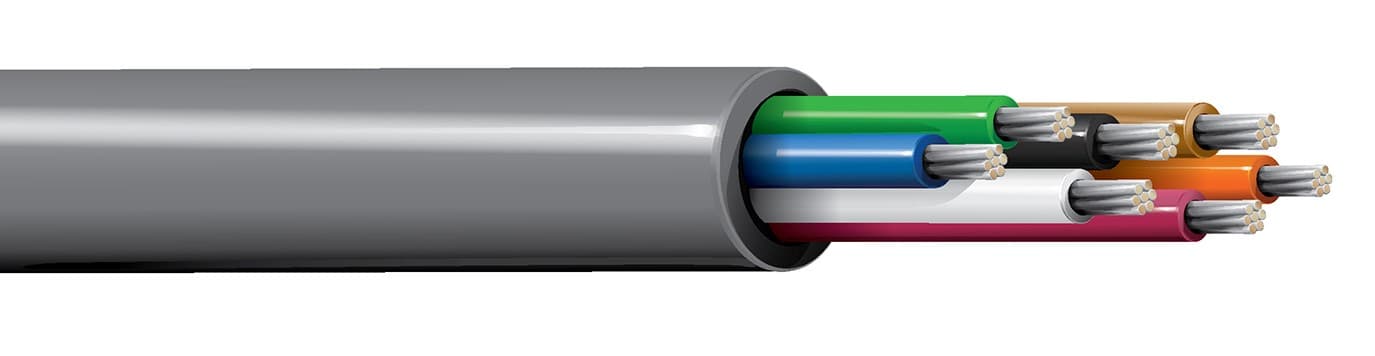

Belden 8619 060, Multi Conductor Cable 19C 18 AWG PVC Jacket, Chrome Jacket
SKU:Belden 8619 060
● In stock
Description
Belden 8619 060 is a 19-conductor, 18 AWG multi-conductor cable with stranded (19x30) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket. It is rated 300 V (CMG), 300 V (UL AWM 2598) and is listed for indoor environments with NEC / UL compliance: Article 800, CMG and CEC / C(UL) compliance: CMG. This cable has a Chrome jacket, No shield, and an Overall Cable Diameter (nominal) of 0.490 in (12.4 mm).
Belden 8619 060 Key Features
- 19 conductors in 18 AWG for multi-conductor control, signal, and wiring builds.
- Stranded (19x30) TC - Tinned Copper conductors support flexible routing and termination.
- PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket support general-purpose indoor cable construction.
- 300 V (CMG), 300 V (UL AWM 2598) rating with NEC / UL compliance: Article 800, CMG and AWM compliance: AWM 2598.
- Chrome jacket color with No shield.
Belden 8619 060 Applications
- Use it for low voltage analog signals (4-20ma, 0-10v, ...) in instrumentation and signal wiring runs.
- Support low voltage control (24v, …) where multiple conductors are needed for control circuits.
- Choose it for line level audio connections in installed wiring and equipment interconnects.
- Install it for voice communications wiring where organized multi-conductor routing is required.
- Apply it in panel wiring to help keep control panels and equipment builds neatly routed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Nom. conductor DCR | 7.13 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 26 pF/ft (85 pF/m) |
| Max. current | 8.4 Amps per Conductor at 30ºC |
| Insulation nominal thickness | 0.018 in (0.46 mm) |
| Insulation nominal diameter | 0.080 in (2.0 mm) |
| Outer jacket nominal thickness | 0.045 in (1.1 mm) |
| Bulk cable weight | 172 lbs/1000ft |
| Color Code | Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe |
| UL temperature | 60°C |
| Operating temperature | -20°C to +60°C |
| Bend radius (stationary min.) | 4.9 in (120 mm) |
| Bend radius (installation min.) | 4.9 in (120 mm) |
| Max Pull Tension | 475 lbs (215 kg) |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8619 060, 8619 060100, 8619 060250, 8619 060500, 8619 0601000, 8619 0605000, UPC 612825213444, UPC 612825213468, UPC 612825213451, UPC 612825213475 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
