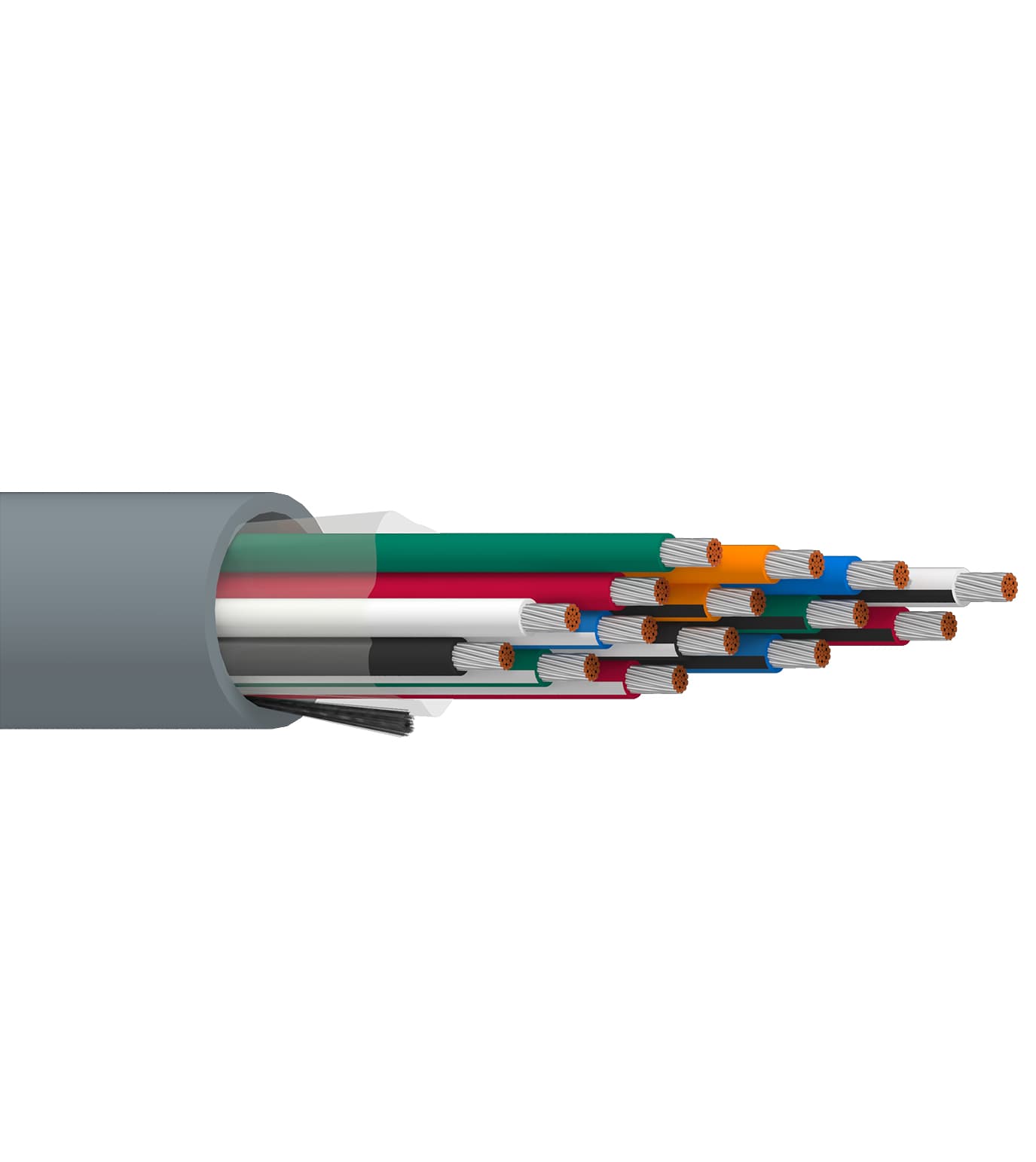

Belden 8623 060, Multi Conductor Cable 15C 16 AWG PVC PVC, Chrome Jacket
SKU:Belden 8623 060
● In stock
Description
Belden 8623 060 is a multi-conductor cable with 15 stranded 16 AWG (19x29) TC - Tinned Copper conductors for signal and control wiring. It features PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket in Chrome. This cable is rated 600 V and meets UL 1581 (VW-1) and IEC 60332-1-2 flammability / reaction to fire requirements. Electrical performance includes 4.45 Ohm/1000ft Nom. Conductor DCR and 19.5 pF/ft (64.0 pF/m) Nom. capacitance Cond-to-Cond.
Belden 8623 060 Key Features
- 15 stranded 16 AWG (19x29) TC - Tinned Copper conductors for multi-conductor signal and control wiring.
- PVC - Polyvinyl Chloride insulation with a PVC - Polyvinyl Chloride outer jacket in Chrome.
- Voltage rating: 600 V.
- Flammability / reaction to fire: UL 1581 (VW-1), IEC 60332-1-2.
- Nom. Conductor DCR: 4.45 Ohm/1000ft.
- Nom. capacitance Cond-to-Cond: 19.5 pF/ft (64.0 pF/m).
Belden 8623 060 Applications
- Supports analog signals in installations rated up to 600 V.
- Meets control wiring needs where circuits are rated up to 600 V.
- Works for line level audio connections where consistent signal transmission is required.
- Fits voice communications wiring in systems that rely on clear, stable connectivity.
- Commonly used for panel wiring to organize and route multiple conductors within control panels.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation thickness (nom.) | 0.031 in (0.79 mm) |
| Insulation diameter (nom.) | 0.121 in (3.07 mm) |
| Separator | PP - Polypropylene Tape |
| Jacket thickness (nom.) | 0.060 in (1.5 mm) |
| Overall cable diameter (nom.) | 0.694 in (17.6 mm) |
| Bulk cable weight | 288 lbs/1000ft |
| Max. current | 8.4 Amps per conductor at 30ºC |
| Operating temperature | -30°C to +75°C |
| Bend radius (stationary min.) | 6.9 in (180 mm) |
| Bend radius (installation min.) | 6.9 in (180 mm) |
| Max Pull Tension | 600 lbs (270 kg) |
| Color Code | Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8623 060, 8623 060100, 8623 060250, 8623 060500, 8623 0601000, UPC 612825213628, UPC 612825213604, UPC 612825213611, UPC 612825213635 |
| Priced Per | FT |
