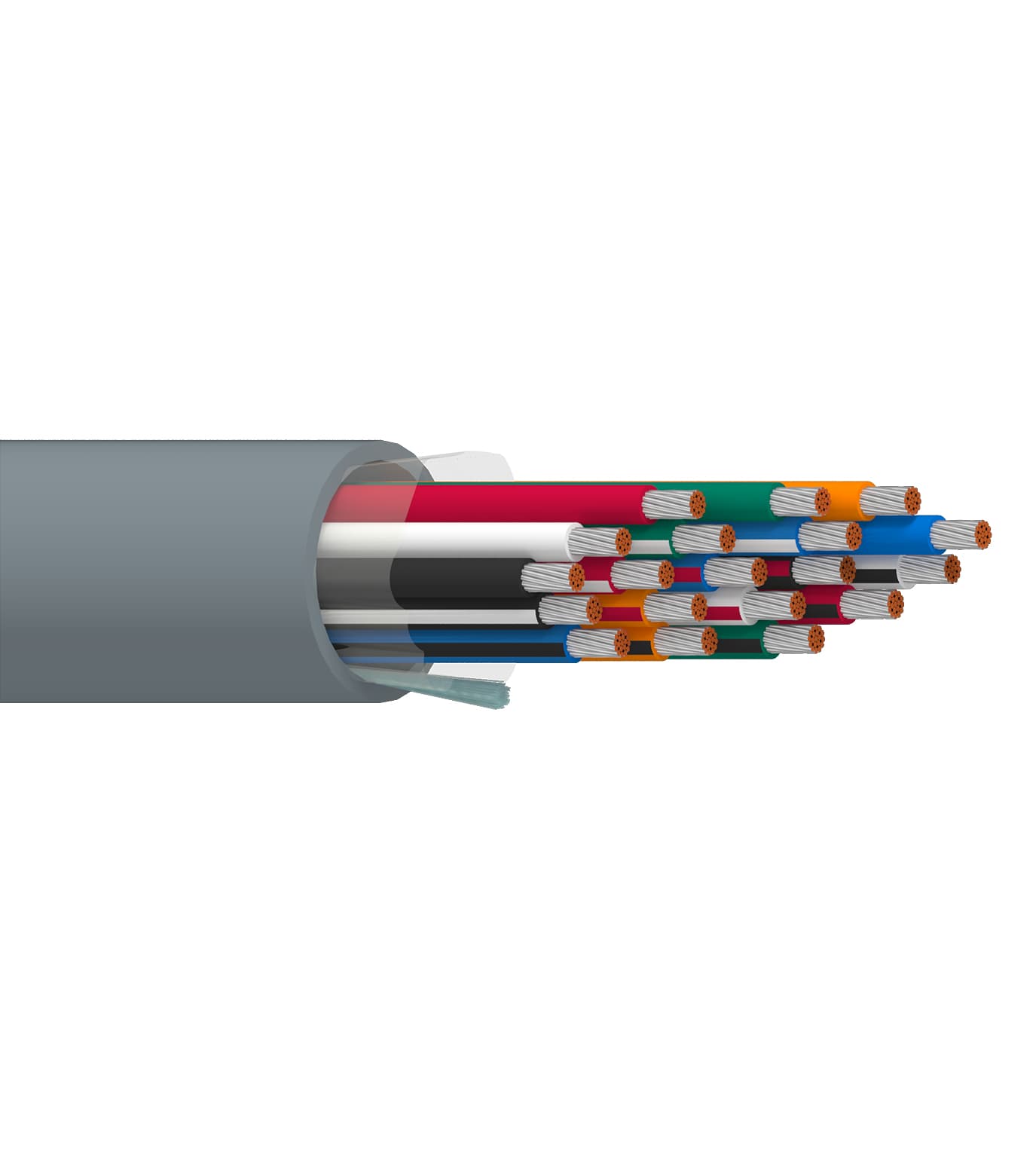

Belden 8624 060, Multi Conductor Cable 19C 16 AWG PVC Jacket, Chrome Jacket
SKU:Belden 8624 060
● In stock
Description
Belden 8624 060 is a 19-conductor multi-conductor cable built with 16 AWG stranded (19x29) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket. It is rated for 600 V and features a Chrome jacket with a nominal overall diameter of 0.740 in (18.8 mm) for consistent routing and installation. The cable meets UL 1581 (VW-1) and IEC 60332-1-2 flammability / reaction to fire requirements and supports EU CE Mark, RoHS, WEEE, and China RoHS II compliance.
Belden 8624 060 Key Features
- 19 conductors support multi-circuit wiring in a single cable run.
- 16 AWG stranded (19x29) TC - Tinned Copper conductors support flexible installation and consistent conductivity.
- PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket provide a durable, unified construction.
- 600 V voltage rating supports higher-voltage signal and control wiring needs.
- Chrome jacket color and 0.740 in (18.8 mm) nominal overall diameter help maintain consistent routing and identification.
- Flammability / reaction to fire compliance: UL 1581 (VW-1), IEC 60332-1-2.
- European directive compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE).
- APAC compliance: China RoHS II (GB/T 26572-2011).
Belden 8624 060 Applications
- Support up to 600V analog signals where multiple conductors are needed in one cable.
- Route up to 600V control circuits in control and wiring layouts.
- Run line level audio connections through a single multi-conductor cable for organized wiring.
- Consolidate voice communications wiring to simplify cable management.
- Keep terminations organized in panel wiring applications with a multi-conductor design.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation nominal thickness | 0.031 in (0.79 mm) |
| Outer jacket nominal thickness | 0.065 in (1.7 mm) |
| Insulation color code | Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe |
| Nom. conductor DCR | 4.4 Ohm/1000ft (14 Ohm/km) |
| Nom. capacitance cond-to-cond | 19.5 pF/ft (64.0 pF/m) |
| Max. current | 3.5 Amps per Conductor at 25ºC |
| Operating temperature | -20°C to +80°C |
| Max Pull Tension | 577 lbs (262 kg) |
| Bulk cable weight | 336 lbs/1000ft (500 kg/km) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8624 060, 8624 060100, 8624 060250, 8624 060500, 8624 0601000, UPC 612825213659, UPC 612825213642 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
