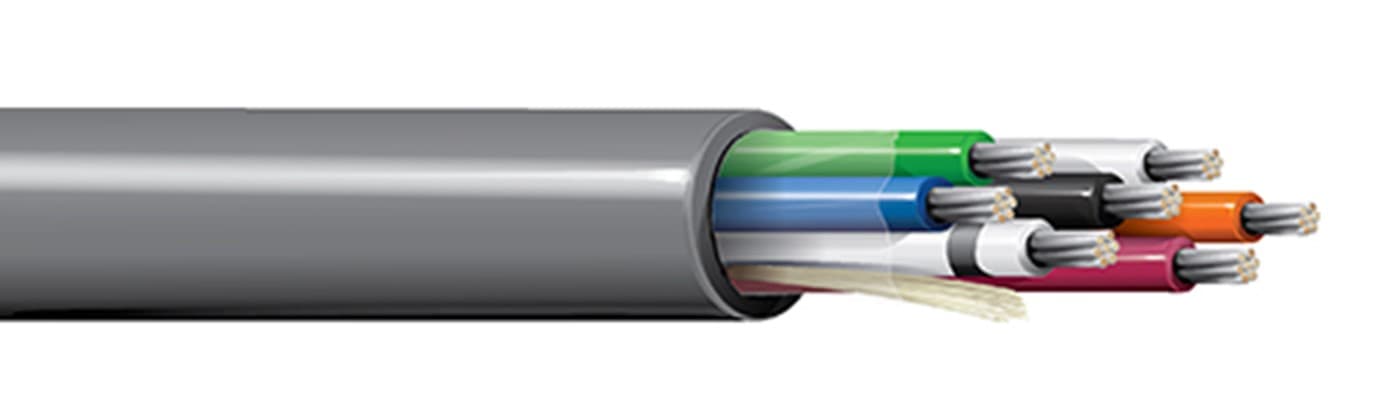

Belden 8627 060, Multi Conductor Cable 4C 14 AWG PVC, Chrome Jacket
Description
Belden 8627 060 is a 4-conductor multi-conductor cable with 14 AWG (19x27) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket in Chrome. It is rated 600 V and supports a max. current of 13.6 Amps per Conductor at 30ºC. This cable is specified for indoor use and operates from -30°C to +75°C.
Belden 8627 060 Key Features
- 4 conductors with 14 AWG (19x27) TC - Tinned Copper stranding for flexible stranded construction.
- PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket; jacket color: Chrome.
- Voltage rating: 600 V.
- Max. current: 13.6 Amps per Conductor at 30ºC.
- Operating temperature: -30°C to +75°C.
- Environmental suitability: indoor.
- Flammability / reaction to fire: UL 1581 (VW-1), IEC 60332-1-2.
- CPR compliance: CPR Euroclass: Eca.
Belden 8627 060 Applications
- Supports up to 600V analog signals where a 600 V rated cable is required.
- Use it for up to 600V control circuits in indoor installations.
- Choose it for line level audio connections where consistent electrical characteristics are needed.
- It fits voice communications wiring runs in indoor environments.
- It is commonly used for panel wiring where stranded conductors are preferred for routing and termination.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 4 |
| Conductor size | 14 AWG |
| Stranding | 19x27 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation color code | Black, White, Red, Green |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Shield | No |
| Insulation nominal thickness | 0.045 in (1.1 mm) |
| Insulation nominal diameter | 0.160 in (4.06 mm) |
| Jacket nominal thickness | 0.045 in (1.1 mm) |
| Overall cable diameter (nominal) | 0.490 in (12.4 mm) |
| Bulk cable weight | 139 lbs/1000ft (207 kg/km) |
| Nom. conductor DCR | 2.73 Ohm/1000ft (8.96 Ohm/km) |
| Nom. capacitance cond-to-cond | 18 pF/ft (59 pF/m) |
| Bend radius (stationary min.) | 4.9 in (120 mm) |
| Bend radius (installation min.) | 4.9 in (120 mm) |
| Max Pull Tension | 190 lbs (86 kg) |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8627 060, 8627 060100, 8627 060250, 8627 060500, 8627 0601000, UPC 612825213680, UPC 612825213697 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
