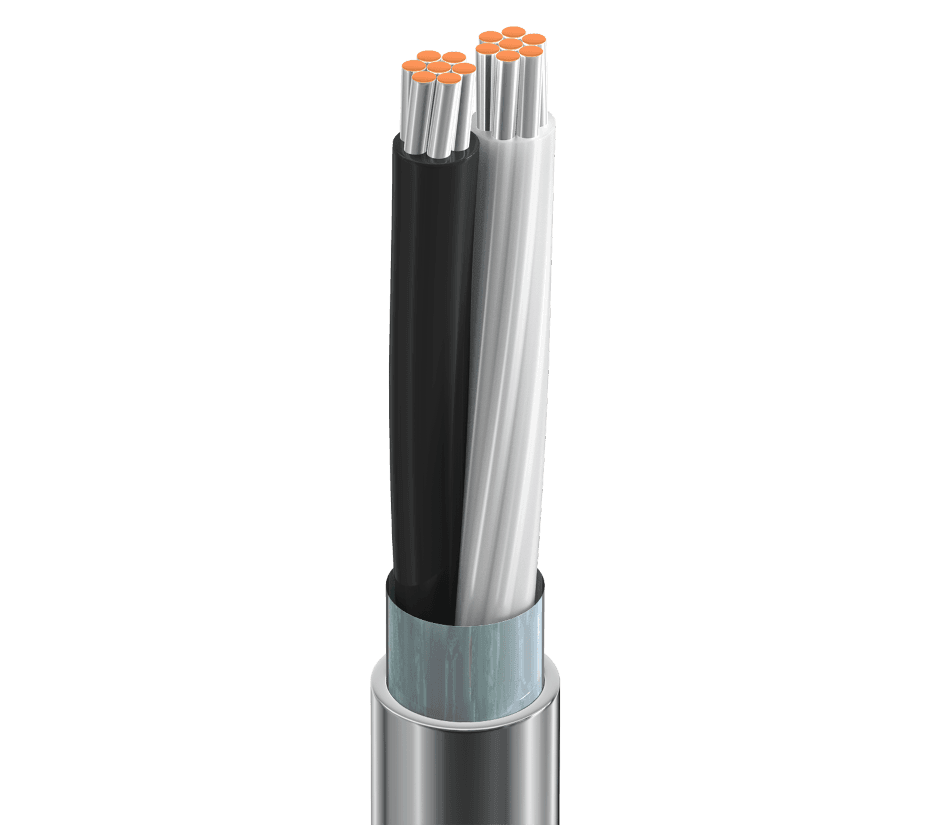

Belden 8641 060, Multi Pair Cable 1C 24 AWG PE PVC Jacket

Belden 8641 060 is a 1-pair, 24 AWG stranded control/audio cable with a PVC outer jacket and CM rating for indoor general-purpose runs. It uses 24AWG (7x32) TC - Tinned Copper conductors with PE - Polyethylene insulation, plus an overall Beldfoil® shield and a 24 AWG (7x32) TC drainwire. Electrical characteristics include 80 Ohm impedance, 22 pF/ft (72 pF/m) capacitance Cond-to-Cond, and a UL voltage rating of 300 V (CM), 300 V (UL AWM 2092).

Belden 8641 060 Key Features

• 1-pair construction with 24 AWG stranded conductors (7x32) for control/audio signal wiring.
• TC - Tinned Copper conductors with PE - Polyethylene insulation.
• Overall Beldfoil® shield (tape, bi-laminate (Alum+Poly), 100% coverage) with a 24 AWG (7x32) TC drainwire.
• PVC - Polyvinyl Chloride jacket with CM rating for indoor general-purpose runs.
• UL voltage rating: 300 V (CM), 300 V (UL AWM 2092).

Applications

• Use for low voltage analog signals (4-20ma, 0-10v, ...) where consistent signal transmission is needed.
• Support low voltage digital control (24v, …) in control and automation-style wiring.
• Choose for line level audio connections in installed audio signal paths.
• Use in computer communication links where shielded signal cable is specified.
• Fit panel wiring layouts for organized internal wiring and interconnects.

Belden™ and all associated trademarks are the property of their respective owners.
