Belden 8675 060, Multi Conductor Cable 2C 14 AWG PVC Jacket, Chrome Jacket
Description

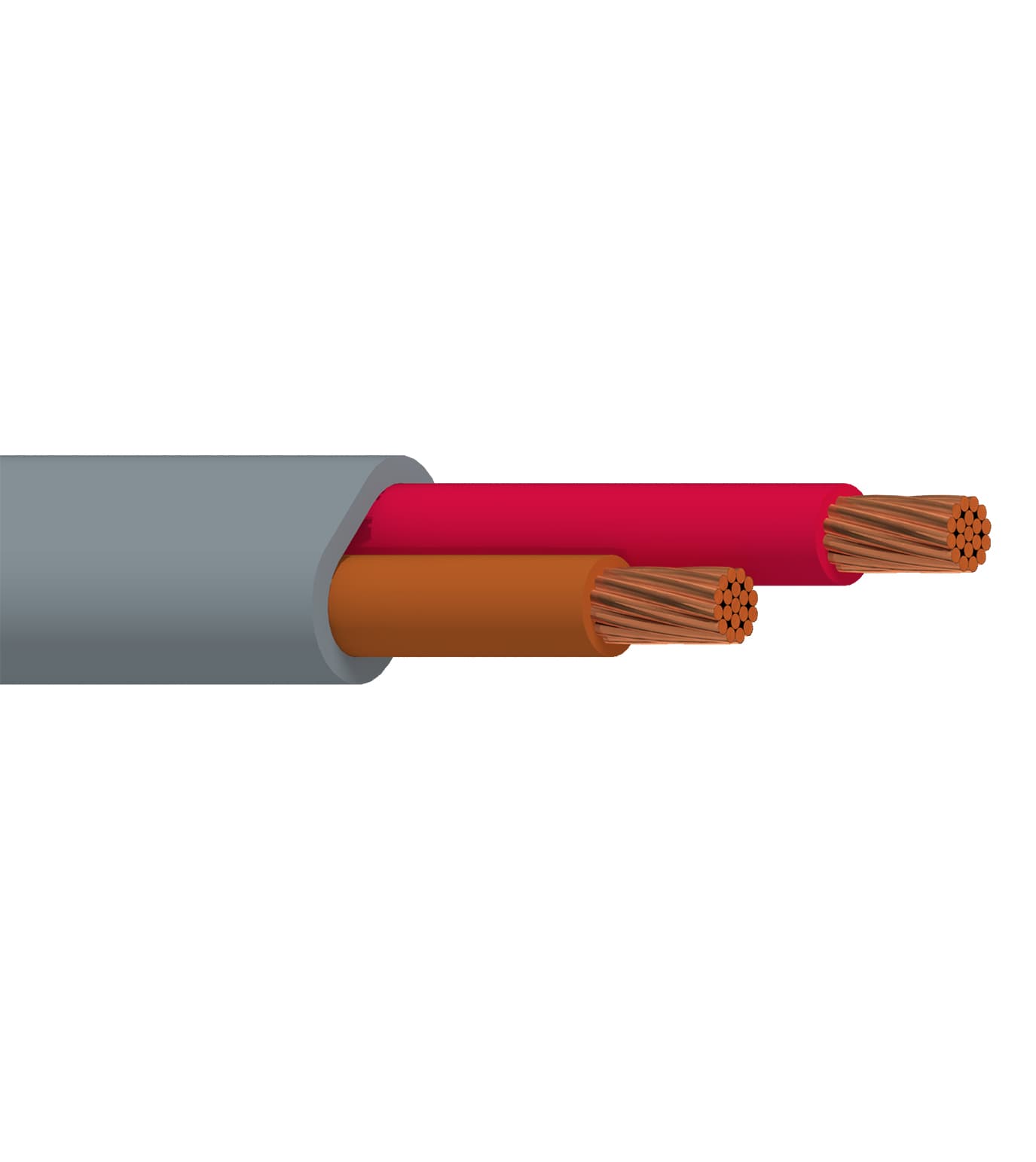

Belden 8675 060 is a 2-conductor 14 AWG multi conductor cable designed for low-voltage signal and control wiring. It uses bare copper stranded conductors (19x26) with PVC insulation and a PVC jacket in Chrome. This unshielded cable is rated 300 V and has a 75°C UL temperature rating, with an overall cable diameter (nominal) of 0.168 x 0.29 in.
Belden 8675 060 Applications
- Well-suited for low voltage analog signals (4-20ma, 0-10v, ...).
- Commonly used for low voltage control (24v, …).
- Suitable for line level audio connections.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 14 AWG |
| Conductor stranding | 19x26 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. insulation thickness | 0.023 in (0.58 mm) |
| Nom. insulation diameter | 0.122 in (3.10 mm) |
| Insulation color code | Brown, Red |
| Shield | No Shield |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Color | Chrome |
| Nom. jacket thickness | 0.023 in (0.58 mm) |
| Overall cable diameter (nominal) | 0.168 x 0.29 in |
| Voltage Rating | 300 V |
| Nom. conductor DCR | 7.06 Ohm/1000ft |
| Max. current | 8.5 Amps per Conductor at 25ºC |
| UL temperature | 75°C |
| Operating temperature | -20°C To +75°C |
| Bend radius (stationary min.) | 0.4872 in (12.37 mm) |
| Bend radius (installation min.) | 0.4872 in |
| Max Pull Tension | 95 lbs (43 kg) |
| Bulk cable weight | 44 lbs/1000ft |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8675 060, 8675 060100, 8675 060250, 8675 060500, 8675 0601000, UPC 612825214021 |
| Priced Per | FT |
