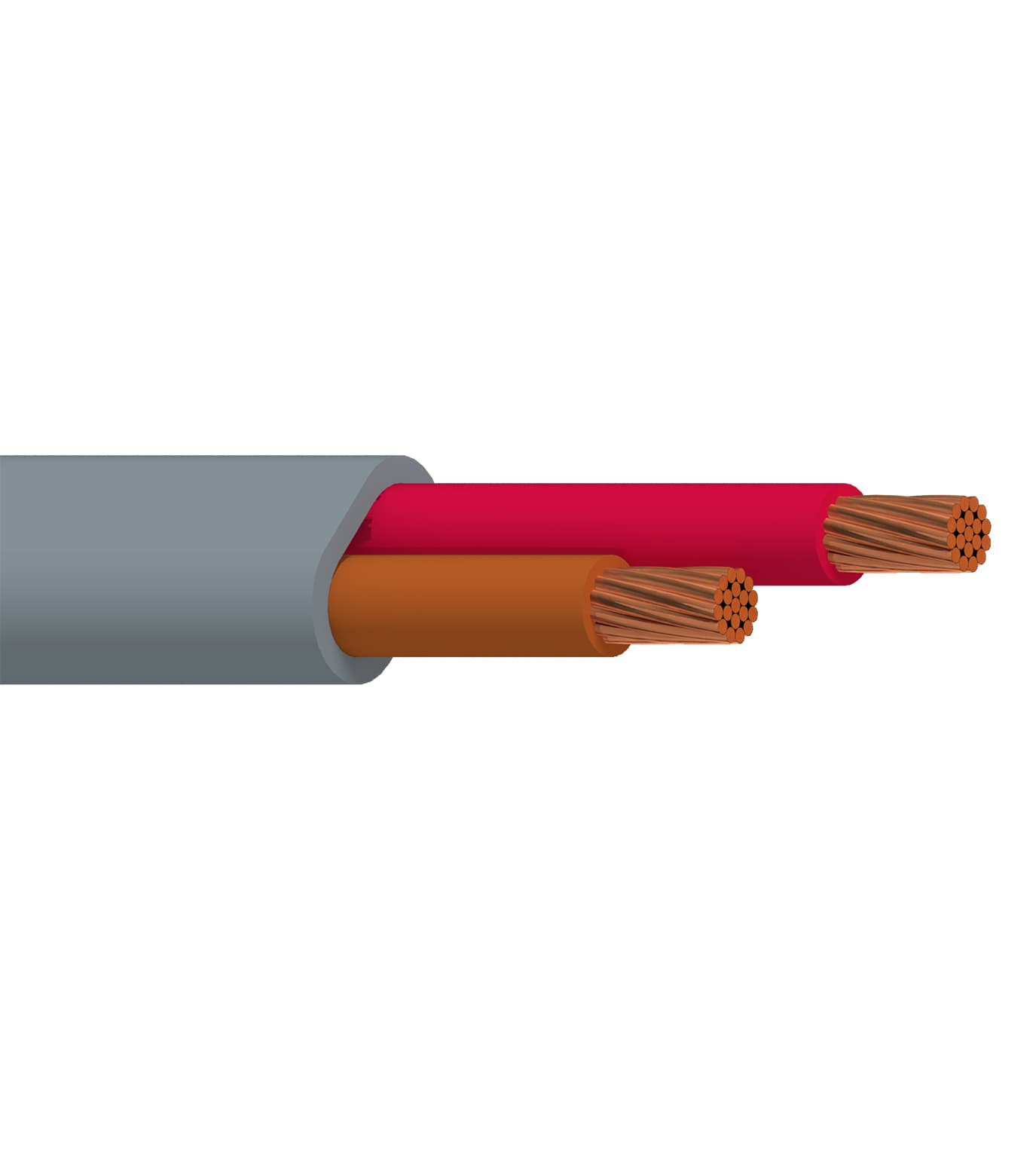

Belden 8678 060, Multi Conductor Cable 2C 10 AWG PVC Jacket, Chrome Jacket
Description
Belden 8678 060 is a 2-conductor 10 AWG multi conductor cable with stranded (19x23) BC - Bare Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride jacket. It is rated 300 V and supports a max. current of 16 Amps per Conductor at 25ºC. The cable is designed with insulated conductors that lay in parallel under the jacket and is suitable for indoor environments. Operating temperature is -20°C to +75°C.
Belden 8678 060 Applications
- Use it for low voltage analog signals (4-20ma, 0-10v, ...) where consistent signal wiring is needed.
- For low voltage control (24v, …) circuits, it provides straightforward routing of conductors in parallel under the jacket.
- It supports line level audio connections where a 2-conductor cable is required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 10 AWG |
| Conductor Type | Stranded Conductor |
| Conductor stranding | 19x23 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation nominal thickness | 0.032 in (0.81 mm) |
| Insulation color code | Brown, Red |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket nominal thickness | 0.025 in (0.64 mm) |
| Jacket nominal diameter | 0.225 x 0.400 in |
| Jacket Color | Chrome |
| Shield | No |
| Voltage Rating | 300 V |
| Max. current | 16 Amps per Conductor at 25ºC |
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 2.3 in (58 mm) |
| Bend radius (installation min.) | 2.3 in (58 mm) |
| Max Pull Tension | 235.6 lbs (106.9 kg) |
| Bulk cable weight | 95 lbs/1000ft (140 kg/km) |
| Environmental suitability | Indoor |
| EU CE mark | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| China RoHS II (GB/T 26572-2011) | Yes |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8678 060, 8678 060100, 8678 060250, 8678 060500, 8678 0601000, UPC 612825214045 |
| Priced Per | FT |
