Belden 8690 060, Multi Pair Cable 3 Pair 18 AWG PVC Jacket, Chrome Jacket
SKU:Belden 8690 060
● In stock
Description

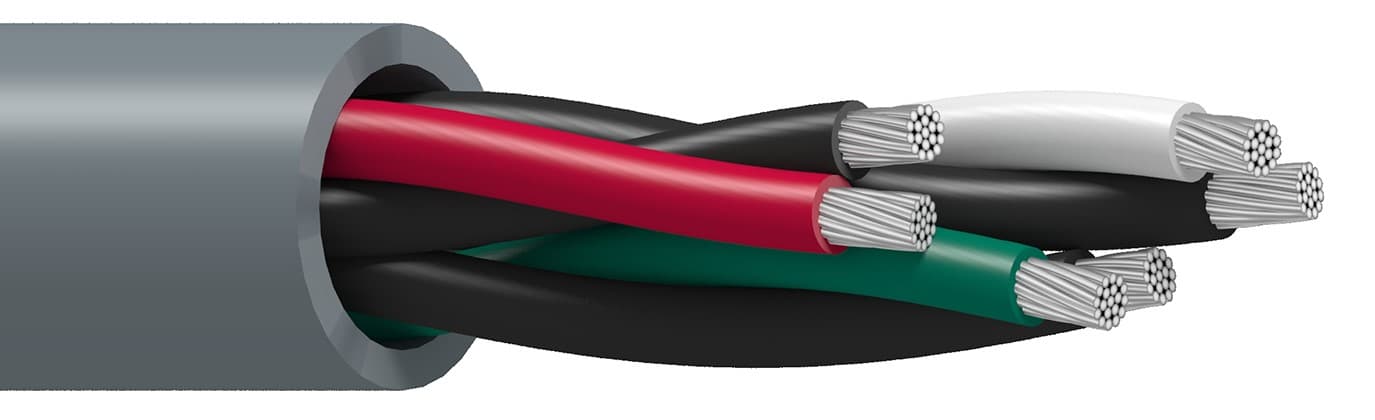

Belden 8690 060 is a multi pair control and instrumentation cable with 3 twisted pairs of 18 AWG stranded (16x30) TC - Tinned Copper conductors. It features PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket in Chrome. The cable is rated 300 V (CMG), 300 V (UL AWM 2464) and is intended for indoor installations. It meets NEC CMG requirements and is listed to Article 800, CMG.
Belden 8690 060 Key Features
- 3 twisted pairs support multi-channel signal and control wiring in a single run.
- 18 AWG stranded (16x30) TC - Tinned Copper conductors provide flexibility with tinned copper construction.
- PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket in Chrome.
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- Environmental suitability: indoor.
- Operating temperature: -20°C to +80°C; UL temperature: 80°C.
- NEC / UL compliance: Article 800, CMG; NEC rating: NEC CMG.
Belden 8690 060 Applications
- Commonly used to carry low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation circuits.
- Supports low voltage digital control (24v, …) where reliable point-to-point control wiring is needed.
- Can be installed for line level audio signal runs in systems that require multi-pair connectivity.
- Suitable for computer communication wiring where multi-pair signal connections are required.
- Used for panel wiring in general-purpose installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Pairs | 3 |
| Conductor size | 18 AWG |
| Stranding | 16x30 |
| Conductor Material | TC - Tinned Copper |
| Conductor Type | Stranded Conductor |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation nominal thickness | 0.013 in (0.33 mm) |
| Insulation nominal diameter | 0.073 in (1.9 mm) |
| Pair color code | Black & Red, Black & White, Black & Green |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Outer jacket nominal thickness | 0.032 in (0.81 mm) |
| Nom. conductor DCR | 7.2 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 25.5 pF/ft (83.7 pF/m) |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 5 Amps per Conductor at 25ºC |
| Overall cable diameter (nominal) | 0.347 in (8.81 mm) |
| Bend radius (stationary min.) | 3.5 in (89 mm) |
| Bend radius (installation min.) | 3.5 in (89 mm) |
| Max Pull Tension | 125 lbs (56.7 kg) |
| Bulk cable weight | 61 lbs/1000ft |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| Sustainability | CA Prop 65 |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8690 060, 8690 060100, 8690 060250, 8690 060500, 8690 0601000, UPC 612825214069, UPC 612825214083, UPC 612825214076, UPC 612825214090 |
| Priced Per | FT |
