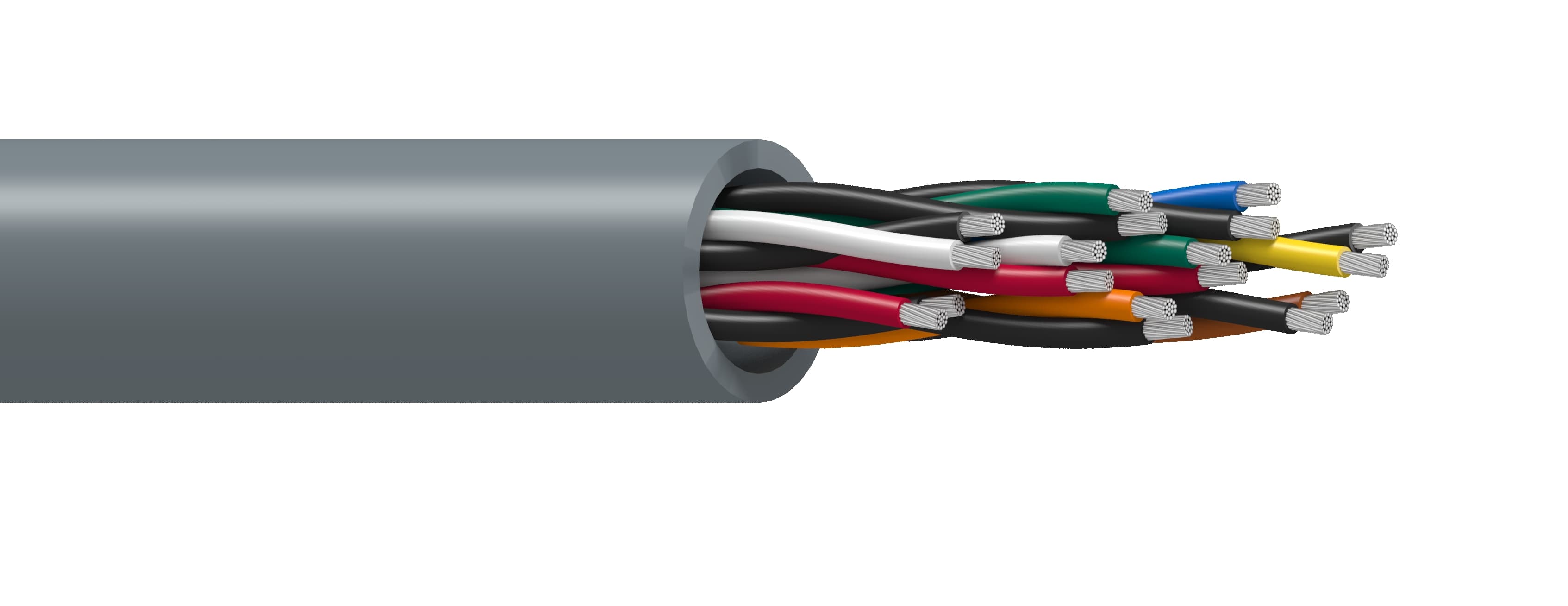

Belden 8692 060, Multi Pair Cable 9 Pair 18 AWG PVC Jacket, Chrome Jacket
SKU:Belden 8692 060
$2,140.80
● In stock
Description
Belden 8692 060 is an electronic multi-pair cable with 9 twisted pairs of 18 AWG stranded (16x30) TC - Tinned Copper conductors. It features PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket in Chrome for indoor installations. This cable is rated 300 V (CMG), 300 V (UL AWM 2464) and meets Article 800, CMG, and UL1685 FT4 Loading requirements.
Belden 8692 060 Key Features
- 9 twisted pairs support organized multi-pair signal and control wiring.
- 18 AWG stranded (16x30) TC - Tinned Copper conductors provide flexibility with tinned copper construction.
- PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket in Chrome.
- Voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- Compliance and fire performance: Article 800, CMG, UL1685 FT4 Loading.
- Designed for indoor environments.
Belden 8692 060 Applications
- Use it for low voltage analog signals such as 4-20ma and 0-10v analog signals in instrumentation and control circuits.
- Support low voltage digital control, including 24v digital control, when multiple control pairs are needed in one run.
- Choose it for line level audio signal wiring where paired conductors are used for audio connections.
- Apply it to computer communication wiring in systems that use multi-pair signal cabling.
- Route multiple signal and control circuits within panels for panel wiring.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Shield | No |
| Insulation nominal thickness | 0.013 in (0.33 mm) |
| Outer jacket nominal thickness | 0.040 in (1.0 mm) |
| Overall cable diameter (nominal) | 0.524 in (13.3 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green |
| Bulk cable weight | 160 lbs/1000ft (240 kg/km) |
| Nom. conductor DCR | 6.8 Ohm/1000ft (22 Ohm/km) |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 2.6 Amps per Conductor at 25ºC |
| UL temperature | 80°C (UL AWM 2464) |
| Operating temperature | -20°C to +80°C |
| Max Pull Tension | 364 lbs (165 kg) |
| NEC rating | NEC CMG |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8692 060, 8692 060100, 8692 060250, 8692 060500, 8692 0601000, UPC 612825214144 |
| Priced Per | FT |
