Belden 8723 060U, 22 AWG 2C Shielded PVC Jacket 1000’ Box
SKU:Belden 8723 060U
● In stock
Description

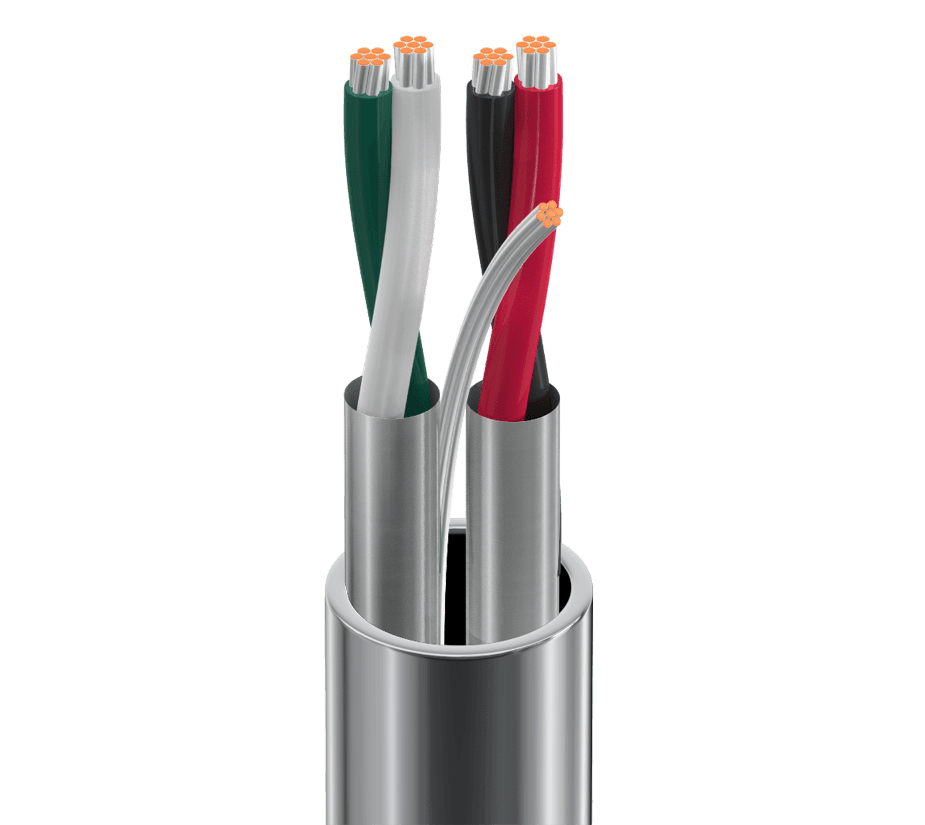

Belden 8723 060U is an audio, control & instrument cable with 2 individually Beldfoil® shielded twisted pairs using 22 AWG stranded (7x30) TC - Tinned Copper conductors and PP - Polypropylene insulation. Each pair includes a 24 AWG (7x32) TC drainwire with 100% foil coverage to help reduce noise in sensitive signal runs. The cable is finished with a PVC - Polyvinyl Chloride jacket for indoor installations and is supplied in a 1000’ box. UL voltage rating is 300 V (CM) with a UL temperature of 60°C.
Belden 8723 060U Key Features
- 2 individually Beldfoil® shielded twisted pairs help reduce noise in sensitive signal runs.
- 22 AWG stranded (7x30) TC - Tinned Copper conductors support consistent electrical performance.
- PP - Polypropylene insulation with color code: Black & Red, Green & White.
- Tape shield with Bi-Laminate (Alum+Poly) and 100% coverage, plus a 24 AWG (7x32) TC drainwire on each pair.
- PVC - Polyvinyl Chloride jacket for indoor installations, supplied in a 1000’ box.
- UL voltage rating: 300 V (CM) and UL temperature: 60°C.
Belden 8723 060U Applications
- Use it for low voltage analog signals (4-20ma, 0-10v, ...) where stable signal transmission is needed.
- Support low voltage digital control (24v, …) in control and automation wiring.
- Wire line level audio runs in systems where noise reduction is important.
- Make computer communication connections where shielded twisted pairs are required.
- Organize panel wiring installations with paired conductors for control and instrument circuits.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Pairs | 2 |
| Conductor size | 22 AWG |
| Stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PP - Polypropylene |
| Nom. insulation thickness | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.046 in (1.2 mm) |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drain Wire | 24 AWG (7x32) TC |
| Shield notes | foil-out tape on each pair, one Drain Wire |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.020 in (0.51 mm) |
| Overall cable diameter (nominal) | 0.160 in (4.06 mm) |
| Bulk cable weight | 17 lbs/1000ft |
| Nom. conductor DCR | 18.2 Ohm/1000ft |
| Nom. inner shield DCR | 18.38 Ohm/1000ft (60.30 Ohm/km) |
| Nom. capacitance cond-to-cond | 33 pF/ft (110 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 62 pF/ft (200 pF/m) |
| Nom. characteristic impedence | 52 Ohm |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Nom. velocity of prop. | 66% |
| Max. current | 2.8 Amps per Conductor at 25ºC |
| Nom. insertion loss (attenuation) | 10 dB/100m |
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 1.6 in (41 mm) |
| Bend radius (installation min.) | 1.6 in (41 mm) |
| Max Pull Tension | 42 lbs (19 kg) |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | UL 1685 FT4 Loading, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL compliance | Article 800, CM |
| CEC / C(UL) compliance | CM |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Plenum number | 82723, 87723, 88723 |
| Priced Per | FT |
