Belden 8723 060, 22 AWG 2C Shielded PVC Jacket, Chrome Jacket

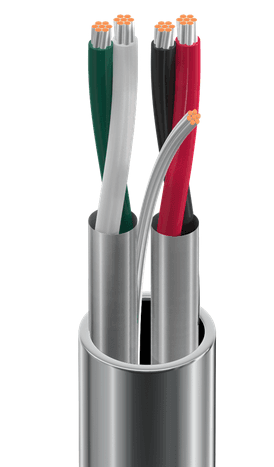

Belden 8723 060 is a 22 AWG, 2-pair shielded audio, control, and instrument cable with a chrome PVC jacket and a 0.160 in (4.06 mm) nominal overall diameter. It uses 22 AWG stranded (7x30) TC - Tinned Copper conductors with PP - Polypropylene insulation and twisted pairs. Each pair is shielded with tape (Bi-Laminate (Alum+Poly)) at 100% coverage and includes a 24 AWG (7x32) TC drainwire. Ratings and compliance include 300 V (CM), UL temperature 60°C, and NEC / UL compliance: Article 800, CM.

Belden 8723 060 Key Features

• 22 AWG, 2-pair audio, control & instrument cable construction supports multi-signal runs in a compact format.
• 22 AWG stranded conductor (7x30) in TC - Tinned Copper supports flexible routing with consistent conductor makeup.
• Twisted pairs use color code: Black & Red, Green & White for straightforward pair identification.
• Individually shielded pairs use tape (Bi-Laminate (Alum+Poly)) with 100% coverage and Shield Construction: Indivl/foil side & drain out.
• Drainwire type is 24 AWG (7x32) TC, with Notes: Foil-out tape on each pair, one Drain Wire.
• PVC - Polyvinyl Chloride jacket material in Jacket Color: Chrome, with Design note: Pairs cabled on common axis to reduce Diameter.
• UL Voltage Rating is 300 V (CM) and UL temperature is 60°C.

Belden 8723 060 Applications

• This cable is commonly selected for low voltage analog signals (4-20ma, 0-10v, ...) where stable signal transfer is needed.
• For low voltage digital control (24v, …), it is used in control wiring where paired conductors are helpful for organized terminations.
• Line level audio connections can use it where shielding is desired to help manage interference.
• Computer communication links use it where consistent electrical characteristics are important.
• In panel wiring layouts, it fits where a compact diameter can simplify routing inside enclosures.
