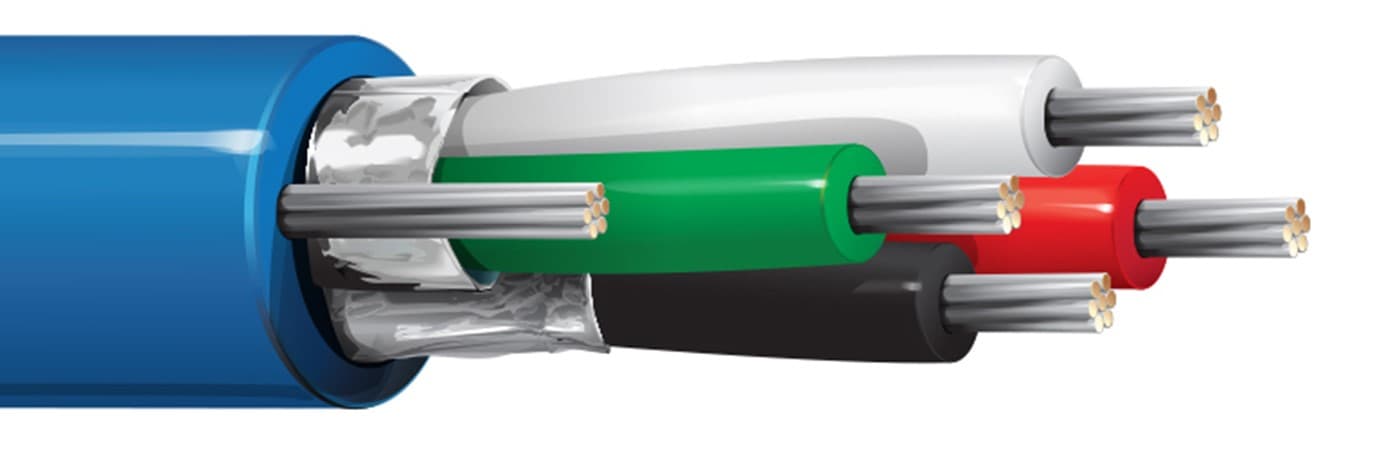

Belden 8723SB 010, Multi Conductor Shipboard Cable 2PR 22 AWG PP
SKU:Belden 8723SB 010
● In stock
Description
Belden 8723SB 010 is a multi conductor shipboard cable designed for audio, instrumentation, and control wiring in marine environments. It is built with 2 twisted pairs of 22 AWG stranded (7x30) TC - Tinned Copper conductors, PP - Polypropylene insulation, and individual pair shielding. Each pair includes a 100% Beldfoil® Shield (100% coverage) and a 24 AWG stranded tinned copper drain wire to support straightforward termination. A black LSZH - Low Smoke Zero Halogen (Flame Retardant) jacket is specified for Indoor/Outdoor use and includes UL Voltage Rating: 300 V (CMG-LS).
Belden 8723SB 010 Key Features
- 2 twisted pairs with 22 AWG stranded (7x30) TC - Tinned Copper conductors for multi-pair signal and control wiring.
- Individual pair shielding using 100% Beldfoil® Shield (100% coverage) to support noise rejection in sensitive circuits.
- 24 AWG (7x32) TC drain wire included with the pair shield to simplify termination and grounding.
- PP - Polypropylene insulation with a color code of Black & Red, Green & White for consistent conductor identification.
- Black LSZH - Low Smoke Zero Halogen (Flame Retardant) outer jacket specified for Indoor/Outdoor, Indoor, Non-Halogenated environments.
Belden 8723SB 010 Applications
- Use it for shipboard wiring where reliable performance is needed in marine environments.
- Support low voltage analog signals (4-20ma, 0-10v, ...) in instrumentation and control circuits.
- Handle low voltage digital control (24v, …) in control and automation wiring.
- Run line level audio signals where shielded pairs are required.
- Fit panel wiring applications where organized multi-pair terminations are needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Pairs | 2 |
| Conductor size | 22 AWG |
| Conductor stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PP - Polypropylene |
| Nom. insulation thickness | 0.009 in (0.23 mm) |
| Nom. insulation diameter | 0.046 in (1.2 mm) |
| Color Code | Black & Red, Green & White |
| Pair shielding | Tape, Bi-Laminate (Alum+Poly), 100% |
| Shield notes | foil-out tape on each pair, one Drain Wire |
| Drain Wire | 24 AWG (7x32) TC |
| Outer jacket material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Nom. jacket thickness | 0.034 in (0.86 mm) |
| Nom. overall diameter | 0.196 in (4.98 mm) |
| Jacket Color | Black |
| Bulk cable weight | 24 lbs/1000ft (36 kg/km) |
| UL Voltage Rating | 300 V (CMG-LS) |
| Nom. conductor DCR | 18.2 Ohm/1000ft (59.7 Ohm/km) |
| Nom. inner shield DCR | 18.38 Ohm/1000ft (60.30 Ohm/km) |
| Nom. capacitance cond-to-cond | 35 pF/ft (110 pF/m) |
| Nom. capacitance (Cond-to-other) | 62 pF/ft (200 pF/m) |
| Nom. characteristic impedence | 45 Ohm |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Nom. velocity of prop. | 66% |
| Max. current | 2.8 Amps per conductor at 25ºC |
| UL temperature | 105°C |
| Operating temperature | -30°C to +105°C |
| Stationary min. bend radius | 2.0 in (51 mm) |
| Installation min. bend radius | 2.0 in (51 mm) |
| Max Pull Tension | 42 lbs (19 kg) |
| Environmental suitability | Indoor/Outdoor, Indoor, Non-Halogenated |
| Flammability / reaction to fire | UL 1685 FT4 Loading, IEEE 1202, IEC 60332-1-2, IEC 60332-3-22 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG-LS |
| CEC / C(UL) compliance | CMG-ST1 |
| IEEE compliance | Std. 45 Clause 23 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Other Part Numbers | 8723SB 010, 8723SB 010100, 8723SB 010250, 8723SB 010500, 8723SB 0101000, UPC 612825214595 |
| Priced Per | FT |
