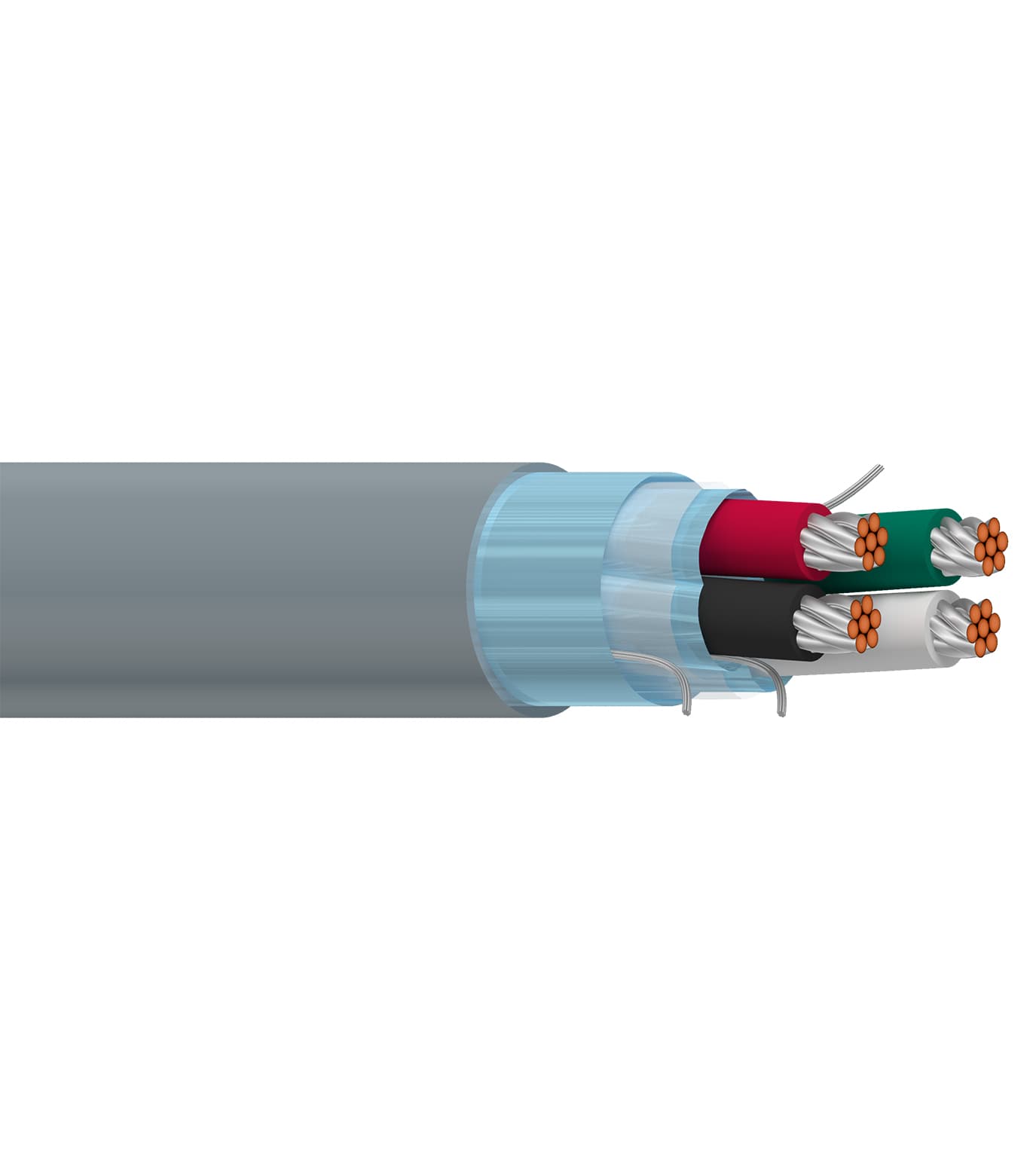

Belden 8728 060, Multi Conductor Cable 2C 22 AWG SHPR PP PVC

Belden 8728 060 is a 2 pairs, 22 AWG multi-conductor cable with a PVC - Polyvinyl Chloride jacket in Chrome and an overall Beldfoil® Shield (100% coverage). It uses 22 AWG Stranded (7x30) TC - Tinned Copper conductors with PP - Polypropylene insulation and is cabled in pairs. Electrical ratings include 300 V RMS (UL AWM Style 2717) and 80°C (UL AWM Style 2717), with an operating temperature of -20°C to +80°C. It is listed as NEC / UL compliance: Article 800, CM and CEC / C(UL) compliance: CM.

Belden 8728 060 Key Features

• 2 pairs construction with 22 AWG stranded conductors for multi-conductor signal wiring.
• 22 AWG Stranded (7x30) TC - Tinned Copper conductors with PP - Polypropylene insulation.
• Cabled in pairs with color code: Black & Red, White & Green.
• Overall Beldfoil® Shield (100% coverage) with 24 AWG Stranded TC drain wires for shield termination.
• PVC - Polyvinyl Chloride jacket in Chrome.
• UL voltage rating: 300 V RMS (UL AWM Style 2717).
• UL temperature: 80°C (UL AWM Style 2717) with operating temperature: -20°C to +80°C.
• NEC / UL compliance: Article 800, CM; CEC / C(UL) compliance: CM.

Belden 8728 060 Applications

• Use it for low voltage analog signals (4-20ma, 0-10v, ...) in control and communication circuits.
• Support low voltage digital control (24v, …) where consistent signal wiring is needed.
• Connect line level audio signals with this cable.
• Specify it for computer communication wiring where shielded signal cable is required.
• Install it for panel wiring in control and communication panels.
