Belden 8729 009 Multi-Conductor 4-22 AWG TC Shielded CM White PVC Jacket Discontinued
Description

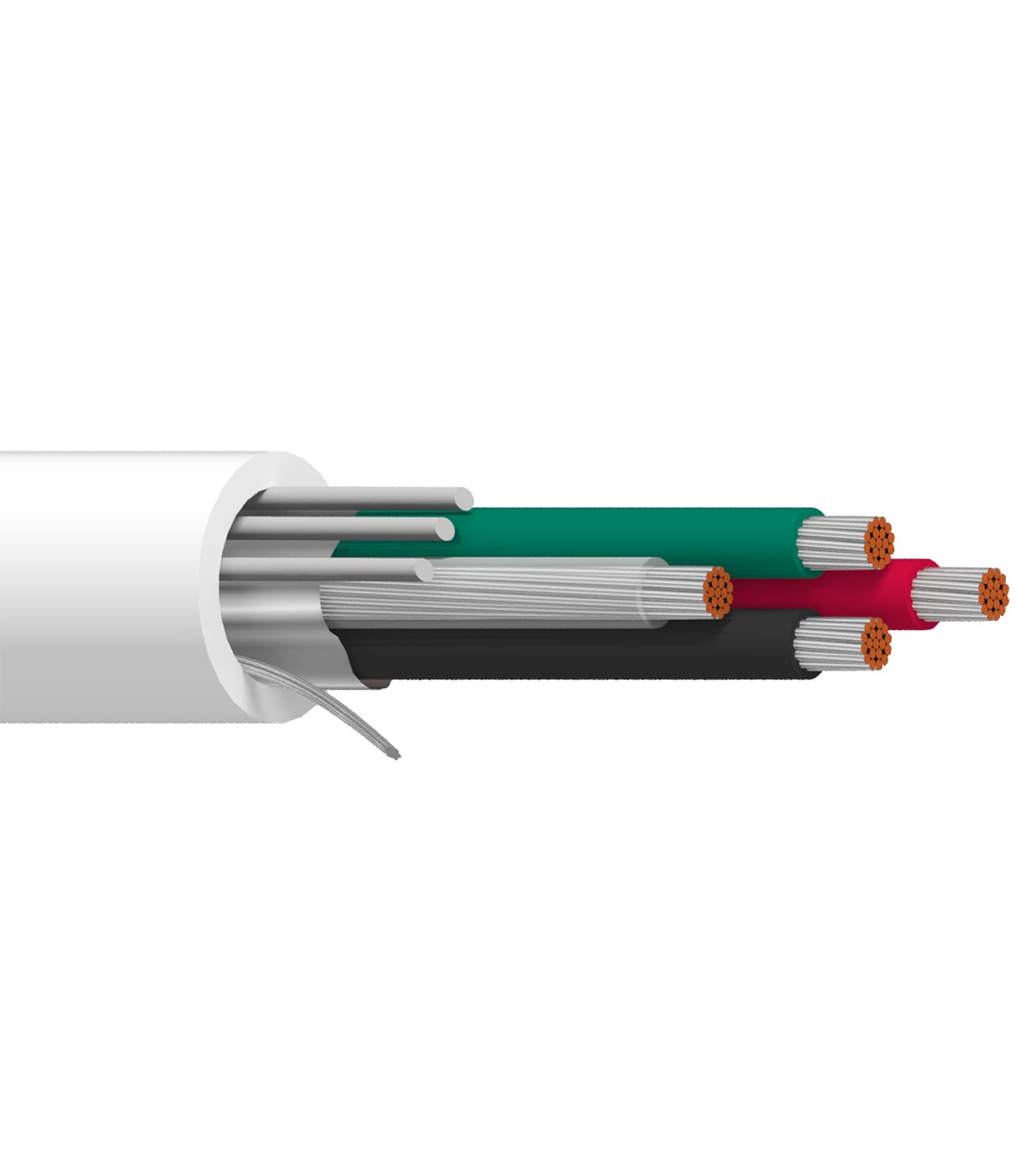

Belden 8729 009 electronic cable is a shielded, multi-conductor cable with 4 conductors of 22 AWG stranded (19x34) tinned copper. It features polyethylene (PE) insulation, an overall Beldfoil® shield with drainwire, and a white PVC jacket. CM-rated.
Applications
- Used in electronic cable installations that require a 4-conductor construction.
- For electronic wiring setups, the overall Beldfoil® shield and drainwire support shielded cable terminations.
- Specified for CM-rated cable runs that call for a PVC-jacketed electronic cable.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 4 Conductors |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Stranded Tinned Copper |
| Insulation Material | PE - Polyethylene |
| Shield Type | Overall Beldfoil + Drain Wire |
| Jacket Material | PVC - Polyvinyl Chloride |
| Approvals | CM |
| Item Type | Belden Multi Conductor Cable |
| Weight /LBS per 1000FT | 43 |
| Other Part Numbers | 8729 009, 8729 009100, 8729 009250, 8729 009500, 8729 0091000, UPC 612825214724, UPC 612825214717, UPC 612825214731 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
Need a cut length, bulk pricing, or a spec sheet?
Our team quotes custom lengths and volume orders, usually same day.
