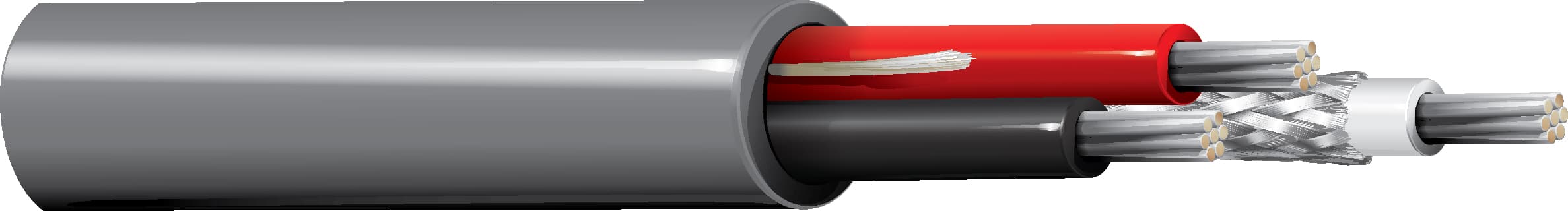

Belden 8734 060, Multi Conductor Cable 3C 22AWG PVC Jacket, Chrome Jacket

Belden 8734 060 is a 3 conductor 22AWG (7x30) multi-conductor electronic cable with PVC insulation and a PVC outer jacket in Chrome. It includes 1 conductor w/ Tinned Copper Braid(80%) Shield plus an overall Tinned Copper (TC) braid shield with 90% coverage and Overall Shield & drain construction. This cable is rated CM and 300 V, with UL temperature 60°C and an operating temperature range of -20°C To +60°C. It is specified for Indoor, Outdoor environmental suitability.

Belden 8734 060 Key Features

• 3 conductor 22AWG (7x30) stranded Tinned Copper conductors for multi-conductor signal and control wiring.
• PVC - Polyvinyl Chloride insulation with 0.015 in (0.38 mm) nominal thickness.
• Chrome PVC - Polyvinyl Chloride outer jacket with 0.025 in (0.64 mm) nominal thickness.
• Noise-reduction shielding includes 1 conductor w/ Tinned Copper Braid(80%) Shield plus an overall braid shield.
• NEC / UL compliance: Article 800, CM and UL voltage rating: 300 V.
• Operating temperature: -20°C To +60°C (UL temperature: 60°C).

Belden 8734 060 Applications

• Use it for low voltage analog signals (4-20ma, 0-10v, ...) where consistent signal integrity is needed.
• Apply it to low voltage control (24v, …) circuits in control and automation wiring.
• Support line level audio connections where shielding helps reduce unwanted noise.
• Choose it for voice communications cabling in systems that require clean signal transmission.
• Install it for panel wiring to organize and connect equipment within enclosures.
