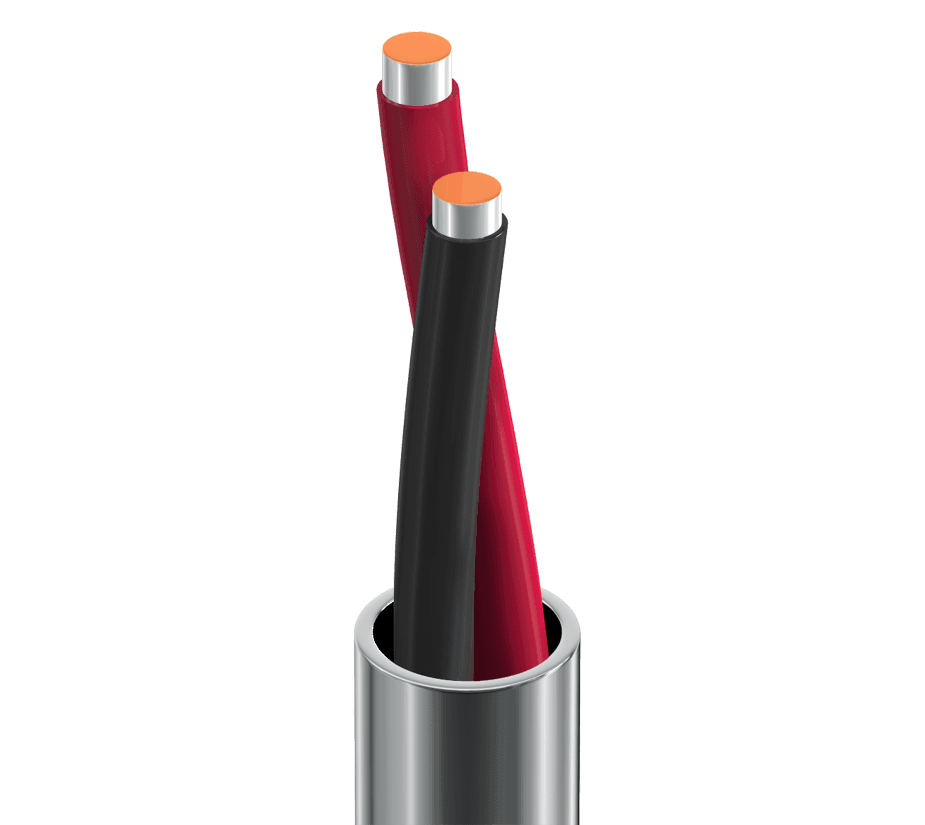

Belden 8740 060U, Multi Pair Cable 1 Pair 22 AWG PVC Jacket
Description
Belden 8740 060U is a 1 pair multi pair cable with 22 AWG solid tinned copper conductors, PVC insulation, and a PVC outer jacket. It is rated CMG and has a 150 V (CMG), 150 V (UL AWM 2576) voltage rating for indoor electronic and communication wiring. This cable is specified for low voltage analog signals (4-20ma, 0-10v, ...) and low voltage control (24v, …), as well as telephone cables and voice communications.
Belden 8740 060U Key Features
- 1 pair construction for multi pair cable builds.
- 22 AWG solid tinned copper conductors (TC - tinned copper).
- PVC - polyvinyl chloride insulation and PVC - polyvinyl chloride outer jacket.
- CMG rating with a 150 V (CMG), 150 V (UL AWM 2576) voltage rating.
- Designed for indoor electronic and communication wiring.
Belden 8740 060U Applications
- Used in telephone cables for indoor electronic and communication wiring.
- Supports low voltage analog signals (4-20ma, 0-10v, ...) in signal and instrumentation-style connections.
- Handles low voltage control (24v, …) circuits in indoor wiring runs.
- Applied in voice communications wiring where consistent connectivity is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of pairs | 1 |
| Conductor size | 22 AWG |
| Stranding | Solid |
| Conductor Material | TC - Tinned Copper |
| Color Code | Black & Red |
| Insulation thickness (nom.) | 0.010 in (0.25 mm) |
| Insulation diameter (nom.) | 0.046 in (1.2 mm) |
| Jacket thickness (nom.) | 0.032 in (0.81 mm) |
| Overall cable diameter (nom.) | 0.156 in (3.96 mm) |
| Bulk cable weight | 12 lbs/1000ft |
| Conductor DCR (nom.) | 20.6 Ohm/1000ft |
| Capacitance, Cond-to-Cond (nom.) | 30 pF/ft (98 pF/m) |
| Max. current | 6 Amps per Conductor at 30ºC |
| UL temperature | 80°C |
| Operating temperature | -20°C to +80°C |
| Bend radius (stationary min.) | 1.6 in (41 mm) |
| Bend radius (installation min.) | 1.6 in (41 mm) |
| Max Pull Tension | 16 lbs (7.3 kg) |
| NEC / UL compliance | Article 800, CMG |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2576 |
| Flammability / reaction to fire | UL 1685 FT4 Loading, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| Sustainability | CA Prop 65 |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
