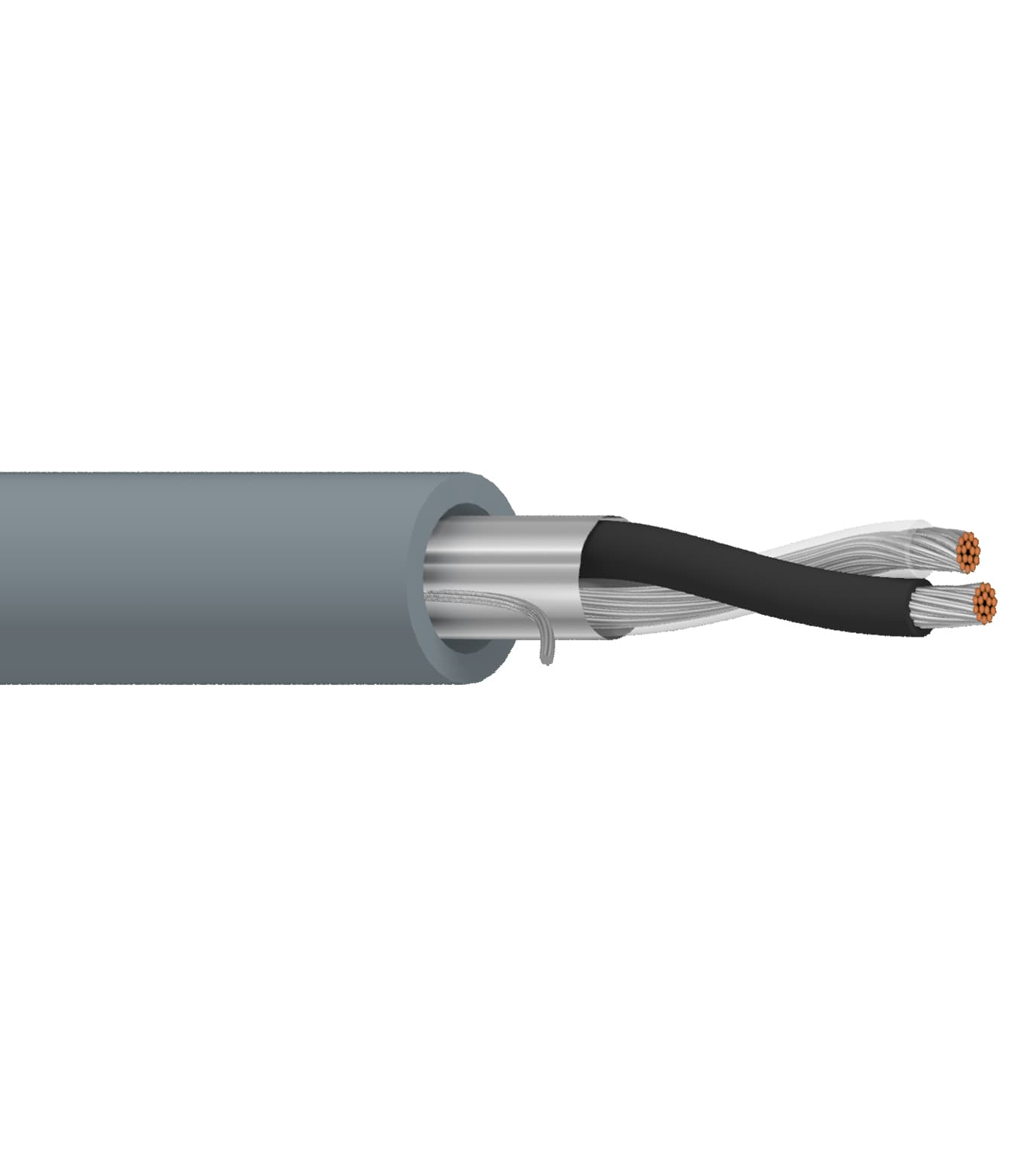

Belden 8762 060, Multi Pair Cable 1 Pair 20 AWG PE PVC Jacket, Chrome Jacket
SKU:Belden 8762 060
● In stock
Description
Belden 8762 060 is a 1 pair, 20 AWG multi pair cable with a PVC outer jacket and an overall Beldfoil® shield. It uses 20 AWG (7x28) tinned copper conductors with PE insulation and includes a 20 AWG (7x28) TC drain wire for grounding. This cable is rated CM and has a Chrome jacket color for identification and routing consistency. It is described for low voltage analog signals (4-20ma, 0-10v, ...), low voltage digital control (24v, …), line level audio, computer communication, and panel wiring.
Belden 8762 060 Key Features
- 1 pair construction with 20 AWG (7x28) tinned copper conductors.
- Overall Beldfoil® shield with 100% coverage and a 20 AWG (7x28) TC drain wire for grounding.
- PVC - polyvinyl chloride outer jacket with a Chrome jacket color for identification.
- Rated CM with UL voltage rating: 300 V (CM), 300 V (UL AWM 2092)).
- Environmental suitability: indoor.
Belden 8762 060 Applications
- Suitable for audio, control, and instrumentation applications where noise rejection is important.
- Designed for low voltage analog signals (4-20ma, 0-10v, ...) in signal and control circuits.
- Supports low voltage digital control (24v, …) for control and communication tasks.
- Includes line level audio connections among the listed use cases.
- Lists computer communication as an intended application.
- Covers panel wiring for organized internal wiring and routing.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor(s) | Electronic, 2 Conductor 20AWG (7x28) Tinned Copper |
| Conductor Material | TC - Tinned Copper |
| Conductor Type | Stranded Conductor |
| Insulation Material | PE - Polyethylene |
| Nom. thickness (insulation) | 0.017 in (0.43 mm) |
| Nom. insulation diameter | 0.070 in (1.8 mm) |
| Color Code | Black, Clear |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield construction | Overall Shield & drain |
| Nom. thickness (jacket) | 0.028 in (0.71 mm) |
| Nom. diameter (jacket) | 0.204 in (5.18 mm) |
| Overall cable diameter (nominal) | 0.204 in (5.18 mm) |
| Nom. conductor DCR | 11.3 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 27 pF/ft (89 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 49 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 56 Ohm |
| Nom. inductance | 0.18 µH/ft (0.59 µH/m) |
| Max. current | 8 Amps per Conductor at 30ºC |
| Nom. outer shield DCR | 8.49 Ohm/1000ft (27.9 Ohm/km) |
| UL temperature | 60°C |
| Operating temperature | -20°C to +60°C |
| Bend radius (stationary min.) | 2.0 in (51 mm) |
| Bend radius (installation min.) | 2.0 in (51 mm) |
| Max Pull Tension | 38 lbs (17 kg) |
| Bulk cable weight | 21 lbs/1000ft |
| NEC / UL compliance | Article 800, CM |
| CEC / C(UL) compliance | CM |
| AWM compliance | AWM 2092 |
| Flammability / reaction to fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8762 060, 8762 060100, 8762 060250, 8762 060500, 8762 0601000, UPC 612825215363, UPC 612825215400, UPC 612825215417, UPC 612825215370, UPC 612825215394, UPC 612825215387 |
| Priced Per | FT |
