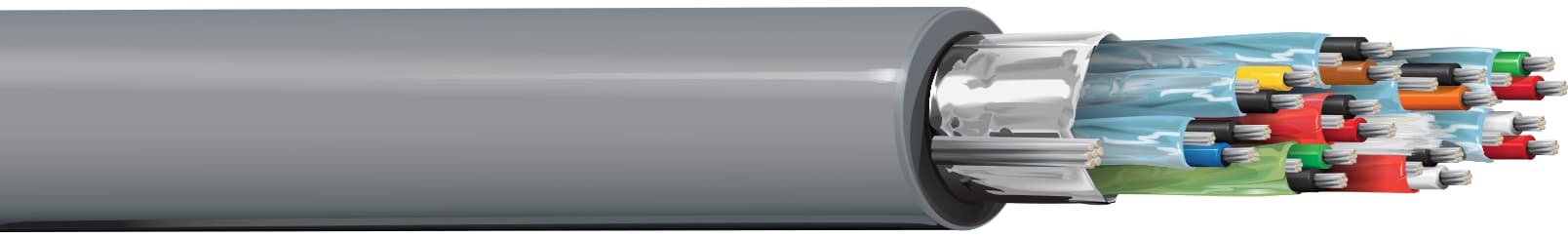

Belden 8764 060, Multi Conductor Cable 9C 22 AWG SHPR PVC
SKU:Belden 8764 060
● In stock
Description
Belden 8764 060 is an audio, control & instrument cable with 9 twisted pairs of 22 AWG solid TC - Tinned Copper conductors and PVC - Polyvinyl Chloride insulation. Each pair is shielded with Beldfoil® tape (100% coverage) and includes a 22 AWG (Solid) TC drain wire to help reduce noise in sensitive circuits. It features a PVC - Polyvinyl Chloride jacket in Chrome and is rated UL Voltage Rating: 300 V for indoor installations.
Belden 8764 060 Key Features
- 9 twisted pairs built with 22 AWG solid TC - Tinned Copper conductors.
- Individually shielded pairs using Beldfoil® tape with 100% coverage.
- Includes a 22 AWG (Solid) TC drain wire for each pair to help reduce noise in sensitive circuits.
- PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride jacket for durable indoor construction.
- UL Voltage Rating: 300 V.
Belden 8764 060 Applications
- Use it for low voltage analog signals (4-20ma, 0-10v, ...) where consistent signal transmission is needed.
- For control and automation wiring, it supports low voltage digital control (24v, …).
- In audio and signal distribution setups, it works for line level audio connections.
- For computer communication links, it can be used where multi-pair signal cabling is required.
- In indoor panels, it fits panel wiring applications for organizing and routing multiple signal circuits.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Elements | Pair(s) |
| No. of elements | 9 |
| Conductor size | 22 AWG |
| Stranding | Solid |
| Conductor Material | TC - Tinned Copper |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green |
| Inner shield type | Tape |
| Inner shield material | Bi-Laminate (Alum+Poly) |
| Drainwire type | 22 AWG (Solid) TC |
| Outer shield | No Shield |
| Jacket separator | Tape |
| Ripcord | Yes |
| Jacket Color | Chrome |
| Insulation thickness (nom.) | 0.013 in (0.33 mm) |
| Insulation diameter (nom.) | 0.052 in (1.3 mm) |
| Jacket thickness (nom.) | 0.04 in (1.0 mm) |
| Overall cable diameter (nominal) | 0.425 in |
| Bulk cable weight | 112 lbs/1000ft |
| Nom. conductor DCR | 18.54 Ohm/1000ft |
| Nom. inner shield DCR | 0.16 Ohm/1000ft (0.52 Ohm/km) |
| Nom. capacitance cond-to-cond | 40 pF/ft (130 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 77 pF/ft (250 pF/m) |
| Nom. inductance | 0.19 µH/ft (0.62 µH/m) |
| Max. current | 2.03 Amps per Conductor at 25ºC |
| Operating | -20°C To +80°C |
| UL temperature | 80°C |
| Stationary min. bend radius | 4.25 in (108 mm) |
| Installation min. bend radius | 4.25 in |
| Max Pull Tension | 89.7 lbs (40.7 kg) |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | UL 1685 FT4 Loading |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8764 060, 8764 060100, 8764 060250, 8764 060500, 8764 0601000, UPC 612825215455 |
| Priced Per | FT |
