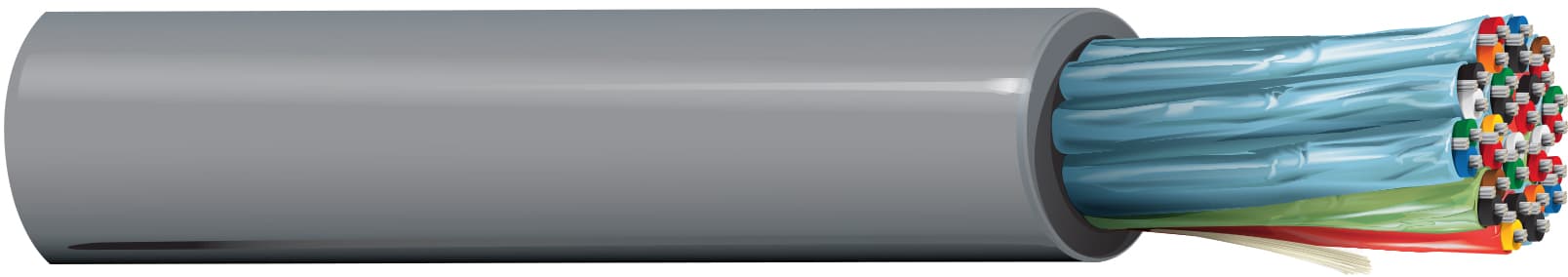

Belden 8766 060, Multi Conductor Cable 15C 22 AWG Shielded PVC
SKU:Belden 8766 060
● In stock
Description
Belden 8766 060 is an audio, control & instrument cable with 15 twisted pairs of 22 AWG solid tinned copper conductors, PVC insulation, and an overall PVC jacket. Each pair is individually shielded with Beldfoil® (100% coverage) and includes a 22 AWG solid tinned copper drain wire to help reduce noise in sensitive circuits. It carries a 300 V UL voltage rating and is designed for operation from -20°C to +80°C.
Belden 8766 060 Key Features
- Includes 15 twisted pairs built with 22 AWG solid tinned copper conductors.
- Provides individually shielded pairs using Beldfoil® with 100% coverage.
- Includes a 22 AWG solid TC drainwire to help reduce noise in sensitive circuits.
- Uses PVC - Polyvinyl Chloride insulation with an overall PVC - Polyvinyl Chloride jacket.
- Rated 300 V UL with an operating temperature of -20°C to +80°C.
Belden 8766 060 Applications
- Supports low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation circuits.
- Handles low voltage digital control (24v, …) when multiple signal pairs are needed in one run.
- Enables line level audio connections that benefit from individually shielded pairs.
- Meets the needs of computer communication links where paired conductors and shielding are required.
- Commonly used for panel wiring to organize and route multiple signal circuits.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Category | Audio, Control & Instrument Cable |
| Pairs | 15 |
| Conductor size | 22 |
| Conductor stranding | Solid |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. thickness (insulation) | 0.013 in (0.33 mm) |
| Nom. insulation diameter | 0.052 in (1.3 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue |
| Inner shield type | Tape |
| Inner shield material | Bi-Laminate (Alum+Poly) |
| Inner shield coverage | 100% |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Nom. thickness (jacket) | 0.045 in (1.1 mm) |
| Nom. diameter | 0.525 in |
| Jacket Color | Chrome |
| Nom. conductor DCR | 20.6 Ohm/1000ft |
| Nom. inner shield DCR | 11.9 Ohm/1000ft (39.0 Ohm/km) |
| Nom. capacitance cond-to-cond | 40 pF/ft (130 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 77 pF/ft (250 pF/m) |
| Nom. inductance | 0.19 µH/ft (0.62 µH/m) |
| Max. current | 1.4 Amps per Conductor at 25ºC |
| UL temperature | 80°C |
| Stationary min. bend radius | 5.25 in (133 mm) |
| Installation min. bend radius | 5.25 in |
| Max Pull Tension | 234 lbs (106 kg) |
| Bulk cable weight | 173 lbs/1000ft |
| Flammability / reaction to fire | UL1685 FT4 Loading, FT4 |
| NEC / UL compliance | Article 800, CMG, MPG |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG, MPG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8766 060, 8766 060100, 8766 060250, 8766 060500, 8766 0601000, UPC 612825215462 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
