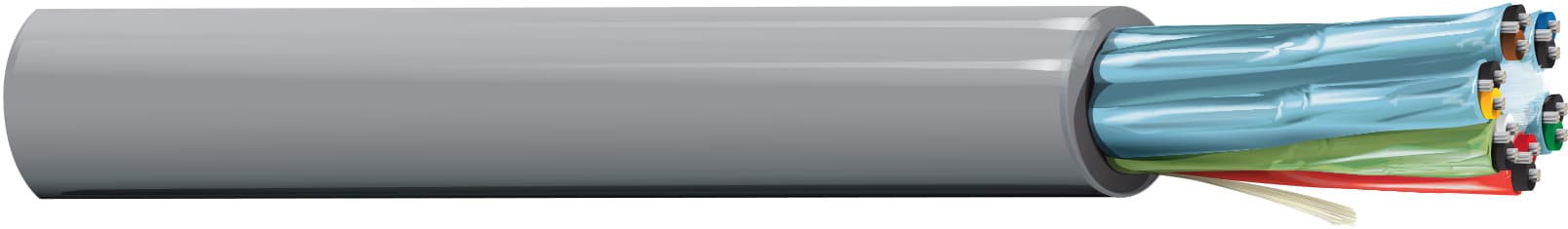

Belden 8768 060, Multi Conductor Cable 6C 22 AWG Shielded PVC
SKU:Belden 8768 060
● In stock
Description
Belden 8768 060 is an audio, control & instrument cable with 6 twisted pairs of 22 AWG solid TC - Tinned Copper conductors, PVC insulation, and a PVC - Polyvinyl Chloride jacket. Each pair is individually shielded with Bi-Laminate (Alum+Poly) tape at 100% coverage and includes a 22 AWG (Solid) TC drainwire to support low-voltage signal integrity. It carries a UL Voltage Rating of 300 V and is specified for -20°C to +80°C operation for indoor installations.
Belden 8768 060 Key Features
- 6 twisted pairs built with 22 AWG solid TC - Tinned Copper conductors for audio, control, and instrument signal wiring.
- Individually shielded pairs using Bi-Laminate (Alum+Poly) tape with 100% coverage to help manage noise in sensitive circuits.
- Includes a 22 AWG (Solid) TC drainwire for each pair to support shield termination.
- PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride jacket for indoor cable runs.
- Rated UL Voltage Rating: 300 V with operating temperature: -20°C to +80°C.
Belden 8768 060 Applications
- Supports low voltage analog signals such as 4-20ma and 0-10v in control and instrumentation circuits.
- Accommodates low voltage digital control (24v, …) where multiple signal pairs are needed in a single run.
- Fits line level audio wiring where individually shielded pairs help reduce interference.
- Serves computer communication links that call for paired conductors and shielded pair construction.
- Installs well for indoor panel wiring where organized multi-pair terminations are required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown |
| Nom. insulation thickness | 0.013 in (0.33 mm) |
| Nom. insulation diameter | 0.052 in (1.3 mm) |
| Nom. jacket thickness | 0.037 in (0.94 mm) |
| Overall cable diameter (nominal) | 0.379 in |
| Jacket Color | Chrome |
| Bulk cable weight | 77 lbs/1000ft |
| Inner shield type | Tape |
| Inner shield material | Bi-Laminate (Alum+Poly) |
| Inner shield coverage | 100% |
| Outer shield | No Shield |
| Nom. conductor DCR | 20.6 Ohm/1000ft |
| Nom. inner shield DCR | 13.2 Ohm/1000ft (43.3 Ohm/km) |
| Nom. capacitance cond-to-cond | 40 pF/ft (130 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 77 pF/ft (250 pF/m) |
| Nom. inductance | 0.19 µH/ft (0.62 µH/m) |
| Max. current | 4.2 Amps per Conductor at 30ºC |
| Environmental suitability | Indoor |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 3.79 in (96.3 mm) |
| Bend radius (installation min.) | 3.79 in |
| Max Pull Tension | 101.4 lbs (45.99 kg) |
| Flammability / reaction to fire | UL1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG, MPG |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG, MPG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8768 060, 8768 060100, 8768 060250, 8768 060500, 8768 0601000, UPC 612825215516, UPC 612825215509, UPC 612825215523 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
