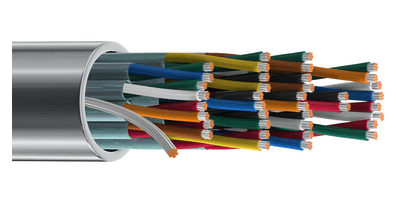

Belden 8769 060, Multi Conductor 19C 22 AWG HDPE PVC CM Rated

Belden 8769 060 is a 19-pair, 22 AWG audio, control & instrument cable with a PVC - Polyvinyl Chloride jacket for indoor installations. Each twisted pair uses 22 AWG stranded (7x30) TC - Tinned Copper conductors with PP - Polypropylene insulation and an individually applied Beldfoil® shield (100% coverage) to help reduce noise and crosstalk. A 22 AWG (7x30) TC drainwire supports termination, and the cable is rated UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919) with an Operating temperature: -20°C to +80°C.

Belden 8769 060 Key Features

• 19 twisted pairs support multi-channel audio, control, and instrumentation wiring in a single run.
• 22 AWG stranded (7x30) TC - Tinned Copper conductors with PP - Polypropylene insulation support consistent pair construction.
• Individually shielded pairs with Beldfoil® (100% coverage) help reduce noise and crosstalk between pairs.
• A 22 AWG (7x30) TC drainwire supports easier shield termination.
• The PVC - Polyvinyl Chloride outer jacket is designed for indoor environmental suitability.

Belden 8769 060 Applications

• Commonly used to carry low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation circuits.
• Supports low voltage digital control (24v, …) where multiple signal pairs are needed in one cable.
• Suitable for line level audio signal runs where individually shielded pairs help manage noise and crosstalk.
• Used for computer communication wiring where paired conductors are required.
• Often used for panel wiring in indoor installations.
