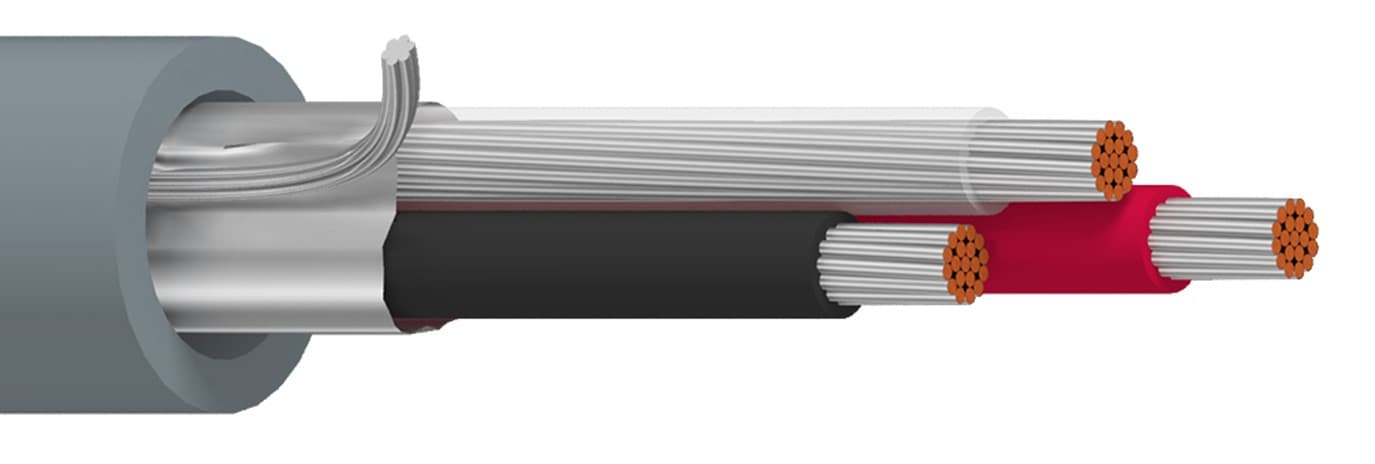

Belden 8770 060, Multi Conductor Cable 3C 18 AWG PE PVC Jacket, Chrome Jacket
Description
Belden 8770 060 is a 3-conductor 18 AWG multi-conductor cable with a PVC outer jacket and an overall Beldfoil® shield for low-voltage signal and control wiring. It uses 18 AWG stranded (16x30) tinned copper conductors with PE insulation and includes a 20 AWG (7x28) TC drainwire for grounding. This cable is rated 300 V (CM), 300 V (UL AWM 2093) and features a Chrome jacket color for identification.
Belden 8770 060 Key Features
- 3 conductors with 18 AWG stranded (16x30) TC - tinned copper conductors.
- PE - polyethylene insulation with color code: Black, Red, Clear.
- Overall Beldfoil® shield with 100% coverage for noise reduction.
- 20 AWG (7x28) TC drainwire for grounding.
- PVC - polyvinyl chloride outer jacket in Chrome.
- UL voltage rating: 300 V (CM), 300 V (UL AWM 2093).
Belden 8770 060 Applications
- Use it for low voltage analog signals, including 4-20ma and 0-10v circuits.
- Support low voltage control wiring, including 24v control circuits.
- Choose it for line level audio signal connections.
- Apply it in voice communications wiring.
- Install it for panel wiring in control and signal distribution panels.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation thickness (nom.) | 0.018 in (0.46 mm) |
| Insulation diameter (nom.) | 0.082 in (2.1 mm) |
| Jacket thickness (nom.) | 0.033 in (0.84 mm) |
| Overall cable diameter (nom.) | 0.246 in (6.25 mm) |
| Bulk cable weight | 36 lbs/1000ft |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Nom. outer shield DCR | 8.08 Ohm/1000ft (26.5 Ohm/km) |
| Nom. conductor DCR | 7.06 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 24 pF/ft (79 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 48 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 69 Ohm |
| Nom. inductance | 0.18 µH/ft (0.59 µH/m) |
| Max. current | 14 Amps per Conductor at 30ºC |
| UL temperature | 60°C |
| Operating temperature | -20°C to +60°C |
| Bend radius (stationary min.) | 0.16 in (4.1 mm) |
| Bend radius (installation min.) | 2.5 in (64 mm) |
| Max Pull Tension | 75 lbs (34 kg) |
| Environmental suitability | Indoor |
| NEC / UL compliance | Article 800, CM |
| AWM compliance | AWM 2093 |
| CEC / C(UL) compliance | CM |
| Flammability / reaction to fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| Sustainability | CA Prop 65 |
| Plenum number | 88770 |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8770 060, 8770 060100, 8770 060250, 8770 060500, 8770 0601000, UPC 612825215608, UPC 612825215660, UPC 612825215615, UPC 612825215646 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
