Belden 8772 060, Multi Conductor Cable 3C 20 AWG PE PVC Jacket
SKU:Belden 8772 060
● In stock
Description

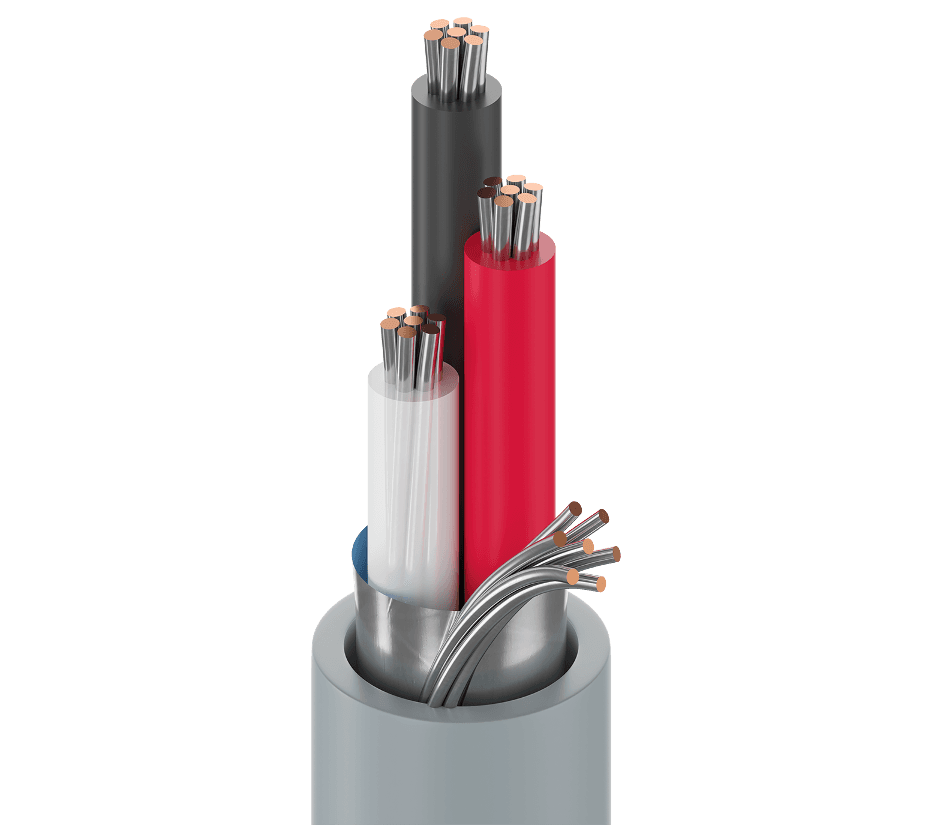

Belden 8772 060 is a 3 conductor 20 AWG multi-conductor cable designed for reliable signal and control wiring in indoor environments. It uses 20 AWG (7x28) tinned copper conductors with PE insulation and an overall tape shield with 100% coverage, plus a 20 AWG (7x28) TC drainwire for grounding. The cable is finished with a PVC outer jacket and carries a UL voltage rating of 300 V (CM), 300 V (UL AWM 2093). It is specified for low voltage analog signals (4-20ma, 0-10v, ...), low voltage control (24v, …), line level audio, voice communications, and panel wiring.
Belden 8772 060 Key Features
- This cable features a 3 conductor 20 AWG construction with 20 AWG (7x28) tinned copper conductors.
- It uses PE insulation with color code: Black, Red, Clear.
- It includes an overall tape shield with Bi-Laminate (Alum+Poly) material and 100% shield coverage.
- A 20 AWG (7x28) TC drainwire is included with shield construction: Overall Shield & drain.
- It has a PVC - Polyvinyl Chloride outer jacket.
- UL voltage rating: 300 V (CM), 300 V (UL AWM 2093).
- Environmental suitability: Indoor.
Applications
- Low voltage analog signals (4-20ma, 0-10v, ...) are supported where consistent signal transmission is needed.
- Low voltage control (24v, …) wiring is supported in control and automation circuits.
- Line level audio connections are suitable where shielding is used to help manage noise in sensitive circuits.
- Voice communications wiring can be used in indoor installations.
- Panel wiring is intended where organized multi-conductor runs are required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation thickness (nom.) | 0.017 in (0.43 mm) |
| Insulation diameter (nom.) | 0.070 in (1.8 mm) |
| Jacket thickness (nom.) | 0.033 in (0.84 mm) |
| Jacket diameter (nom.) | 0.218 in (5.54 mm) |
| Overall cable diameter (nom.) | 0.218 in (5.54 mm) |
| Bulk cable weight | 28 lbs/1000ft |
| Nom. conductor DCR | 11.1 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 27 pF/ft (89 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 51 pF/ft (170 pF/m) |
| Max. current | 8 Amps per Conductor at 30ºC |
| Nom. outer shield DCR | 8.08 Ohm/1000ft (26.5 Ohm/km) |
| UL temperature | 60°C |
| Operating temperature | -20°C to +60°C |
| Bend radius (stationary min.) | 2.2 in (56 mm) |
| Bend radius (installation min.) | 2.2 in (56 mm) |
| Max Pull Tension | 50.4 lbs (22.9 kg) |
| NEC / UL compliance | Article 800, CM |
| CEC / C(UL) compliance | CM |
| AWM compliance | AWM 2093 |
| Flammability / reaction to fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Priced Per | FT |
