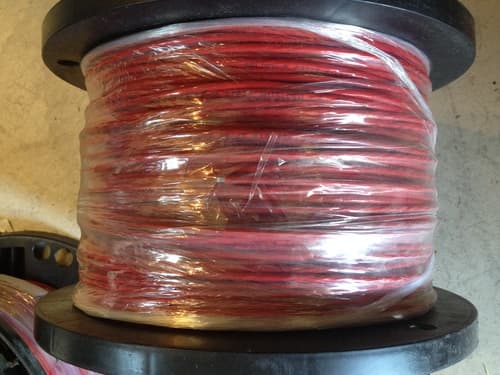

Belden 87777 002, Multi Conductor Cable 22 AWG 3P Shielded Jacket

Belden 87777 002 is an audio, control & instrument multi-conductor cable with 22 AWG stranded (7x30) TC - tinned copper conductors arranged as 3 twisted pairs (6 conductors total). It features FEP - Fluorinated Ethylene Propylene insulation and a PVDF - Polyvinylidene Fluoride jacket, with an operating temperature range of -20°C To +150°C. Each pair is individually shielded with Beldfoil® (Z-Fold®) Bi-Laminate (Alum+Poly) tape at 100% coverage and includes a 22 AWG TC - tinned copper drain wire. It carries a 300 V RMS UL voltage rating and NEC/(UL) compliance: CMP with Plenum (Y/N): Yes.

Belden 87777 002 Key Features

• 22 AWG stranded (7x30) TC - tinned copper conductors arranged as 3 twisted pairs (6 conductors total).
• FEP - Fluorinated Ethylene Propylene insulation with a PVDF - Polyvinylidene Fluoride jacket.
• Individually shielded pairs using Beldfoil® (Z-Fold®) Bi-Laminate (Alum+Poly) tape with 100% coverage, plus a 22 AWG TC - tinned copper drain wire.
• NEC/(UL) compliance: CMP and CEC/C(UL) compliance: CMP with Plenum (Y/N): Yes.
• UL voltage rating: 300 V RMS.
• Operating temperature range: -20°C To +150°C.

Belden 87777 002 Applications

• Suitable for extreme high temperature environments where stable operation is required.
• Designed for chemical resistant installations where exposure to chemicals is a concern.
• Supports outdoor and burial applications where the cable may be installed outside or placed underground.
• Used for low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation circuits.
• Used for low voltage digital control (24v, …) in automation and control wiring.
• Suitable for line level audio signal runs.
• Supports voice communications wiring.
• Used for panel wiring inside control panels and equipment.
