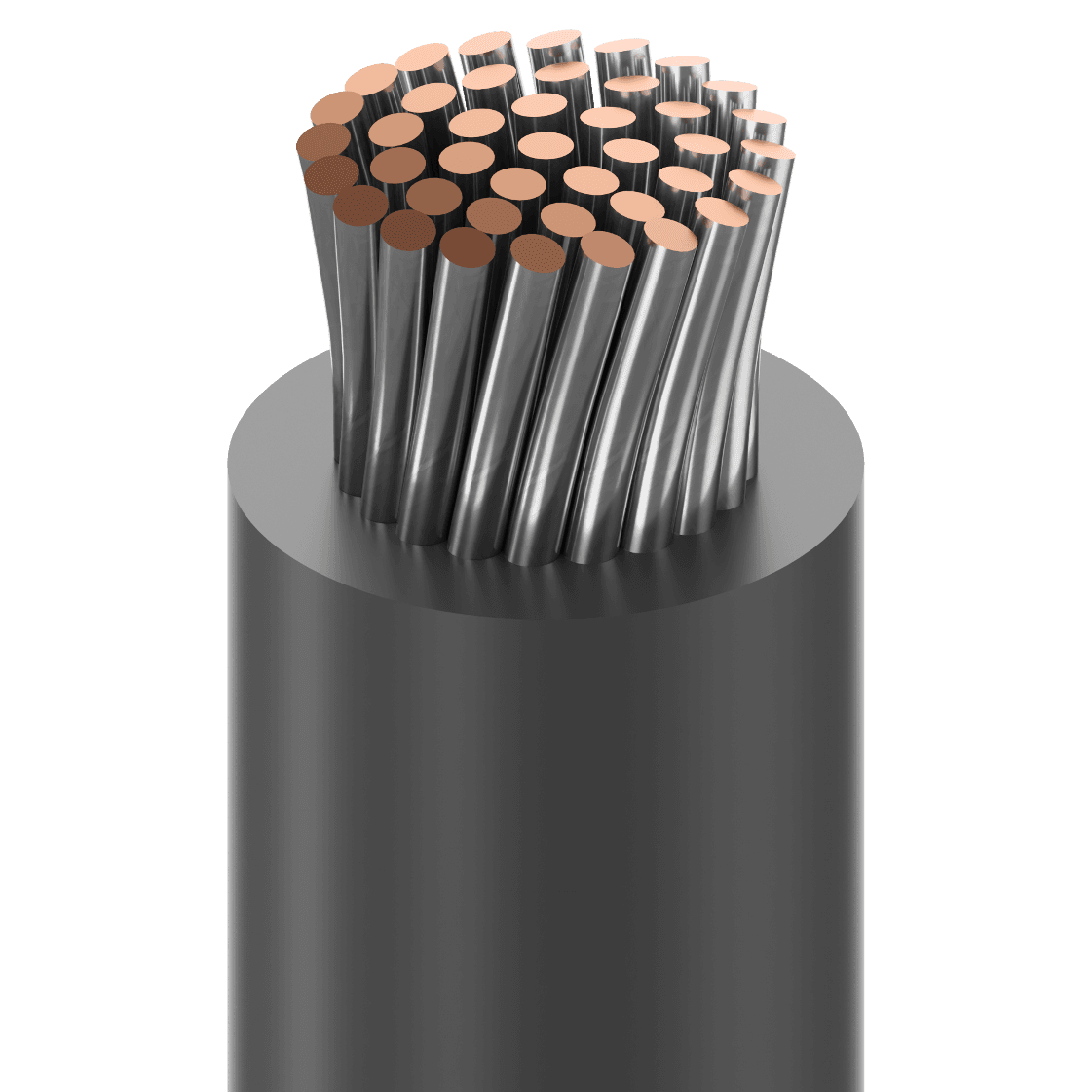

Belden 8916 009, Hook Up Wire 1C 14 AWG Tinned Copper White PVC

Belden 8916 009 is a low temp plastic lead wire for internal wiring in electronic and electrical equipment. It features a 14 AWG (41x30) TC - Tinned Copper conductor with PVC - Polyvinyl Chloride insulation in White. This hook up wire is rated 600 V RMS and 105°C, with an operating temperature range of -30°C To +105°C. It supports a max current of Single Conductor in free air @ 30ºC: 39 A and meets AWM 1015, AWM 1230, and CSA TYPE TEW.

Belden 8916 009 Key Features

• A 14 AWG (41x30) TC - Tinned Copper conductor supports dependable internal wiring.
• PVC - Polyvinyl Chloride insulation in White supports flexible routing.
• Rated 600 V RMS with a 105°C UL temperature rating.
• Operating temperature range: -30°C To +105°C.
• Max. current: Single Conductor in free air @ 30ºC: 39 A.
• Compliance includes AWM 1015, AWM 1230, and CEC / C(UL) compliance: TEW.

Belden 8916 009 Applications

• Use it for inter-connection circuits where dependable internal wiring is required.
• Choose it for internal wiring of computer and electronic equipments.
• Apply it for internal wiring of appliances in electronic and electrical equipment.
• Use it as machine tool wire for internal wiring needs.
