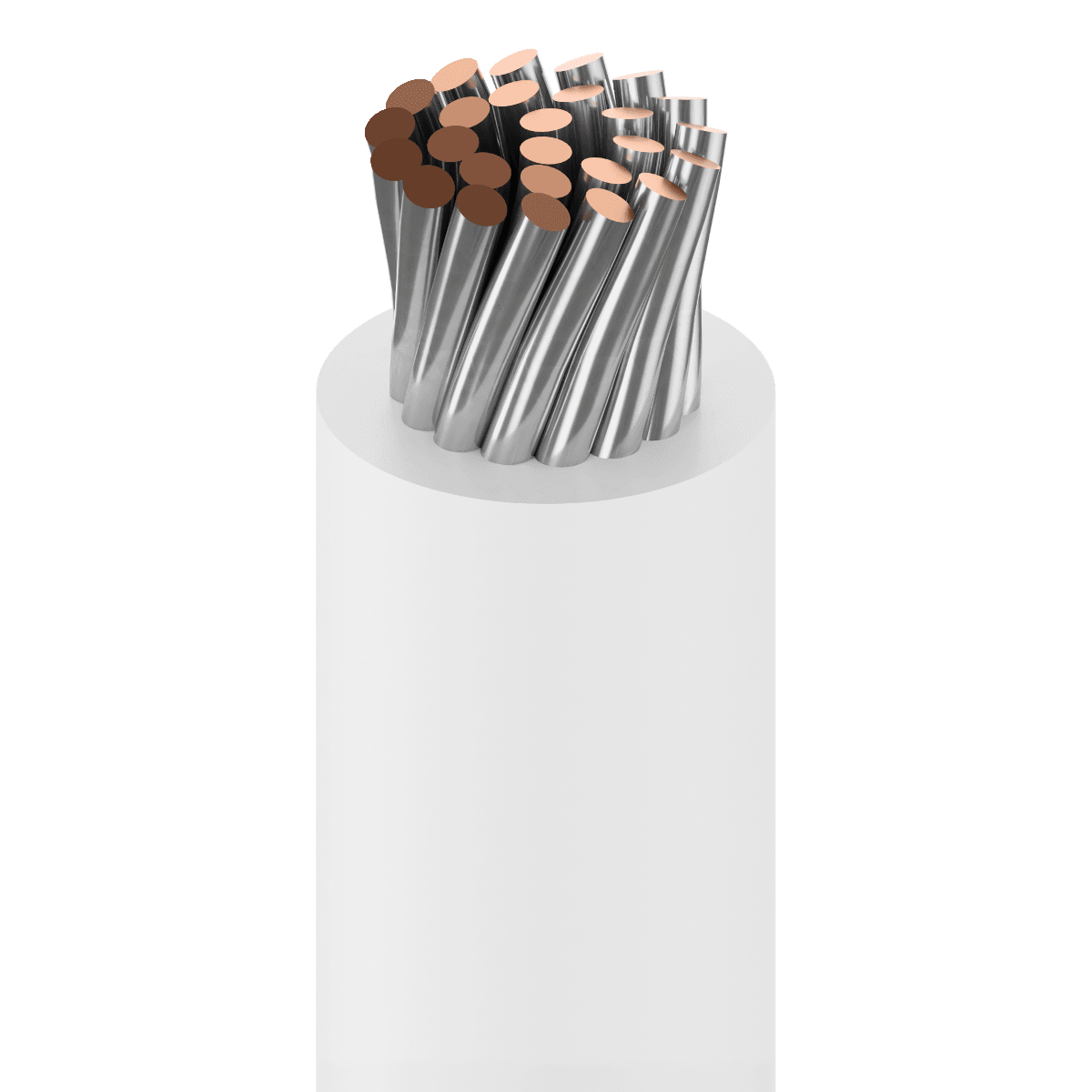

Belden 8917 009, Hook Up Wire 1C 16 AWG Tinned Copper White PVC
SKU:Belden 8917 009
● In stock
Description
Belden 8917 009 is a low temp plastic lead wire for inter-connection circuits and internal wiring in computer and electronic equipments, appliances, and machine tool wire applications. It is a 1-conductor 16 AWG (26x30) hook up wire with a TC - Tinned Copper conductor and PVC - Polyvinyl Chloride insulation in White. This wire is rated 600 V RMS and 105°C, with an operating range of -30°C To +105°C. It meets AWM 1015, AWM 1230, CSA TYPE TEW, and VW-1 flammability.
Belden 8917 009 Key Features
- Features a 1-conductor 16 AWG (26x30) construction for hook up wire and internal wiring needs.
- Uses a TC - Tinned Copper conductor with PVC - Polyvinyl Chloride insulation in White.
- Rated 600 V RMS and 105°C, with an operating range of -30°C To +105°C.
- Supports compliance with AWM 1015, AWM 1230, CSA TYPE TEW, and VW-1.
Belden 8917 009 Applications
- Supports inter-connection circuits where a low temp plastic lead wire is specified.
- Used for internal wiring of computer and electronic equipments.
- Suitable for internal wiring of appliances.
- Used in machine tool wire applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 1 |
| Conductor size | 16 AWG |
| Stranding | 26x30 |
| Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Color | White |
| Shielding | Not Shielded |
| Nom. thickness | 0.032 in (0.81 mm) |
| Nom. insulation diameter | 0.123 in (3.12 mm) |
| Overall cable diameter (nominal) | 0.123 in (3.12 mm) |
| Bulk cable weight | 14 lbs/1000ft |
| UL Voltage Rating | 600 V RMS |
| Nom. conductor DCR | 4.0 Ohm/1000ft |
| Max. current | Single Conductor in free air @ 30ºC: 26 A |
| UL temperature | 105°C |
| Operating | -30°C To +105°C |
| Bend radius (stationary min.) | 1.23 in (31.2 mm) |
| Bend radius (installation min.) | 1.23 in (31.2 mm) |
| Max Pull Tension | 37 lbs (17 kg) |
| Environmental suitability | Indoor, Outdoor |
| NEC / UL compliance | Article 310, MTW |
| AWM compliance | AWM 1015, AWM 1230, CSA AWM I A/B |
| CEC / C(UL) compliance | TEW |
| Flammability / reaction to fire | VW-1 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Manufacturer Marking | Low Temp Plastic Lead Wire, 16AWG (26x30) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C |
| Priced Per | FT |
