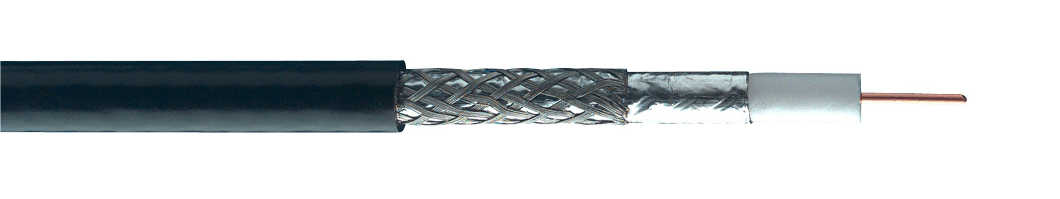

Belden 9248 010, Coax 75 Ohm 18 AWG PE FRPVC Black
Description
Belden 9248 010 is a 75 Ohm RG-6 coaxial cable designed for reliable signal performance in indoor/outdoor installations. It features an 18 AWG Solid 0.04 in BC - Bare Copper conductor and PE - Polyethylene (Foam) insulation with Gas Injected construction. Shielding consists of a Tri-Laminate (Alum+Poly+Alum), Duofoil®, 100% tape with a Tinned Copper (TC), 60% braid over foil. The cable is finished with a Black PVC - Polyvinyl Chloride jacket.
Belden 9248 010 Key Features
- RG-6 coaxial construction with 75 Ohm nominal characteristic impedance.
- 18 AWG Solid BC - Bare Copper conductor with 0.04 in nominal diameter.
- PE - Polyethylene (Foam) insulation with Gas Injected design and 0.18 in nominal diameter.
- Shield type: Both, braid over foil, using Tri-Laminate (Alum+Poly+Alum), Duofoil®, 100% tape plus Tinned Copper (TC), 60% braid.
- Black PVC - Polyvinyl Chloride jacket with 0.27 in nominal diameter for indoor/outdoor environmental space.
- UL voltage rating: 300 V RMS; Voltage Rating [V]: 30 V RMS.
- UL temperature rating: 80°C; Operating Temperature Range: -40°C To +80°C.
- Compliance listings include NEC/(UL) compliance: CM, CEC/C(UL) compliance: CM, and UL AWM style compliance: AWM 1354 (30 V 80°C).
Belden 9248 010 Applications
- Enables reliable signal performance where a 75 Ohm coaxial cable is required.
- Fits indoor/outdoor installations where the cable may be routed through either environment.
- Reduces interference in installations that benefit from a shield design using foil plus braid.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Coax count | 1 |
| Conductor(s) | 1 |
| RG type | 6 |
| Series type | 6 |
| Plenum (Y/N) | No |
| Plenum number | 89248 and 82248 |
| Footnote | C - CRATE REEL PUT-UP. |
| Nominal conductor DCR | 6.4 Ohm/1000ft |
| Nominal outer shield DCR | 5.6 Ohm/1000ft |
| Nom. capacitance (Conductor to Shield) | 16.2 pF/ft |
| Nominal inductance | 0.106 µH/ft |
| Nominal delay | 1.24 ns/ft |
| Nominal velocity of propagation (VP) [%] | 82% |
| Return loss (5-450 MHz) | 23 dB |
| Insertion loss @ 1 MHz | 0.3 dB/100ft |
| Insertion loss 5 MHz | 0.54 dB/100ft |
| Insertion loss @ 10 MHz | 0.7 dB/100ft |
| Insertion loss @ 50 MHz | 1.5 dB/100ft |
| Insertion loss @ 100 MHz | 2 dB/100ft |
| Insertion loss @ 200 MHz | 2.8 dB/100ft |
| Insertion loss @ 400 MHz | 4 dB/100ft |
| Insertion loss @ 700 MHz | 5.3 dB/100ft |
| Insertion loss @ 900 MHz | 6.1 dB/100ft |
| Insertion loss @ 1000 MHz | 6.5 dB/100ft |
| Insertion loss 1500 MHz | 8.3 dB/100ft |
| Bulk cable weight | 35 lbs/1000ft |
| Maximum recommended pulling tension | 44 lbs |
| Minimum minor axis bend radius | 2.75 in |
| CPR Euroclass | Eca |
| UL flammability | UL1685 UL Loading |
| IEC flammability | IEC 60332-1-2 |
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2003/11/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU directive compliance | EU Directive 2003/11/EC (BFR) |
| EU CE mark | Yes |
| MII Order #39 (China RoHS) | Yes |
| Suitability - indoor | Yes |
| Suitability - Outdoor | Yes |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
