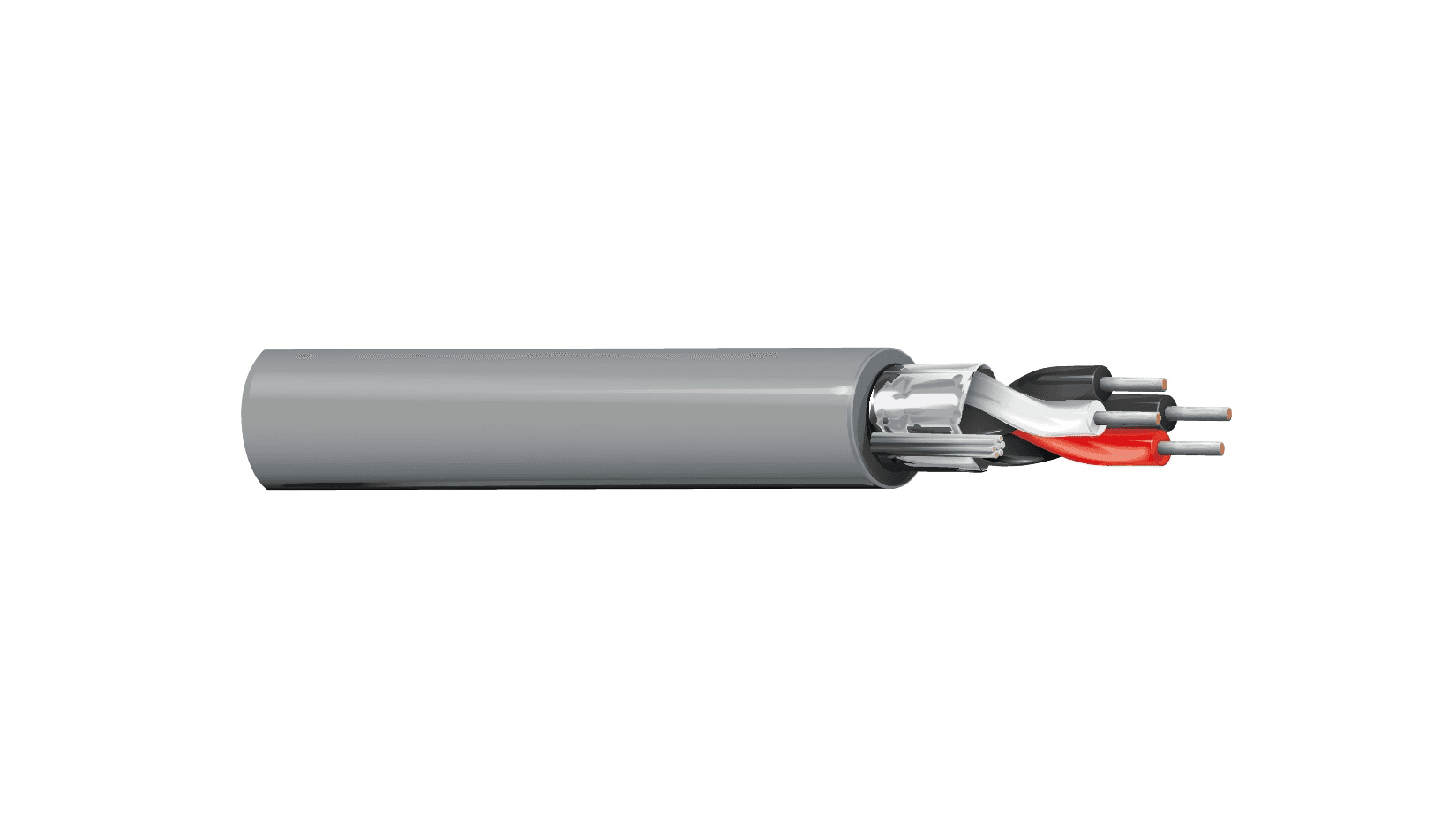

Belden 9302 060U1000 2-Pair 22 AWG Solid Beldfoil PVC Jacket
SKU:Belden 9302 060U1000
$2,340.00
● In stock
Description
Belden 9302 060U1000 is an audio, control & instrument cable with 2-pair, 22 AWG solid tinned copper conductors. It includes twisted pairs, PVC insulation, an overall Beldfoil® shield (100% coverage), a 22 AWG stranded tinned copper drain wire, and a chrome PVC jacket.
Applications
- Use this cable for audio, control, and instrument signal runs where twisted pairs help organize and route multiple circuits in a single cable.
- Choose it for installations that require an overall Beldfoil® shield (100% coverage) to provide a continuous shield layer around the cable core.
- Terminate it where a dedicated drain wire supports shield connection.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 2 Pairs |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Solid |
| Insulation Material | PVC - Polyvinyl Chloride |
| Shield Type | Overall Beldfoil + Drain Wire |
| Jacket Material | PVC - Polyvinyl Chloride |
| Conductor Material | Tinned Copper |
| Shield (Y N) | Yes |
| Approvals | CMG |
| Item Type | Belden Multi-Pair Cable |
| Weight /LBS per 1000FT | 27 |
| Other Part Numbers | 9302 060U1000 UPC 612825227243 |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
