Belden 9302 060, Multi Conductor Audio Control Cable 2 Pair 22 AWG PVC

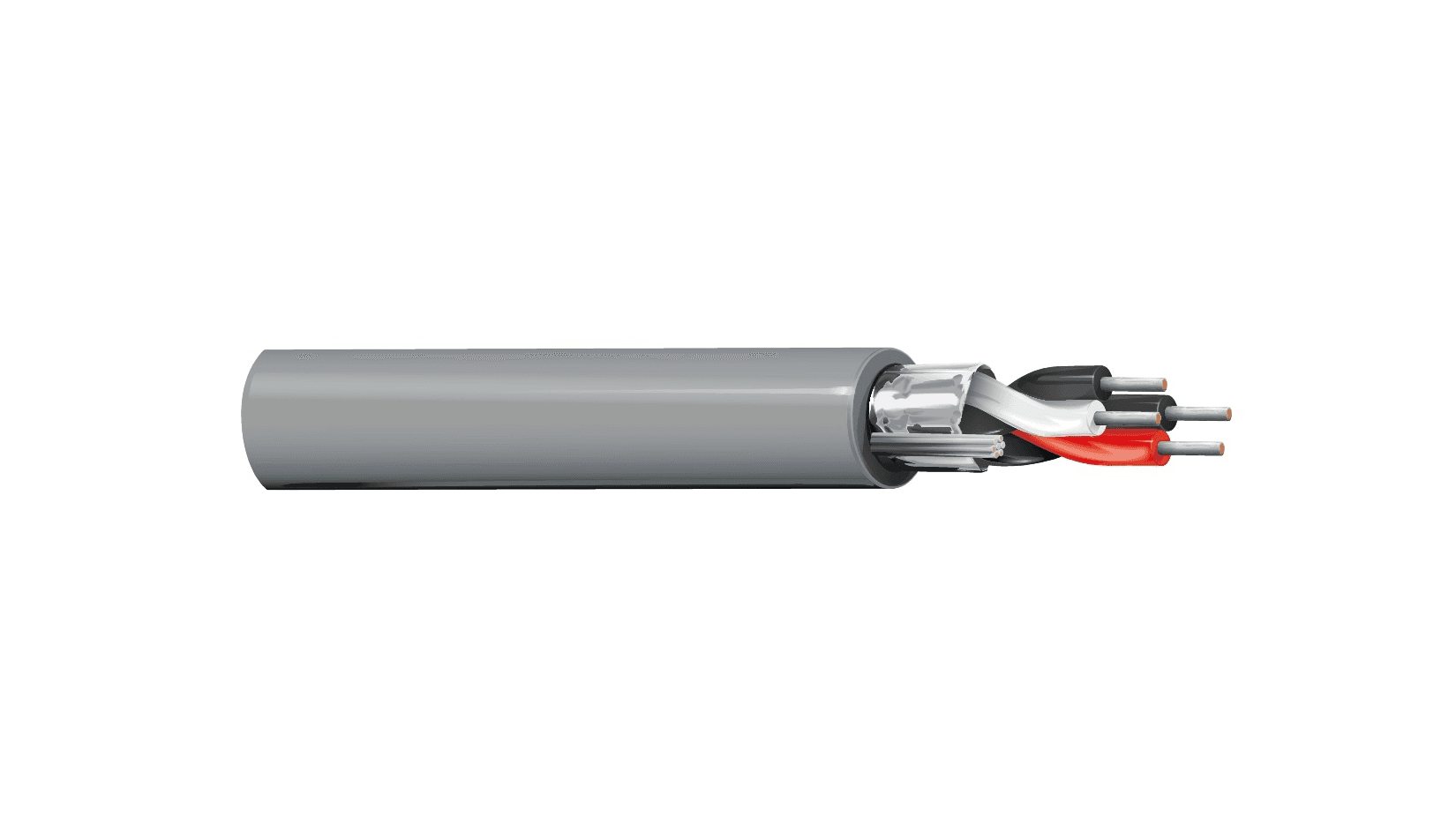

Belden 9302 060 is a multi conductor audio, control & instrument cable designed for reliable signal transmission in indoor installations. It features 2 twisted pairs of 22 AWG solid tinned copper conductors with PVC insulation, plus an overall Beldfoil® shield with 100% coverage and a 22 AWG (7x30) TC drain wire. A PVC jacket completes the construction, and the cable is rated UL voltage rating: 300 V and UL temperature: 80°C.

Belden 9302 060 Key Features

• 2 twisted pairs of 22 AWG solid tinned copper conductors for consistent signal transmission.
• PVC insulation with color code: Black & Red, Black & White for straightforward conductor identification.
• Overall Beldfoil® shield with 100% coverage and bi-laminate (Alum+Poly) tape to support noise rejection.
• 22 AWG (7x30) TC drain wire to support grounding and termination.
• PVC jacket in Chrome for durable protection in indoor environments.

Belden 9302 060 Applications

• Use for low voltage analog signals (4-20ma, 0-10v, ...) where stable signal transmission is needed indoors.
• Support low voltage digital control (24v, …) in control and instrumentation wiring.
• Choose for line level audio connections where shielding helps reduce unwanted noise.
• Apply in computer communication links in indoor environments.
• Commonly used for panel wiring to connect instruments and control devices within enclosures.
