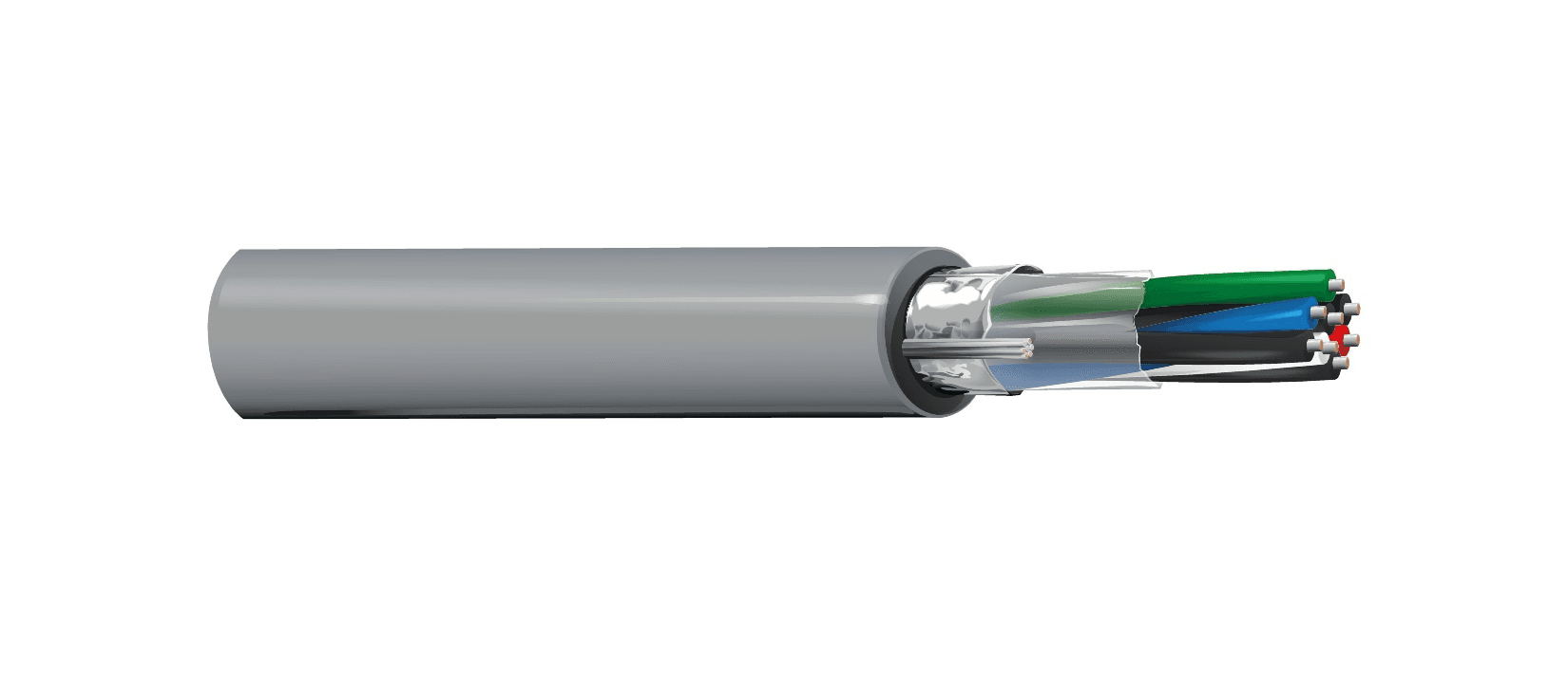

Belden 9305 060, Multi Conductor Cable 4 Pair 22 AWG PVC FS PVC

Belden 9305 060 is an audio, control & instrument cable with 4 twisted pairs of 22 AWG solid TC - Tinned Copper conductors and PVC - Polyvinyl Chloride insulation. It features an overall tape shield made from Bi-Laminate (Alum+Poly) with 100% coverage, plus a 22 AWG (7x30) TC drainwire to help reduce noise in signal wiring. The cable is finished with a PVC - Polyvinyl Chloride jacket in Chrome and is rated 300 V with an operating temperature range of -20°C to +80°C.

Belden 9305 060 Key Features

• 4 twisted pairs with 22 AWG solid TC - Tinned Copper conductors for consistent signal wiring.
• Overall tape shield using Bi-Laminate (Alum+Poly) with 100% coverage.
• Includes a 22 AWG (7x30) TC drainwire to support shield termination.
• PVC - Polyvinyl Chloride jacket in Chrome.
• UL voltage rating: 300 V.
• Operating temperature: -20°C to +80°C.

Belden 9305 060 Applications

• Supports low voltage analog signals such as 4-20ma and 0-10v in control and instrumentation circuits.
• Handles low voltage digital control signals, including 24v digital control, where multi-pair signal routing is needed.
• Use it for line level audio signal runs where shielding helps reduce noise.
• Fits computer communication connections that require a shielded, multi-pair construction.
• Commonly used for panel wiring to organize and route multiple signal pairs within control enclosures.
