Belden 9305 060U1000 4-Pair 22 AWG Solid Beldfoil PVC Jacket
SKU:Belden 9305 060U1000
$3,760.00
● In stock
Description

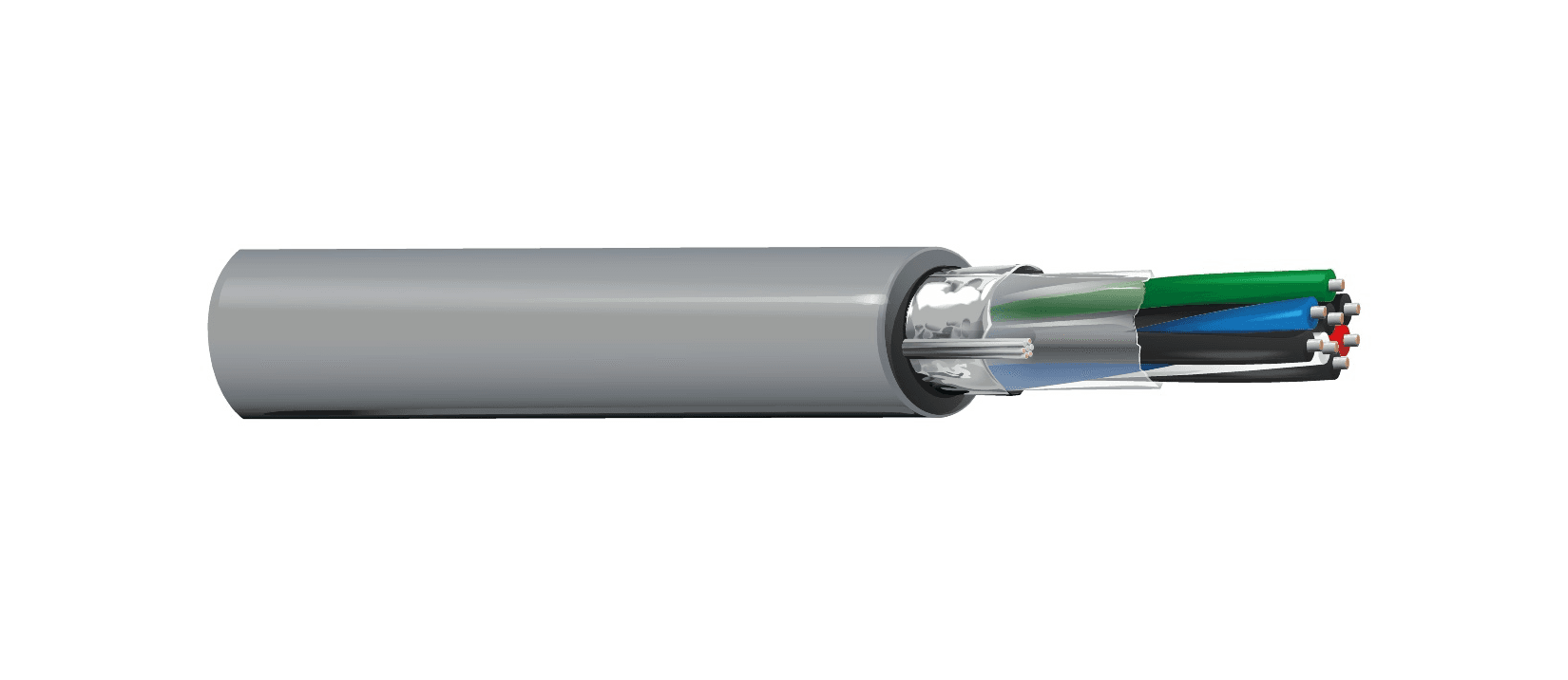

Belden 9305 060U1000 is an audio, control & instrument cable with 4-pair twisted pairs and 22 AWG solid tinned copper conductors. It includes an overall Beldfoil® shield (100% coverage) and a chrome PVC jacket.
Applications
- Use for audio, control, and instrument wiring where multiple twisted pairs are needed in a single cable.
- Choose for installations that benefit from an overall foil shield and drain wire for consistent shield termination.
- Specify when PVC insulation and a PVC jacket are required for the cable construction.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 4 Pairs |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Solid |
| Insulation Material | PVC - Polyvinyl Chloride |
| Shield Type | Overall Beldfoil + Drain Wire |
| Jacket Material | PVC - Polyvinyl Chloride |
| Conductor Material | Tinned Copper |
| Shield (Y N) | Yes |
| Approvals | Article 800, CMG |
| Item Type | Belden Multi-Pair Cable |
| Weight /LBS per 1000FT | 41 |
| Other Part Numbers | 9305 060U1000 UPC 612825227373 |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
