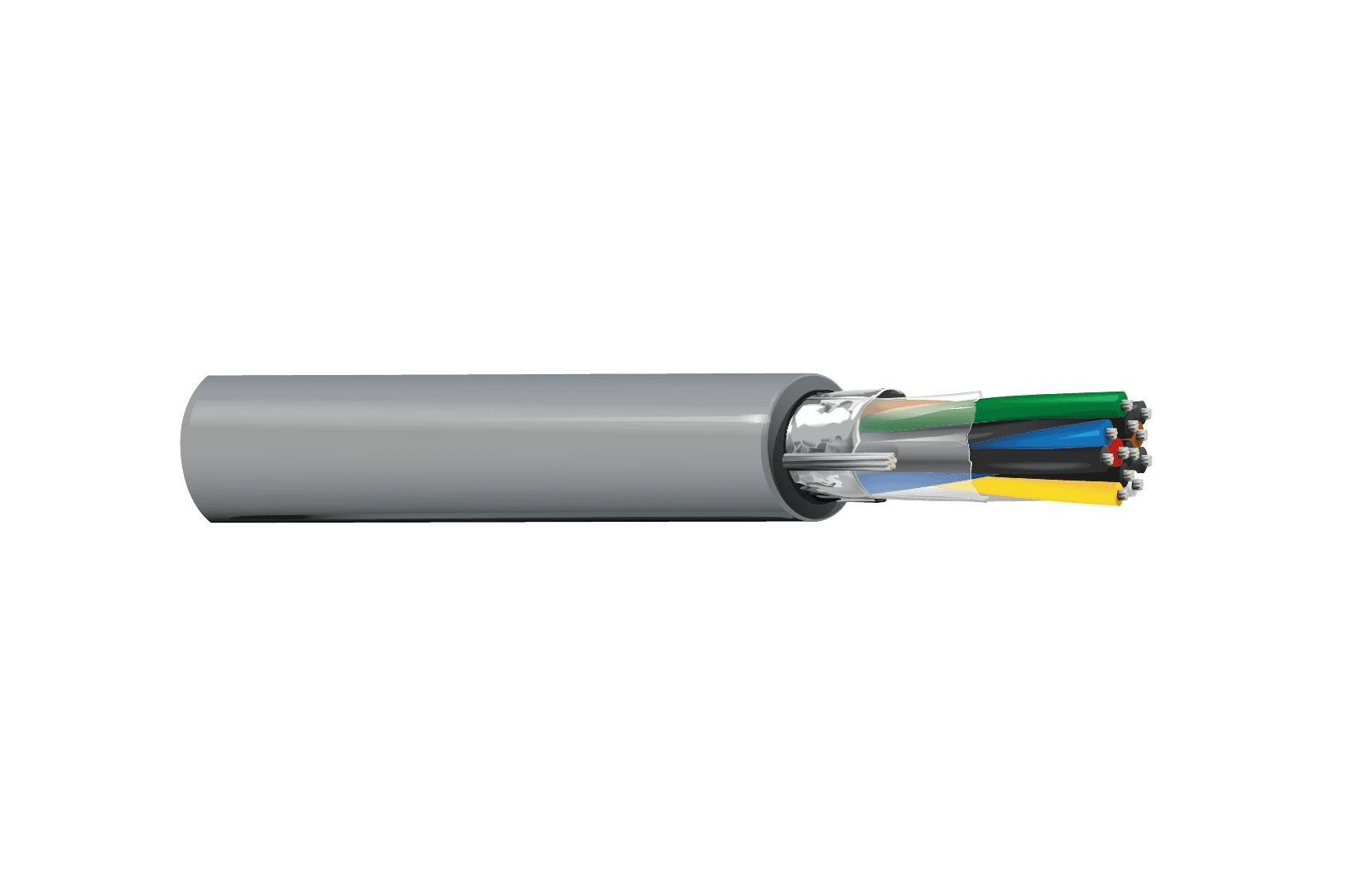

Belden 9306 060, Multi Conductor Cable 6C 22 AWG PR Shield PVC
SKU:Belden 9306 060
● In stock
Description
Belden 9306 060 is an audio, control & instrument cable with 22 AWG solid tinned copper conductors in twisted pairs, plus an overall Beldfoil® shield and a 22 AWG (7x30) TC drainwire. It features PVC insulation and a PVC jacket in Chrome for indoor installations. Key ratings include a UL Voltage Rating of 300 V and a UL temperature of 80°C, supporting control and signal wiring where shielding and consistent electrical performance are needed.
Belden 9306 060 Key Features
- 22 AWG solid tinned copper conductors arranged as twisted pairs for consistent signal wiring.
- Overall Beldfoil® tape shield with 100% coverage using Bi-Laminate (Alum+Poly) to help reduce noise pickup.
- Includes a 22 AWG (7x30) TC drainwire for shield termination.
- PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride jacket for indoor use.
- Rated UL Voltage Rating: 300 V and UL temperature: 80°C.
Belden 9306 060 Applications
- Supports low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation circuits.
- Handles low voltage digital control (24v, …) where shielded signal wiring is needed.
- Use it for line level audio signal runs.
- Specify it for computer communication connections where a shielded multi-pair cable is required.
- Install it for panel wiring in control enclosures and similar indoor installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 6 |
| Element type | pair(s) |
| Conductor size | 22 AWG |
| Conductor stranding | Solid |
| Conductor Material | TC - Tinned Copper |
| Insulation thickness (nom.) | 0.013 in (0.33 mm) |
| Insulation diameter (nom.) | 0.052 in (1.3 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Jacket thickness (nom.) | 0.032 in (0.81 mm) |
| Jacket diameter (nom.) | 0.315 in |
| Overall cable diameter (nom.) | 0.315 in |
| Jacket Color | Chrome |
| Bulk cable weight | 57 lbs/1000ft |
| Nom. conductor DCR | 20.6 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 35 pF/ft (110 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 50 pF/ft (160 pF/m) |
| Nom. inductance | 0.2 µH/ft (0.66 µH/m) |
| Max. current | 4.2 Amps per Conductor at 30ºC |
| Nom. outer shield DCR | 11.5 Ohm/1000ft (37.7 Ohm/km) |
| Operating temperature | -20°C to +80°C |
| Bend radius (stationary min.) | 3.15 in (80.0 mm) |
| Bend radius (installation min.) | 3.15 in |
| Max Pull Tension | 102 lbs (46.3 kg) |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | UL1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 9306 060100; 9306 060250; 9306 060500 UPC 612825227465; 9306 0601000 UPC 612825227458 |
| Priced Per | FT |
