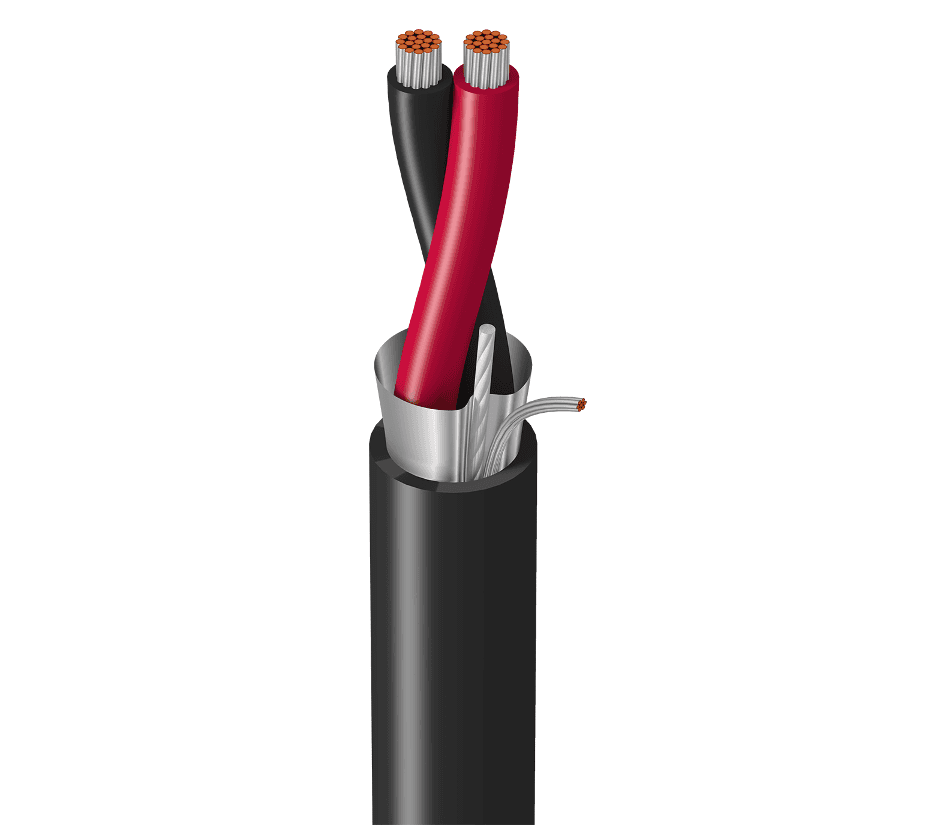

Belden 9318 060U, Power Limited Tray Cable 1 Pair 18 AWG 300V PVC, Chrome Jacket
SKU:Belden 9318 060U
● In stock
× 50 ft = Total: 50 ft
Description
Belden 9318 060U is an instrumentation PLTC cable designed for signal transmission in control and monitoring circuits. It features 1 pair 18 AWG (19x30) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and an overall Beldfoil® shield. This cable is rated 300 V (PLTC, CMG) and 105°C, and it includes a PVC - Polyvinyl Chloride outer jacket with a ripcord in Chrome.
Belden 9318 060U Key Features
- This instrumentation PLTC cable is intended for signal transmission in control and monitoring circuits.
- It uses 1 pair 18 AWG (19x30) TC - Tinned Copper conductors for instrumentation and control wiring.
- PVC - Polyvinyl Chloride insulation includes a Black, Red color code.
- An overall Beldfoil® shield supports noise rejection in signal circuits.
- It is rated 300 V (PLTC, CMG) and 105°C for specified electrical and temperature requirements.
- The PVC - Polyvinyl Chloride outer jacket includes a ripcord in Chrome for easier stripping.
Belden 9318 060U Applications
- Use it for instrumentation wiring where signal transmission is needed in control and monitoring circuits.
- Connect sensors in systems that require stable signal delivery.
- Wire valves in control setups where consistent signal performance is required.
- Support positioner connections used in monitoring and control circuits.
- Implement 4-20mA signal loops used for instrumentation and control signaling.
- Run 0-10V signal wiring used for monitoring and control applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 1 |
| Element type | pair(s) |
| Insulation thickness (nom.) | 0.019 in (0.48 mm) |
| Insulation diameter (nom.) | 0.081 in (2.1 mm) |
| Overall shield type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drain Wire | 20 AWG (19x32) TC |
| Jacket thickness (nom.) | 0.037 in (0.94 mm) |
| Overall cable diameter (nom.) | 0.239 in (6.07 mm) |
| Bulk cable weight | 32 lbs/1000ft |
| Conductor DCR (nom.) | 7.2 Ohm/1000ft |
| Outer shield DCR (nom) | 8.18 Ohm/1000ft (26.8 Ohm/km) |
| Capacitance, Cond-to-Cond (nom.) | 54 pF/ft (180 pF/m) |
| Capacitance Cond-to-Shield (nom.) | 100 pF/ft (330 pF/m) |
| Inductance (nom.) | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 5 Amps per Conductor at 25ºC |
| Operating temperature | -30°C to +105°C |
| Temperature table notes | AWM 80°C |
| Bend radius (stationary min.) | 2.4 in (61 mm) |
| Bend radius (installation min.) | 2.4 in (61 mm) |
| Max Pull Tension | 89 lbs (40 kg) |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
| Flammability / reaction to fire | UL 1685 UL Loading, FT4, T-29-520, IEEE 1202 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
