Belden 9333 060, Power Limited Tray Cable 11PR 22 AWG 300V PVC, Chrome Jacket
SKU:Belden 9333 060
● In stock
Description

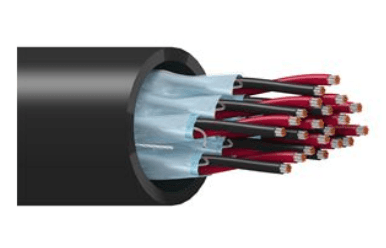

Belden 9333 060 is an instrumentation PLTC cable designed for signal transmission in control and monitoring circuits. It features 11 pair 22 AWG (7x30) TC - Tinned Copper stranded conductors with PVC - Polyvinyl Chloride insulation and an individual foil shield over each pair. The cable is rated 300 V and finished with a PVC - Polyvinyl Chloride outer jacket in Chrome. It supports indoor, outdoor, and sunlight resistance installations and meets UL1685 FT4 Loading, FT4, and IEEE 1202 FT4 flammability requirements.
Belden 9333 060 Key Features
- 11 pair construction supports multi-signal instrumentation and control wiring in a single run.
- 22 AWG (7x30) TC - Tinned Copper stranded conductors support consistent signal transmission.
- PVC - Polyvinyl Chloride insulation with Black & Red and numbered color code supports identification during termination.
- Individual foil shield over each pair with 100% coverage and a 22 AWG (7x30) TC drainwire helps reduce noise on each pair.
- 300 V UL voltage rating supports use in specified control and monitoring circuits.
- PVC - Polyvinyl Chloride outer jacket with ripcord and Chrome jacket color supports installation and identification.
- Environmental suitability includes indoor, outdoor, and sunlight resistance.
- Flammability / reaction to fire: UL1685 FT4 Loading, FT4, IEEE 1202 FT4.
Belden 9333 060 Applications
- Use in instrumentation circuits that require reliable signal transmission for control and monitoring.
- Support sensors that require a shielded pair construction to help reduce noise in signal wiring.
- Route signals for valves and positioners in control systems where multiple paired signals are run together.
- Carry 4-20mA signal runs in monitoring and control circuits.
- Handle 0-10V signal runs in monitoring and control circuits.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Element type | Pair(s) |
| Number of elements | 11 |
| Conductor Type | Stranded Conductor |
| Insulation thickness (nom.) | 0.017 in (0.43 mm) |
| Insulation diameter (nom.) | 0.062 in (1.6 mm) |
| Inner shield (pair) | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Outer shield | No Shield |
| Armor | No |
| Thermocouple | No |
| Jacket thickness (nom.) | 0.053 in (1.3 mm) |
| Overall cable diameter (nominal) | 0.592 in |
| Nom. diameter | 0.592 in |
| Bulk cable weight | 160 lbs/1000ft |
| Nom. conductor DCR | 17.2 Ohm/1000ft |
| Nom. inner shield DCR | 12.3 Ohm/1000ft (40.4 Ohm/km) |
| Nom. capacitance cond-to-cond | 26 pF/ft (85 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 45 pF/ft (150 pF/m) |
| Nom. inductance | 0.21 µH/ft (0.69 µH/m) |
| Max. current | 2.4 Amps per Conductor at 25ºC |
| UL temperature | UL: 105°C, AWM 2464: 80°C |
| Operating temperature | -20°C to +105°C |
| Bend radius (stationary min.) | 5.92 in (150 mm) |
| Bend radius (installation min.) | 5.92 in |
| Max Pull Tension | 300 lbs (140 kg) |
| NEC / UL compliance | Article 725, Article 727, Article 800 |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Other Part Numbers | 9333 060100; 9333 060250; 9333 060500 UPC 612825231189; 9333 0601000 UPC 612825231172 |
| Priced Per | FT |
