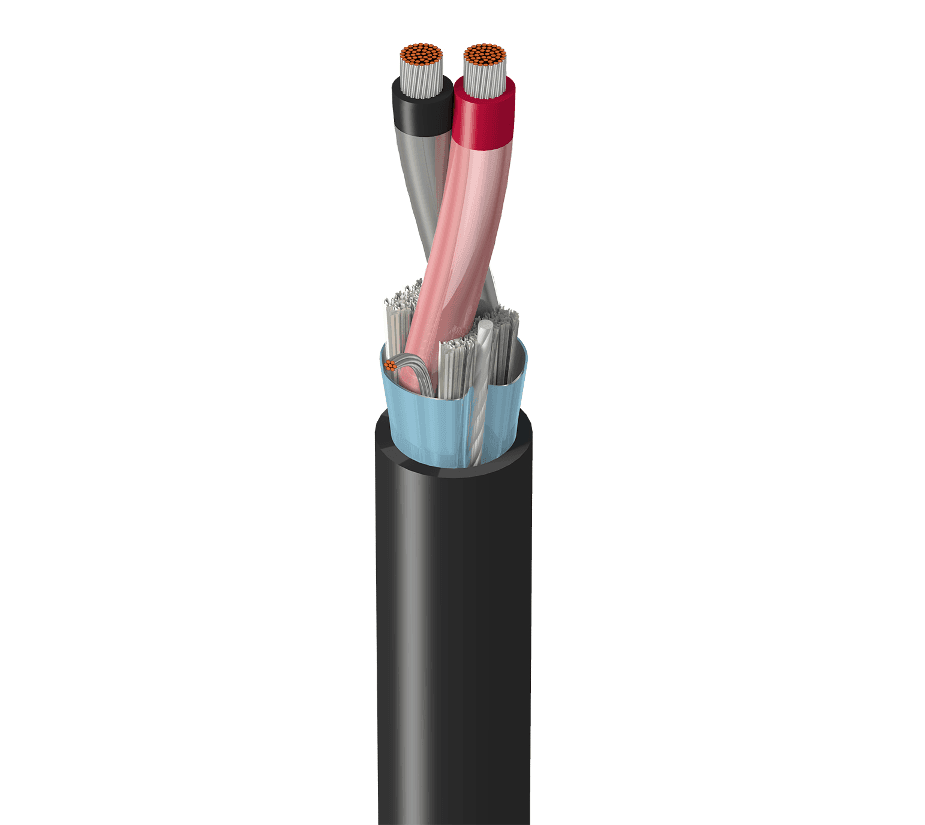

Belden 9343 010, Multi Conductor Tray Cable 2C 14 AWG Shielded PVC 600V, Black Jacket
SKU:Belden 9343 010
● In stock
× 50 ft = Total: 50 ft
Description
Belden 9343 010 is an instrumentation tray cable designed for signal transmission in industrial control and automation environments. It is built with 1 pair 14 AWG (42x30) TC - Tinned Copper conductors, PVC-NYL insulation, and an overall Beldfoil® shield. The cable uses a black PVC outer jacket with indoor/outdoor suitability, including sunlight resistance and burial. UL voltage rating is 600 V (TC), 150 V (NPLF).
Belden 9343 010 Key Features
- 1 pair 14 AWG (42x30) TC - Tinned Copper conductors for instrumentation and control signal wiring.
- PVC-NYL insulation with E2 color code for consistent conductor identification.
- Overall Beldfoil® shield (tape) with 100% coverage and bi-laminate (Alum+Poly) construction.
- 14 AWG (19x26) TC drainwire included with the overall shield.
- Black PVC outer jacket with indoor/outdoor suitability, including sunlight resistance and burial.
- Ripcord: Yes.
- UL voltage rating: 600 V (TC), 150 V (NPLF).
- UL temperature: 90°C Dry, 90°C Wet.
- Flammability / reaction to fire: UL 1685 UL Loading, IEEE 1202, FT4.
- NEC / UL compliance: Article 336, Article 760, NPLF, TC.
- European directive compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE).
- APAC compliance: China RoHS II (GB/T 26572-2011).
Belden 9343 010 Applications
- Use in industrial control and digital control wiring where shielded instrumentation cable is needed for consistent signal handling.
- Install in raceways, cable trays, and ducts for organized routing in control and automation systems.
- Support common instrument signals such as 4-20ma and 0-10v in instrumentation circuits.
- Apply in low voltage digital control (24v, …) circuits in control panels and related systems.
- Choose for encoders and other control circuits that benefit from an overall shielded construction.
- Deploy in distributed control system (DCS) and programmable logic controller (PLC) installations.
- Implement for control of solenoids, valves, actuators, positioners, and related field devices.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor DCR (nom.) | 2.6 Ohm/1000ft |
| Shield DCR (nom.) | 2.2 Ohm/1000ft (7.2 Ohm/km) |
| Capacitance, Cond-to-Cond (nom.) | 50 pF/ft (160 pF/m) |
| Capacitance, Cond-to-other (nom.) | 102 pF/ft (335 pF/m) |
| Inductance (nom.) | 0.18 µH/ft (0.59 µH/m) |
| Max. current | 8 Amps per Conductor at 25°C |
| Insulation thickness (nom.) | 0.023 in (0.58 mm) |
| Insulation diameter (nom.) | 0.119 in (3.02 mm) |
| Separator | Cotton Serve |
| Jacket thickness (nom.) | 0.048 in (1.2 mm) |
| Overall cable diameter (nom.) | 0.358 in (9.09 mm) |
| Armor | No |
| Bulk cable weight | 81 lbs/1000ft |
| Operating temperature | -30°C to +90°C Dry, 75°C wet |
| Bend radius (stationary min.) | 3.6 in (91 mm) |
| Bend radius (installation min.) | 3.6 in (91 mm) |
| Max Pull Tension | 154 lbs (69.9 kg) |
| Priced Per | FT |
