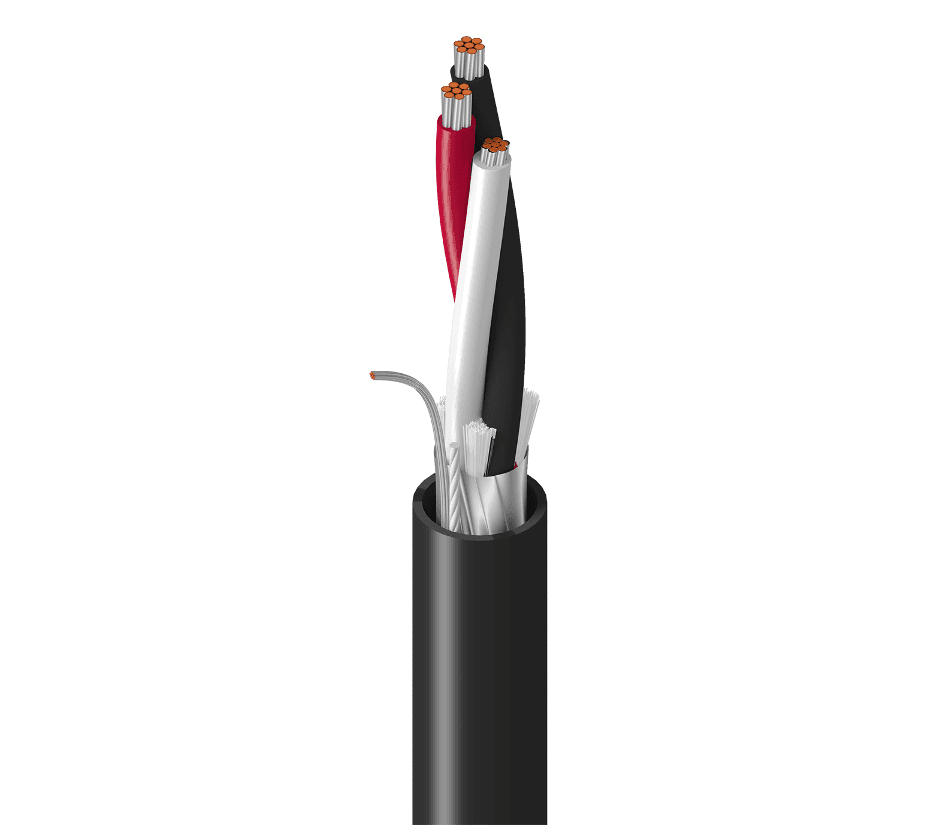

Belden 9363 060U, Power Limited Tray Cable 1 Triads 22 AWG 300V PVC, Chrome Jacket
SKU:Belden 9363 060U
$234.00
● In stock
× 100 ft = Total: 100 ft
Description
Belden 9363 060U is an instrumentation PLTC cable built with 1 triad 22 AWG (7x30) TC - Tinned Copper conductors and a tape shield with 100% coverage. It features PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket in Chrome. Key electrical and safety details include a UL Voltage Rating of 300 V (PLTC, CMG) and a UL temperature of 105°C.
Belden 9363 060U Key Features
- 1 triad 22 AWG (7x30) TC - Tinned Copper conductors for instrumentation wiring.
- Tape shield made from Bi-Laminate (Alum+Poly) with 100% coverage.
- 22 AWG (7x30) TC drainwire type for shield termination.
- PVC - Polyvinyl Chloride insulation with color code: Black, White, Red.
- PVC - Polyvinyl Chloride outer jacket with jacket color: Chrome.
- Ripcord: Yes for easier jacket removal.
- UL Voltage Rating: 300 V (PLTC, CMG).
- Environmental suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance.
Belden 9363 060U Applications
- Use in instrumentation circuits where consistent signal transmission is needed.
- Connect sensors, valves, and positioners in control and measurement systems.
- Support RTD wiring in monitoring and measurement setups.
- Handle signal applications including 4-20mA and 0-10V.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor element | Triad(s) |
| Number of elements | 1 |
| Conductor size | 22 AWG |
| Stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Armor | No |
| Shield | Yes - This has a Shield |
| Outer shield type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Nom. thickness (insulation) | 0.017 in (0.43 mm) |
| Nom. insulation diameter | 0.062 in (1.6 mm) |
| Nom. thickness (outer jacket) | 0.037 in (0.94 mm) |
| Nom. diameter (outer jacket) | 0.210 in (5.33 mm) |
| Overall cable diameter (nominal) | 0.210 in (5.33 mm) |
| Bulk cable weight | 24 lbs/1000ft |
| Nom. conductor DCR | 18.2 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 26 pF/ft (85 pF/m) |
| Nom. capacitance (Cond-to-Shield) | 45 pF/ft (150 pF/m) |
| Nom. inductance | 0.21 µH/ft (0.69 µH/m) |
| Max. current | 2.8 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 12.86 Ohm/1000ft (42.19 Ohm/km) |
| UL temperature | 105°C |
| Operating | -30°C to +105°C |
| Temperature table notes | AWM 80°C |
| Bend radius (stationary min.) | 2.1 in (53 mm) |
| Bend radius (installation min.) | 2.1 in (53 mm) |
| Max Pull Tension | 36 lbs (16 kg) |
| NEC / UL compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| Flammability / reaction to fire | UL 1685 UL Loading, FT4, T-29-520, IEEE 1202 |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
