Belden 9392 060, Power Limited Tray Cable 15PR 18 AWG 300V PVC, Chrome Jacket
SKU:Belden 9392 060
● In stock
Description

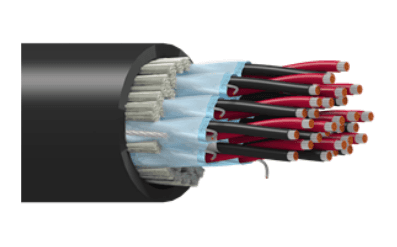

Belden 9392 060 is an instrumentation PLTC cable designed for signal transmission in control and monitoring systems. It features 15 pair 18 AWG (19x30) TC - Tinned Copper conductors with PVC - Polyvinyl Chloride insulation and an individual Beldfoil® shield on each pair. The cable is rated 300 V (PLTC) and finished with a PVC - Polyvinyl Chloride outer jacket in Chrome with a ripcord. Environmental suitability includes Indoor, Outdoor, Sunlight Resistance, and Burial.
Belden 9392 060 Key Features
- 15 pair construction supports multi-signal instrumentation and control wiring in a single run.
- 18 AWG (19x30) TC - Tinned Copper conductors provide consistent conductor build and identification.
- Individual Beldfoil® shielding on each pair uses tape shielding with 100% coverage to help reduce noise between pairs.
- 300 V (PLTC) UL voltage rating supports PLTC installations.
- PVC - Polyvinyl Chloride outer jacket in Chrome includes a ripcord for easier jacket removal during termination.
Belden 9392 060 Applications
- Use in instrumentation installations requiring reliable signal transmission in control and monitoring systems.
- Support sensors that require shielded pair wiring to help manage noise in signal runs.
- Route multiple signal pairs to valves in control and monitoring systems.
- Serve positioners in instrumentation and control setups that benefit from individually shielded pairs.
- Carry 4-20mA signal loops in control and monitoring systems.
- Handle 0-10V signal wiring in instrumentation and monitoring applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of elements | 15 |
| Element type | pair(s) |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation nominal thickness | 0.016 in (0.41 mm) |
| Insulation nominal diameter | 0.078 in (2.0 mm) |
| Color Code | Black, Red and Numbered |
| Shielding | Yes - this has a shield |
| Inner shield element | Each pair |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 20 AWG (19x32) TC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket nominal thickness | 0.063 in (1.6 mm) |
| Nominal diameter | 0.803 in |
| Ripcord | Yes |
| Armor | No |
| Nom. conductor DCR | 7.19 Ohm/1000ft |
| Nom. inner shield DCR | 0.5 Ohm/1000ft (1.6 Ohm/km) |
| Nom. capacitance cond-to-cond | 61 pF/ft (200 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 112 pF/ft (367 pF/m) |
| Nom. inductance | 0.18 µH/ft (0.59 µH/m) |
| Max. current | 7 Amps per Conductor at 25ºC |
| UL temperature | 105°C |
| Operating | -30°C To +105°C |
| Max Pull Tension | 966 lbs (438 kg) |
| Bulk cable weight | 368 lbs/1000ft |
| Environmental suitability | Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / reaction to fire | UL 1685 FT4 loading, FT4, IEEE 1202 FT4 |
| NEC / UL compliance | Article 725, Article 727, Article 800 |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Instrumentation Cable |
| Other Part Numbers | 9392 060100; 9392 060250; 9392 060500; 9392 0601000 UPC 612825239871 |
| Priced Per | FT |
