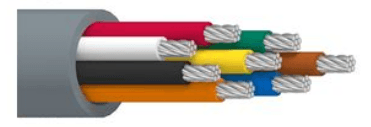

Belden 9421 060, Multi Conductor Cable 8C 22 AWG PVC, Chrome Jacket
SKU:Belden 9421 060
$327.60
● In stock
Description
Belden 9421 060 is an 8 conductor multi-conductor cable with 22 AWG (7x30) TC - Tinned Copper conductors, plus PVC - Polyvinyl Chloride insulation and jacket. It features a Chrome jacket and a 0.229 in (5.82 mm) nominal overall diameter for clean routing in indoor installations. Electrical ratings include 300 V (CMG), 150 V (UL AWM 2576), and a max. current of 2.1 Amps per conductor at 25ºC.
Belden 9421 060 Key Features
- 8 conductor construction with 22 AWG conductors for multi-conductor signal and control wiring.
- 7x30 stranding with TC - Tinned Copper conductors.
- PVC - Polyvinyl Chloride insulation and PVC - Polyvinyl Chloride outer jacket.
- Chrome jacket color with a 0.229 in (5.82 mm) nominal overall diameter.
- Rated 300 V (CMG) and 150 V (UL AWM 2576), with 2.1 Amps per conductor at 25ºC.
Belden 9421 060 Applications
- Supports low voltage analog signals (4-20ma, 0-10v, ...) in instrumentation and signal wiring runs.
- Enables low voltage control (24v, …) connections for control circuits and related wiring needs.
- Routes line level audio signals where multi-conductor wiring is required.
- Fits voice communications wiring in indoor environments.
- Serves panel wiring where organized multi-conductor terminations are needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Nom. conductor DCR | 15.6 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 34 pF/ft (110 pF/m) |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Insulation nominal thickness | 0.011 in (0.28 mm) |
| Insulation nominal diameter | 0.050 in (1.3 mm) |
| Insulation color code | Black, White, Red, Green, Brown, Blue, Orange, Yellow |
| Outer jacket nominal thickness | 0.032 in (0.81 mm) |
| Bulk cable weight | 33 lbs/1000ft |
| UL temperature | 80°C |
| Operating temperature | -20°C to +80°C |
| Stationary min. bend radius | 2.3 in (58 mm) |
| Installation min. bend radius | 2.3 in (58 mm) |
| Max Pull Tension | 73 lbs (33 kg) |
| Environmental suitability | Indoor (Not Riser or Plenum), Indoor |
| NEC / UL compliance | Article 800, CMG |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2576 |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 9421 060100 UPC 612825244257; 9421 060250; 9421 060500; 9421 0601000 UPC 612825244264; 9421 0605000 UPC 612825244288 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
