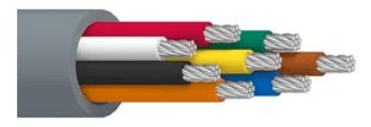

Belden 9421 060U, Multi Conductor Cable 8C 22 AWG PVC, Chrome Jacket
SKU:Belden 9421 060U1000
● In stock
Description
Belden 9421 060U is an 8 conductor 22 AWG multi-conductor cable with stranded (7x30) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket in Chrome. It is rated CMG and has a UL Voltage Rating of 300 V (CMG), 150 V (UL AWM 2576). The cable has a nominal overall cable diameter (nominal) of 0.229 in (5.82 mm) and is unshielded (Shield: No). Operating temperature is -20°C to +80°C, with UL temperature of 80°C.
Belden 9421 060U Key Features
- 8 conductor 22 AWG multi-conductor cable with stranded (7x30) TC - Tinned Copper conductors.
- PVC - Polyvinyl Chloride insulation and PVC - Polyvinyl Chloride outer jacket; jacket color: Chrome.
- Unshielded design (Shield: No).
- UL Voltage Rating: 300 V (CMG), 150 V (UL AWM 2576).
- CMG rating with NEC / UL compliance: Article 800, CMG and CEC / C(UL) compliance: CMG.
Belden 9421 060U Applications
- Use it for low voltage analog signals (4-20ma, 0-10v, ...) where consistent signal transmission is needed.
- Support low voltage control (24v, …) in control and wiring setups.
- Choose it for line level audio connections.
- Install it for voice communications wiring.
- Apply it for panel wiring in indoor installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor Material | TC - Tinned Copper |
| Conductor stranding | 7x30 |
| Insulation nominal thickness | 0.011 in (0.28 mm) |
| Insulation nominal diameter | 0.050 in (1.3 mm) |
| Insulation color code | Black, White, Red, Green, Brown, Blue, Orange, Yellow |
| Outer jacket nominal thickness | 0.032 in (0.81 mm) |
| Nom. conductor DCR | 15.6 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 34 pF/ft (110 pF/m) |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 2.1 Amps per Conductor at 25ºC |
| Overall cable diameter (nominal) | 0.229 in (5.82 mm) |
| Bulk cable weight | 33 lbs/1000ft |
| UL temperature | 80°C |
| Operating temperature | -20°C to +80°C |
| Bend radius (stationary min.) | 2.3 in (58 mm) |
| Bend radius (installation min.) | 2.3 in (58 mm) |
| Max Pull Tension | 73 lbs (33 kg) |
| Environmental suitability | Indoor (Not Riser or Plenum), Indoor |
| AWM compliance | AWM 2576 |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 9421 060U1000 UPC 612825244233 |
| Priced Per | FT |
