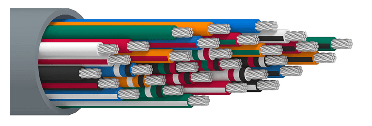

Belden 9432 060, Multi Conductor Cable 30C 22 AWG PVC, Chrome Jacket
SKU:Belden 9432 060
● In stock
Description
Belden 9432 060 is a 30-conductor multi-conductor cable built with 22 AWG (7x30) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket in Chrome. It is rated 300 V (CMG) and 150 V (UL AWM 2576) and is intended for indoor (not riser or plenum) environments. Electrical characteristics include 15.6 Ohm/1000ft nominal conductor DCR and 34 pF/ft (110 pF/m) nominal capacitance cond-to-cond.
Belden 9432 060 Key Features
- 30 conductors with 22 AWG (7x30) TC - Tinned Copper stranding for multi-conductor signal and control wiring.
- PVC - Polyvinyl Chloride insulation and a PVC - Polyvinyl Chloride outer jacket with a Chrome jacket color.
- Voltage ratings: 300 V (CMG) and 150 V (UL AWM 2576).
- Indoor (not riser or plenum) environmental suitability.
- Nominal conductor DCR: 15.6 Ohm/1000ft.
- Nominal capacitance cond-to-cond: 34 pF/ft (110 pF/m).
Belden 9432 060 Applications
- Support low voltage analog signals (4-20ma, 0-10v, ...) in signal and control wiring setups.
- Use in low voltage control (24v, …) where multi-conductor runs are needed for control circuits.
- Connect line level audio where multi-conductor wiring is required.
- Run voice communications wiring in indoor installations.
- Meet panel wiring needs where multiple conductors are routed and terminated within control panels.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor Material | TC - Tinned Copper |
| Insulation nominal thickness | 0.011 in (0.28 mm) |
| Insulation nominal diameter | 0.050 in (1.3 mm) |
| Outer jacket nominal thickness | 0.040 in (1.0 mm) |
| Overall cable diameter (nominal) | 0.400 in (10.2 mm) |
| Shield | No |
| Conductor color code | Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes, Orange/Black/White Stripes, Blue/Black/White Stripes, Black/Red/Green Stripes, White/Red/Green Stripes, Red/Black/Green Stripes |
| Bulk cable weight | 115 lbs/1000ft |
| Nominal inductance | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 1.5 Amps per conductor at 25ºC |
| UL temperature | 80°C |
| Operating temperature | -20°C to +80°C |
| Bend radius (stationary min.) | 4.0 in (100 mm) |
| Bend radius (installation min.) | 4.0 in (100 mm) |
| Max Pull Tension | 273 lbs (124 kg) |
| NEC / UL compliance | Article 800, CMG |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2576 |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 9432 060100 UPC 612825245643; 9432 060250; 9432 060500 UPC 612825245667; 9432 0601000 UPC 612825245650 |
| Priced Per | FT |
