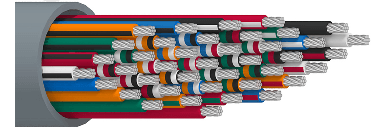

Belden 9433 060, Multi Conductor Cable 40C 22 AWG PVC PVC, Chrome Jacket
SKU:Belden 9433 060
$2,383.20
● In stock
Description
Belden 9433 060 is a 40 conductor, 22 AWG multi-conductor cable with stranded (7x30) tinned copper conductors, PVC insulation, and a PVC outer jacket in Chrome. It is rated 300 V (CMG), 150 V (UL AWM 2576) and meets CMG requirements for indoor use where riser or plenum ratings are not required. Electrical performance includes 15.6 Ohm/1000ft DCR and 34 pF/ft (110 pF/m) capacitance cond-to-cond.
Belden 9433 060 Key Features
- 40 conductor, 22 AWG multi-conductor cable for organized multi-circuit signal and control wiring.
- Stranded (7x30) tinned copper conductors for flexible handling and consistent conductivity.
- PVC insulation and a PVC outer jacket in Chrome for a durable, easy-to-identify cable build.
- UL voltage rating: 300 V (CMG), 150 V (UL AWM 2576).
- Meets CMG requirements for indoor use where riser or plenum ratings are not required.
- Electrical performance includes 15.6 Ohm/1000ft DCR and 34 pF/ft (110 pF/m) capacitance cond-to-cond.
Belden 9433 060 Applications
- Support low voltage analog signals (4-20ma, 0-10v, ...) in signal and control wiring where stable transmission is needed.
- Use in low voltage control (24v, …) circuits for control panels and related wiring layouts.
- Route line level audio connections where multi-conductor wiring is required.
- Install for voice communications wiring in indoor environments.
- Meet panel wiring needs when multiple conductors are routed together for organized terminations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Shield | No |
| Insulation nominal thickness | 0.011 in (0.28 mm) |
| Insulation nominal diameter | 0.050 in (1.3 mm) |
| Outer jacket nominal thickness | 0.040 in (1.0 mm) |
| Overall cable diameter (nominal) | 0.455 in (11.6 mm) |
| Conductor color code | Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes, Orange/Black/White Stripes, Blue/Black/White Stripes, Black/Red/Green Stripes, White/Red/Green Stripes, Red/Black/Green Stripes, Green/Black/Orange Stripes, Orange/Black/Green Stripes, Blue/White/Orange Stripes, Black/White/Orange Stripes, White/Red/Orange Stripes, Orange/White/Blue Stripes, White/Red/Blue Stripes, Black/White/Green Stripes, White/Black/Green Stripes, Red/White/Green Stripes |
| Bulk cable weight | 151 lbs/1000ft |
| Nominal inductance | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 1.2 Amps per Conductor at 25ºC |
| Operating temperature | -20°C to +80°C |
| UL temperature | 80°C |
| Stationary minimum bend radius | 4.6 in (120 mm) |
| Installation minimum bend radius | 4.6 in (120 mm) |
| Max Pull Tension | 364 lbs (165 kg) |
| Environmental suitability | Indoor (Not Riser or Plenum), Indoor |
| NEC / UL compliance | Article 800, CMG |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2576 |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU Directive 2011/65/EU (RoHS 2) |
| UK regulation compliance | UKCA Mark |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 9433 060100 UPC 612825245773; 9433 060250; 9433 060500 UPC 612825245803; 9433 0601000 UPC 612825245780; 9433 0603000 UPC 612825245797; 9433 0605000 UPC 612825245810 |
| Priced Per | FT |
