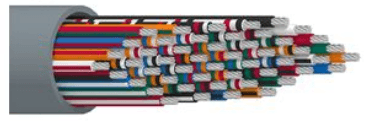

Belden 9434 060, Multi Conductor Cable 50C 22 AWG PVC, Chrome Jacket
Description
Belden 9434 060 is a 50 conductor multi conductor cable built with 22 AWG stranded (7x30) TC - tinned copper conductors and a PVC - Polyvinyl Chloride outer jacket in Chrome. It uses PVC - Polyvinyl Chloride insulation and is rated 300 V (CMG), 150 V (UL AWM 2576). Electrical characteristics include 15.6 Ohm/1000ft nominal conductor DCR, 34 pF/ft (110 pF/m) nominal capacitance cond-to-cond, and 0.17 μH/ft (0.56 μH/m) nominal inductance. It supports 1.2 Amps per conductor at 25ºC and is specified for Indoor (Not Riser or Plenum), Indoor environments.
Belden 9434 060 Key Features
- 50 conductor multi conductor cable with 22 AWG stranded (7x30) TC - tinned copper conductors.
- PVC - Polyvinyl Chloride insulation with a PVC - Polyvinyl Chloride outer jacket in Chrome.
- Voltage ratings: 300 V (CMG), 150 V (UL AWM 2576).
- Nominal electrical performance: 15.6 Ohm/1000ft DCR, 34 pF/ft (110 pF/m) capacitance cond-to-cond, and 0.17 μH/ft (0.56 μH/m) inductance.
- Max. current: 1.2 Amps per conductor at 25ºC.
- Environmental suitability: Indoor (Not Riser or Plenum), Indoor.
Belden 9434 060 Applications
- Use it for low voltage analog signals such as 4-20ma and 0-10v.
- For low voltage control circuits, it supports applications such as 24v.
- It is suitable for line level audio signal wiring.
- In voice communications wiring, it is commonly used.
- For panel wiring, it is a practical choice.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation nominal thickness | 0.011 in (0.28 mm) |
| Insulation nominal diameter | 0.050 in (1.3 mm) |
| Outer jacket nominal thickness | 0.045 in (1.1 mm) |
| Overall cable diameter (nominal) | 0.500 in (12.7 mm) |
| Shield | No |
| Bulk cable weight | 187 lbs/1000ft |
| UL temperature | 80°C |
| Operating temperature | -20°C to +80°C |
| Bend radius (stationary min.) | 5.0 in (130 mm) |
| Bend radius (installation min.) | 5.0 in (130 mm) |
| Max Pull Tension | 455 lbs (206 kg) |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| NEC / UL compliance | Article 800, CMG |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2576 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Insulation color code | Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes, Orange/Black/White Stripes, Blue/Black/White Stripes, Black/Red/Green Stripes, White/Red/Green Stripes, Red/Black/Green Stripes, Green/Black/Orange Stripes, Orange/Black/Green Stripes, Blue/White/Orange Stripes, Black/White/Orange Stripes, White/Red/Orange Stripes, Orange/White/Blue Stripes, White/Red/Blue Stripes, Black/White/Green Stripes, White/Black/Green Stripes, Red/White/Green Stripes, Green/White/Blue Stripes, Orange/Red/Green Stripes, Blue/Red/Green Stripes, Black/White/Blue Stripes, White/Black/Blue Stripes, Red/White/Blue Stripes, Green/Orange/Red Stripes, Orange/Red/Blue Stripes, Blue/Orange/Red Stripes, Black/Orange/Red Stripes |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 9434 060100; 9434 060250; 9434 060500 UPC 612825245940; 9434 0601000 UPC 612825245933 |
| Priced Per | FT |
